CBSE Class 12 Chemistry Coordination Chemistry Important Questions and Answers

Answer the following questions:

1. Write the IUPAC names for the following complexes.

i) Na2[Ni (EDTA )]               - Sodium 2,2’,2’’,2’’’-(ethane-1,2-diyldinitrilo)tetraacetatoNickelate(II)
ii) [Ag (CN)2]-                    -dicyanidoargentate(I) ion
iii) [Co (en)3]2(SO4)3         -tris(ethane1,2-diamine)cobalt(III)sulphate
iv) [Co (ONO) (NH3)5]2+  -pentaamminenitrito-K-O-cobalt(III)ion
v) Pt (NH3)2Cl(NO2)]        -diamminechloridonitrito- K-N-platinum(II)

2. Write the formula for the following coordination compounds.

a) potassiumhexacyanidoferrate(II)                       – K4[Fe(CN)6]
b) pentacarbonyliron(0)                                        - [Fe(CO)5]
c) pentaamminenitrito- K -N-cobalt(III)ion             – [Co(NH3)5(NO2)]2+
d) hexaamminecobalt(III)sulphate                         - [Co(NH3)6]2(SO4)3
e) sodiumtetrafluoridodihydroxidochromate(III)      –Na3[CrF4(OH)2]

3. Arrange the following in order of increasing molar conductivity

i) Mg [Cr(NH3)(Cl)5]
ii) [Cr(NH3)5Cl]3[CoF6]2
iii) [Cr(NH3)3Cl3]
On ionisaton

i) Mg [Cr(NH3)(Cl)5]→ Mg2+ + [Cr(NH3)(Cl)5]2-
ii) [Cr(NH3)5Cl]3[CoF6]2→3[Cr(NH3)5Cl]2+ + 2[CoF6]3-
iii) [Cr(NH3)3Cl3] → does not ionize
As the number of ions in solution increases, their molar conductivity also increases.
Therefore [Cr(NH3)3Cl3]<Mg [Cr(NH3)(Cl)5]<[Cr(NH3)5Cl]3[CoF6]2

4. Ni2+ is identified using alcoholic solution of dimethyl glyoxime. Write the structural formula for the rosy red precipitate of a complex formed in the reaction.
Complex : [Ni(DMG)2] Rosy red

5. [CuCl4]2-exists while [CuI4]2-does not exist why?
Both the species contains Cu2+ ions

COORDINATION CHEMISTRY 5 Reaction

6. Calculate the ratio of
COORDINATION CHEMISTRY 5 Reaction 1

 in 0.2 M solution of NH3. If the stability constant for the complex [Ag(NH3)2]+ is 1.7 X 107.
COORDINATION CHEMISTRY 5 Reaction 2


7. Give an example of coordination compound used in medicine and two examples of biologically important coordination compounds.
Coordination compound used in medicine:

 COORDINATION CHEMISTRY 5 Table

Biologically important coordination compounds:

COORDINATION CHEMISTRY 5 Table2


8. Based on VB theory explain why [Cr(NH3)6]3+ is paramagnetic, while [Ni(CN)4]2- is diamagnetic.
COORDINATION CHEMISTRY 5 Table3

9. Draw all possible geometrical isomers of the complex [Co(en)2Cl2]+and identify the optically active isomer.
COORDINATION CHEMISTRY 5 Image

10. [Ti(H2O)6]3+ is coloured, while [Sc(H2O)6]3+ is colourless- explain.

COORDINATION CHEMISTRY 5 Table4

11. Give an example for complex of the type. [Ma2b2c2] where a, b, c are monodentate ligands and give the possible isomers.
[PdI2(ONO)2(H2O)2] Diaquadiiododinitrito-K -O Palladium (IV)
[PdI2(NO2)(H2O)2] Diaquadiiododinitrito-K -N palladium (IV)
They will exhibit linkage isomerism

12. Give one test to differentiate [Co(NH3)5Cl]SO4 and [Co(NH3)5 SO4]Cl.
COORDINATION CHEMISTRY 5 Table5

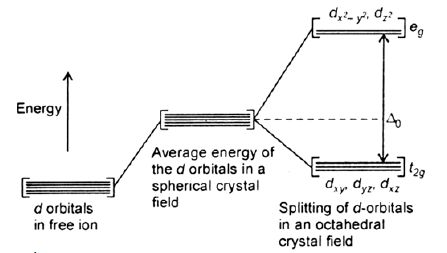

13. In an octahedral crystal field, draw the figure to show splitting of d orbitals.
The energy of the orbitals dx2-y2and dz2(represented as eg orbitals) will increase by
COORDINATION CHEMISTRY 5 Image1
while that of the other three orbitalsdxy, dyzanddzx( represented as t2g orbitals ) decrease by

COORDINATION CHEMISTRY 5 Image2



represents the crystal field splitting energy in the octahedral field.

COORDINATION CHEMISTRY 5 Image3

14. What is linkage isomerism? Explain with an example.
This type of isomers arises when an ambidentate ligand is bonded to the central metal atom/ion through either of its two different donor atoms.(-NO2/-ONO-)
Example :
COORDINATION CHEMISTRY 5 Reaction 3

15. Write briefly about the applications of coordination compounds in volumetric analysis.
Complexometric Titrations:
An example of this is the use of EDTA in the volumetric determination of a wide variety of metal ions in solution, e.g. Zn2+, Pb2+,Ca2+,Co2+,Ni2+,Cu2+, etc. By careful adjustment of the pH and using suitable indicators, mixtures of metals can be analysed, e.g. Bi3+ in the presence of Pb2+. Alternatively, EDTA may be used as a masking agent to remove a metal ion which would interfere with the analysis of a second metal ion present.

16. Classify the following ligand based on the number of donor atoms.
a) NH3
b) en
c) ox2-
d) triaminotriethylamine
e) pyridine

COORDINATION CHEMISTRY 5 Table6

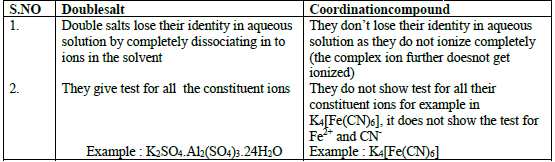

17. Give the difference between double salts and coordination compounds.

COORDINATION CHEMISTRY 5 Table7

18. Write the postulates of Werner’s theory.

1. Most of the elements exhibit, two types of valence.
• Primary valence
• Secondary valence
2. Primary valence is referred as the oxidation state of the metal atom and the Secondary valence as the coordination number.
3. The primary valence of a metal ion is positive in most of the cases and zero in certain cases. They are always satisfied by negative ions.
4. The secondary valence is satisfied by negative ions, neutral molecules, positive ions or the combination of these.
5. According to Werner, there are two spheres of attraction around a metal atom/ion in a complex.
      • The inner sphere is known as coordination sphere.
      • The outer sphere is called ionisation sphere.
6. The primary valences - non-directional
the secondary valences - directional.
7. The geometry of the complex is determined by the spacial arrangement of the groups which satisfy the secondary valence.
     Six - octahedral geometry.
     Four -either tetrahedral or square planar geometry.

COORDINATION CHEMISTRY 5 Image4

19. [Ni(CN)4]2- is diamagnetic, while [Ni(Cl)4]2- is paramagnetic using crystal field theory?
Square planar geometry of [Ni(CN)4]2-experience undergo Jahn Teller Distortion
COORDINATION CHEMISTRY 5 Image5
Jahn Teller distrotion
The d orbitals fill with 8 electrons, then, with a low spin configuration. The even number of d orbitals will get filled (dyz,dxz,dz2,dxy) with an even number of 3d electrons.
This gives rise to a diamagnetic configuration,as expected.

[NiCl4]2−:

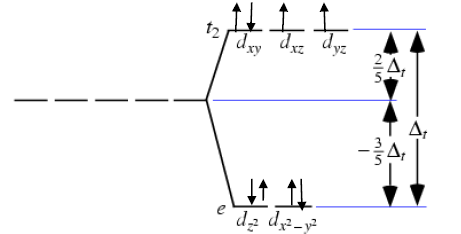

Splitting in the tetrahedral field

COORDINATION CHEMISTRY 5 Image6

The d orbitals here fill with 8 electrons, but instead, high spin. So, the dz2 and dx2−yfill with one electron each, then the dxy, dxz, and dyz with one electron each, and then pairing occurs only after that, filling the dz2, dx2−y2, and dxy completely. This leaves two unpaired electrons in the t2 orbitals, and thus this complex is paramagnetic with two unpaired electrons, as expected.

20. Why tetrahedral complexes do not exhibit geometrical isomerism.
• All the four ligands are adjacent or equidistant to one another in tetrahedral complex.
• As the relative positions of donor atoms of ligands attached to the central atom are same with respect to each other.

21. Explain optical isomerism in coordination compounds with an example.
Optical Isomerism
• Coordination compounds which possess chirality exhibit optical isomerism.
• The pair of two optically active isomers which are mirror images of each other are called enantiomers.
• Their solutions rotate the plane of the plane polarised light either clockwise or anticlockwise and the corresponding isomers are called 'd' (dextro rotatory) and 'l' (levo rotatory) forms respectively.
• The octahedral complexes of type [M(xx)3] , [M(xx)2AB] and [M(xx)2B2] exhibit optical isomerism.
Example:
 COORDINATION CHEMISTRY 5 Image7

22. What are hydrate isomers? Explain with an example.
The exchange water molecules in the crystal lattice with a ligand in the coordination entity will give different isomers. These type of isomers are called hydrate isomers.
Example :
CrCl3.6H2O has three hydrate isomers as shown below.
COORDINATION CHEMISTRY 5 Table8

23. What is crystal field splitting energy?

The splitting of five d-orbitals of the metal ion in the presence of ligand field into two sets having different energies is called crystal field splitting or energy level splitting. The difference in the energy of the two sets is called crystal field splitting energy.

24. What is crystal field stabilization energy (CFSE) ?
The crystal field stabilization energy is defined as the energy difference of electronic configurations in the ligand filed (ELF) and the isotropic field/barycentre (Eiso).
COORDINATION CHEMISTRY 5 Image8
negis number of electrons in eg orbitals
npis number of electron pairs in the ligand field
n'pis the number of electron pairs in the isotropic field (barycentre).

25. Discuss briefly the nature of bonding in metal carbonyls.
In metal carbonyls, the bond between metal atom and the carbonyl ligand consists of two components.
• An electron pair donation from the carbon atom of carbonyl ligand into a vacant d-orbital of central metal atom.
                                                      σ
• This electron pair donation forms M←CO sigma bond.
This sigma bond formation increases the electron density in metal d orbitals and makes the metal electron rich.

In order to compensate for this increased electron density, a filled metal d-orbital interacts with the empty π* orbital on the carbonyl ligand and transfers the added electron density back to the ligand. This second component is called π-back bonding .

Thus in metal carbonyls, electron density moves from ligand to metal through sigma bonding and from metal to ligand through pi bonding, this synergic effect accounts for strong
M ←CObond in metal carbonyls.

26. What is the coordination entity formed when excess of liquid ammonia is added to an aqueous solution copper sulphate?
When excess of liquid ammonia is added to an aqueous solution of copper sulphate it gives tetraammine copper (II) sulphate.
CuSO4 + 4NH3→ [Cu(NH3)4]SO4
So, the coordination entity is : [Cu(NH3)4]2+

27. On the basis of VB theory explain the nature of bonding in [Co(C2O4)3]3-

COORDINATION CHEMISTRY 5 Table8

28. What are the limitations of VB theory?
1. It does not explain the colour of the complex
2. It considers only the spin only magnetic moments and does not consider the other components of magnetic moments.
3. It does not provide a quantitative explanation as to why certain complexes are inner orbital complexes and the others are outer orbital complexes for the same metal. For example, [Fe(CN)6]4- is diamagnetic (low spin) whereas [FeF6]4- is paramagnetic (high spin).

29. Write the oxidation state, coordination number , nature of ligand, magnetic property and electronic configuration in octahedral crystal field for the complex K4[Mn(CN)6].
COORDINATION CHEMISTRY 5 Table9

EVALUVATE YOURSELF

1. When a cooridantion compound CrCl3.4H2O is mixed with silver nitrate solution, one mole of silver chloride is precipitated per mole of the compound. There are no free solvent molecules in that compound. Assign the secondary valence to the metal and write the structural formula of the compound.
One mole of silver chloride is formed therefore there is one ionizable chloride ion Cl- (counter ion)
There are no free solvent molecules therefore all the water molecules are coordinated
Hence, the coordination compound is [Cr(H2O)4Cl2]Cl
Secondary valency is 6

2. In the complex, [Pt (NO2)(H2O)(NH3)2]Br. identify the following

(i) Central metal atom/ion                                          Pt2+
(ii) Ligands and their types                                         NO2 is negative ligand, H2O and NH3 neutral monodentate ligand
(iii) Coordiantion entity                                              [Pt (NO2)(H2O)(NH3)2]+1
(iv) Oxidation number of central metal atom                2+
(v) Coordination number                                            4

3. Write the IUPAC name for the following compounds.

(i) K2[Fe(CN)3(Cl)2(NH3)]                                              - Potassium amminedichloridotricyanidoFerrate(III)
(ii) [Cr(CN)2(H2O)4][Co(ox)2(en)]                                  -  Tetraaquadicyanidochromium(III)(ethane1,2-diamine)di(oxalato) cobaltate(III)
(iii) [Cu(NH3)2Cl2]                                                        - diamminedichloridocopper(II)
(iv) [Cr(NH3)3(NC)2(H2O)]+                                          -  triammineaquadicyandio-K -N-chromium(III) ion
(v) [Fe(CN)6]4-                                                            - Hexacyanidoferrate(II) ion

4. Give the structure for the following compounds.

(i) diamminesilver(I) dicyanidoargentate(I)                         - [Ag(NH3)2][Ag(CN)2]
(ii) pentamminenirtrito-K -Ncobalt(III) ion                          – [Co(NH3)5NO2]+2
(iii) hexafluoridocobaltate(III) ion                                       - [CoF6]3-
(iv) dichloridobis(ethylenediamine)Cobalt(III) sulphate        - [Co(en)2Cl2]2SO4
(v) Tetracarbonylnickle(0)                                                 - [Ni(CO)4]

5. A solution of [Co(NH3)4I2]Cl when treated with AgNO3 gives a white precipitate.What should be the formula of isomer of the dissolved complex that gives yellow precipitate with AgNO3. What are the above isomers called?

Silver nitrate reacts with chloride ions to give silver chloride white precipitate, therefore in one isomer the Cl- is the counter ion. Whereas silver nitrate reacts with Iodide ion to form yellow precipitate therefore the counter ion is I-. Therefore the isomers are called ionization isomer

COORDINATION CHEMISTRY 5 Table10


6. Three compounds A,B and C have the molecular formulaCrCl3.6H2o they are kept in a container with a dehydrating agent and they lost water and attaining constant weight as shown below.
COORDINATION CHEMISTRY 5 Table11

Compound A: [Cr(H2O)4 Cl2]Cl. 2H2O
Compound B: [Cr(H2O)5 Cl]Cl2. H2O
Compound C: [Cr(H2O)3Cl3]. 3H2O

7. Indicate the possible type of isomerism for the following complexes and draw their isomers

COORDINATION CHEMISTRY 5 Table12

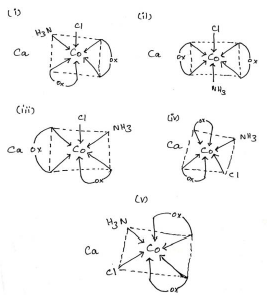

8. Draw all possible isomers of a complex Ca[Co(NH3)Cl(ox)2]
COORDINATION CHEMISTRY 5 Image9

9. The spin only magnetic moment of tetrachloridomanganate(II) ion is 5.9 BM. On the basis of VBT predict the type of hybridization and geometry of the compound
Given complex [MnCl4]2-
When magnetic moment is 5.9BM it means it has 5 unpaired electron i.e., n=5
COORDINATION CHEMISTRY 5 Image10

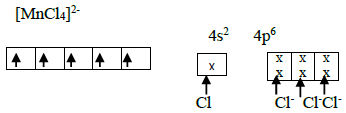

Chlorido is a weak ligand therefore no pairing takes place .

COORDINATION CHEMISTRY 5 Image11

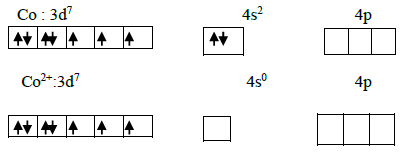

10. Predict the number of unpaired electrons in [CoCl4]2- ion on the basis of VBT.

COORDINATION CHEMISTRY 5 Image13

Cl- is a weak ligand therefore pairing does not takeplace [CoCl4]2-
COORDINATION CHEMISTRY 5 Image14
Number of unpaired electron, n=3

11. A metal complex having composition Co(en)2Cl2Br has been isolated in two forms A and B. (B) reacted with silver nitrate to give a white precipitate readily soluble in ammonium hydroxide. Where as A gives a pale yellow precipitate. Write the formula of A and B. State the hybridization of Co in each and calculate their spin only magnetic moment.
COORDINATION CHEMISTRY 5 Image15

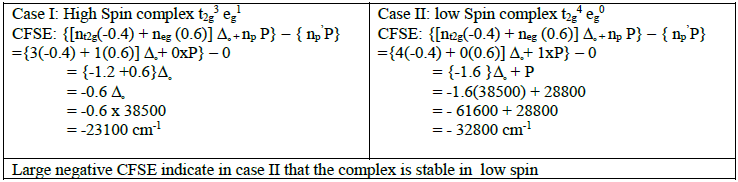

12. The mean pairing energy and octahedral field splitting energy [Mn(CN)6]4- are 28,800 cm-1 and 38500 cm-1 respectively. Whether this complex is stable in low spin or high spin?
Given mean pairing energy 28000 cm-1 and Octahedral splitting energy is 38500 cm-1
For [Mn(CN)4]4- the electronic configuration Mn3+ is 3d4
COORDINATION CHEMISTRY 5 Image16

COORDINATION CHEMISTRY 5 Image17


13. Draw energy level diagram and indicate the number of electron in each level for the complex [Cu(H2O)6]2+ .
Whether the complex is paramagnetic or diamagnetic?
[Cu(H2O)6]2+ ion is a stretched octahedron. The electronic configuration of copper(II) ion is [Ar} 3d9. When the complex ion formed by Cu2+ has an octahedral structure, the d orbitals will split in to two different orbitals t2g and eg. The electronic configuration is (t2g)6 (eg)3 , the 3 electrons in eglevel can be arranged in two different ways t2g6 eg3 ( dz2)2 (dx2-y2)1 or t2g6 eg3 ( dz2)1 (dx2-y2)2 . To break the degeneracy there is a distortion of the octahedral splitting
The presence of one unpaired electron in the eg level makes [Cu(H2O)6]2+ as paramagnetic

14. For the [CoF6]3- ion in the mean pairing is found to be 21000 cm-1. The magnitude of Δₒ is 13000 cm-1. Calculate the crystal field stabilization energy for this complex ion corresponding to low spin and high spin states.

Given mean pairing energy 21000 cm-1 and Octahedral splitting energy is 13000 cm-1
Forthe [CoF6]3 electronic configuration Co3+ is 3d6
COORDINATION CHEMISTRY 5 Image18

COORDINATION CHEMISTRY 5 Table13


EXTRA QUESTIONS

1. Write the coordination number and oxidation state of platinum in the complex [Pt(en)2Cl2]
Coordination number and oxidation state of Pt in the complex [Pt(en)2Cl2] are 6 and +2 because en is a bidentate and neutral ligand

2. What type of isomerism is exhibited by the complex [Co(NH3)5Cl]SO4 and [Co(NH3)6][Cr(CN)6] ?
Ionization isomerism and coordination isomerism respectively.

3.Write the postulates of Valence bond theory.

1. The ligand → metal bond in a coordination complex is covalent in nature. It is formed by sharing of electrons (provided by the ligands) between the central metal atom and the ligand.

2. Each ligand should have at least one filled orbital containing a lone pair of electrons.
3. In order to accommodate the electron pairs donated by the ligands, the central metal ion present in a complex provides required number (coordination number) of vacant orbitals.
4. These vacant orbitals of central metal atom undergo hybridisation, the process of mixing of atomic orbitals of comparable energy to form equal number of new orbitals called hybridised orbitals with same energy.
5. The vacant hybridised orbitals of the central metal ion, linearly overlap with filled orbitals of the ligands to form coordinate covalent sigma bonds between the metal and the ligand.
6. The hybridised orbitals are directional and their orientation in space gives a definite geometry to the complex ion.

COORDINATION CHEMISTRY 5 Table14



Tags:




Click for more Chemistry Study Material

Latest NCERT & CBSE News

Read the latest news and announcements from NCERT and CBSE below. Important updates relating to your studies which will help you to keep yourself updated with latest happenings in school level education. Keep yourself updated with all latest news and also read articles from teachers which will help you to improve your studies, increase motivation level and promote faster learning

Online Teacher Training Course on Competency based Education in DIKSHA

Competency is a set of skills, abilities, knowledge that helps an individual perform a given task in real life. Every learning should go into the imbibing of these skills to lead a productive and joyful life. The NATIONAL EDUCATION POLICY-2020 calls for shift towards...

Revised SOP preventive measures followed while conducting examinations

Revised SOP on preventive measures to be followed while conducting examinations to contain spread of COVID-19 issued by Ministry of Health & Family Welfare Examination centres are frequented by large number of students (as well as their parents) and staff till the...

National Online Painting Championship

The National Mission for Clean Ganga, Ministry of Jal Shakti in collaboration with Kalantar Art Trust is organizing KALANTAR-2020: National Online Painting Championship with the aim to provide a platform to youth and school children to demonstrate their artistic skills...

NEP Transforming India Quiz

As a part of Shikshak Parv celebration, an online quiz competition on National Education Policy 2020 will be organized by the Ministry of Education, Govt. of India, from 5 th September to 25th September 2020 in order to create awareness about NEP among all stakeholders...

Keep your kids engaged during Lockdown

Kids are the Future of our Country! Outlines have changed and so should the formats of existence! It is the best time to teach our kids the pleasure of Self-Discipline, Self-Realization and Self-Control. To keep the future generation safe in such unpredictable...

Training of CBSE School Teachers on Olabs

Training of CBSE School Teachers on Olabs in collaboration with C-DAC Mumbai: OLabs is a platform jointly developed by the Ministry of Electronics and Telecommunications, Government of India, CDAC, and Amrita University to facilitate a virtual experience of CBSE...

×
Studies Today
