Class 10 Science Worksheet for Chapter 12 Electricity

Question : Two resistors of resistances 2 Ω and 4 Ω when connected to a battery will have
a) Same current flowing through them when connected in parallel
b) Same current flowing through them when connected in series
c) Same potential difference across them when connected in series
d) None of these
Answer : B

Question : The resistance of an electric iron drawing a current of 4A when connected to a 220V mains would be
a) 1000 Ω
b) 55 Ω
c) 44 Ω
d) 64 Ω
Answer : B

Question : If 25 joule of work is done in moving a charge of 5C across two points A and B the potential difference between these points would be
a) V
b) 125V
c) 5V
d) 625V
Answer : C

Question : Ohm’s law states the relationship between
a) Electric current and heat produced in it
b) Electric power and work done
c) Electric current and potential difference
d) Electric current and electric charge
Answer : C

Question : If electrons flow from A to B, current will flow from
(a) A to B
(b) B to A
(c) It will not flow
(d) None of these
Answer : B

Question : Unit of electric power may also be expressed as
a) Volt ampere
b) Kilowatt hour
c) Watt second
d) Joule second
Answer : A

Question : Electric current flows from ‘A’ to ‘B’ in metallic conductor. The point is at higher potential is
(a) A
(b) B
(c) Both have equal potential
(d) Both have lower potential
Answer : A

Question : When a 4V battery is connected across an unknown resistor there is a current of 100 mA in the circuit.
The value of the resistance of the resister is:
(a) 4 Ω
(b) 40 Ω
(c) 400 Ω
(d) 0.4 Ω
Answer : B

Question : In an electric circuit three incandescent bulbs of rating 40W, 60W and 100W respectively are connected in parallel to an electric source. Which of the following is likely to happen regarding their brightness
a) Brightness of all the bulbs will be the same
b) Brightness of bulb A will be the maximum
c) Brightness of bulb B will be more than that of A
d) Brightness of bulb C will be less than that of B
Answer : C

Question : Electrical resistivity of a given metallic wire depends upon
(a) its length
(b) its thickness
(c) its shape
(d) nature of the material
Answer : D

Question : The unit of resistivity is
a) Ohm
b) Ohm metre2
c) Ohm metre
d) Ohm per metre
Answer : C

Question : The resistivity does not change if
a) The material is changed
b) The temperature is changed
c) The shape of the resistor is changed
d) Both material and temperature are changed
Answer : C

Question : An electric kettle consumes 1kW of electric power when operated at 220V. The rating of fuse wire that must be used would be
a) 1A
b) 2A
c) 4A
d) 5A
Answer : D

Question : A cylindrical conductor of length l and uniform area of cross section A has resistance R. Another conductor of length 2l and resistance R of the same material has area of cross section
a) A / 2
b) 3A / 2
c) 2A
d) 3A
Answer : C

Question : In an electric circuit, the direction of electric current is:
a. from the negative terminal to the negative terminal.
b. from the positive terminal to the negative terminal.
c. from the positive terminal to the positive terminal.
d. from the negative terminal to the positive terminal.
Answer : B
Explanation: In an electric circuit, the direction of electric current is from the positive terminal of the battery to the negative terminal of the battery. This is as per convention. Electrons were not known at the time when the phenomenon of electricity was first discovered. Electric current was considered to be the flow of positive charges and the direction of flow of positive charges was taken to be the direction of electric current.

Question : The use of a plane mirror in the meters is to
a. Give brightness to the reading
b. Make the meter look good
c. Get accurate value
d. Avoid parallax error.
Answer : D
Explanation: The use of a plane mirror in the meters is to avoid parallax error with our eye. Meters like ammeters and voltmeters use a mirror to avoid parallax error. The reading is taken from a position such that the image of the pointer is directly under the pointer.

Question : Two students (A) and (B) connect their two given resistors R1 and R2 in the manners shown below :
U-10
Student (A) connects the terminal marked (b1) and (c1) while student (B) connects the terminals marked (d2) and (c2) in their respective circuits at the points marked X and Y.
Which one of the following is correct in relation to above arrangements?
U-11

a. Student (A) will determine the equivalent resistance of the series combination while student (B) will determine the equivalent resistance of the parallel combination of the two resistors.
b. Both the students will determine the equivalent resistance of the parallel combination of the two resistors.
c. Both the students will determine the equivalent resistance of the series combination of the two resistors.
d. Student (A) will determine the equivalent resistance of the parallel combination while student (B) will determine the equivalent resistance of the series combination of the two resistors.
Answer : A
Explanation: R1 and R2 has one common point in (A) and two common points in (B).

Question :  Match the following with the correct response:
(1) Electric current                                                         (A) Ammeter
(2) Small deflection in the circuit                                     (B) Battery
(3) Maintains potential difference between two points       (C) Galvanometer
(4) Variable Resistance                                                   (D) Rheostat
a. 1-B, 2-D, 3-A, 4-C
b. 1-C, 2-B, 3-D, 4-A
c. 1-A, 2-C, 3-B, 4-D
d. 1-D, 2-A, 3-C, 4-B
Answer : C
Explanation: An Ammeter (from Ampere Meter) is used to measure electric current (flow of electric charge) in an electric circuit. A Galvanometer is an electromechanical instrument for detecting and measuring small electric currents. A Battery maintains potential difference between two points in an electric circuit. A Rheostat is an electrical instrument used to control current in a circuit by varying the resistance.

Question : To determine the equivalent resistance of a series combination of two resistors R1 and R2, a student arranges the following set up :
Which one of the following statements will be true for this circuit ? It gives :
a. correct reading for potential difference V but incorrect reading for current I.
b. correct reading for current I but incorrect reading for potential difference V.
c. correct readings for both I and V
d. incorrect reading for current I as well as potential difference V.
Answer : D
Explanation: Ammeter should not be shunted with voltmeter.


Assertion and reasoning questions

The following questions consists of two statements –Assertion(A) and Reason (R). Answer these questions selecting the appropriate option given below.
a) Both A and R are true and R is the correct explanation for A
b) Both A and R are true and R is not the correct explanation for A
c) A is true but R is false
d) A is false but R is true.

Question : Assertion (A): If a graph is plotted between potential difference and current the graph is a straight line passing through the origin.
Reason(R): current is directly proportional to the potential difference.
Answer : A

Question : Assertion (A): Longer wires have greater resistance and the smaller wires have lesser resistance.
Reason(R): Resistance is inversely proportional to the length of the wire.
Answer : C

Question : Assertion (A): A cell converts chemical energy into electrical energy.
Reason(R): A cell maintains a potential difference across its terminals due to chemical reactions.
Answer : B

Question : Assertion (A): Alloys are commonly used in electrical heating devices.
Reason(R): Alloys do not oxidize at high
temperatures.
Answer : A

Question : Assertion (A): When resistances are connected between the same two points they are said to be in series.
Reason(R): When resistors are connected in series the current through each resistor is the same.
Answer : D



Very Short Answers

Question : Define resistance. Give its S.I. unit.
Answer : Resistance is the property of a conductor to oppose the flow of charges through it. SI unit of resistance is Ohm (Ω).

Question : What will happen to the resistivity of a wire of length L if it is cut into three parts?
Answer : Resistivity of the wire will not change even when the wire is cut into three parts as resistivity is a characteristic of the material of the conductor and does not depend on the physical dimensions of the conductor.

Question : The potential difference across the wire having fixed resistance is tripled. By how much does the electric power increase?
Answer :  The electric power will increase by nine times when the potential difference across the wire having fixed resistance is tripled. According to Ohm’s law, potential difference V is proportional to current, I. Therefore, when V is made 3 times, I will increase 3 times. As Power P = VI, therefore, Power will increase by 9 times.

Question : Is electric potential a scalar or a vector quantity ?
Answer : Electric potential is a scalar quantity.

Question : What causes the potential difference between the two terminals of a cell?
Answer : Excess of electrons at the negative terminal and lack of electrons at the positive terminal (due to chemical reactions) causes potential difference between the two terminals of a cell.

Question : What is the SI unit of charge ?
Answer :The SI unit of charge is coulomb.

Question : Define 1 Coulomb.
Answer : Q=ne
Q= charge = 1 C
1C = n×e 1c is that charge which contains 6.25 x 1018 number of electrons in it.

Question : Calculate the number of electrons in 5C charge?
Answer : Given Q= 5C , find n=? As we know Q=ne 5=n×1.6×10^-19C N= 5/1.6×10^-19
N= 3.12× 10^-18

Question : What is a good conductor?
Answer : Good conductors are substances that offer little resistance to current flowing through them. Examples - Silver, Copper, Gold, Aluminium. Poor conductors are substances that offer a lot of resistance, hence preventing the current from flowing through it.

Question : Is human body an insulator or conductor?
Answer : Skin is actually a very good insulator as well so, relative to metal, humans aren't very good conductors. However, it is things such as the ionized water and whatnot that make up our body that do cause us to conduct. Actually the body is not too good.

Question : How can we get continuous flow of current in a circuit?
Answer : We can get continuous flow of current in a circuit by maintaining a potential difference between the 2 ends of a conductor. We can do that by connecting it to a battery or cell because there are two terminals that are always at different potential levels

Question : Calculate the work done if a charge of 5 C moving across two point having potential difference equal to 15 V.
Answer : Given, potential difference (V) = 15 V Charge (Q) = 5 C Work done (W) =? We know that; V=WQV=WQ Or, W=V×QW=V×Q Or,
W=15V×5C=75JW=15V×5C=75J Example

Question : Calculate the work done to carry a charge of 3 C, if the potential difference between two points is 10 V.
Answer : Given, charge = 3 C Potential difference between two points = 10V Work done (W) =? We know that; V=WQV=WQ Or, W=V×QW=V×Q Or, W=10V×3C=30J

Question : How is an ammeter connected in a circuit to measure current flowing through it?
Answer : An ammeter connected in series in a circuit to measure current flowing through it.

Question : What does an electric circuit mean?
Answer :  A continuous closed path made of electric components through which an electric current flows is known as an electric circuit. A simple circuit consists of the following components: (a) Conductors (b) Cell (c) Switch (d) Load

Question : Define the unit of current.
Answer :  The unit of current is ampere. Ampere is defined by the flow of one coulomb of charge per second.

Question : Calculate the number of electrons constituting one coulomb of charge.
Answer : The value of the charge of an electron is 1.6 × 10-19 C. According to charge quantization, Q = nqe, where n is the number of electrons and qe is the charge of an electron. Substituting the values in the above equation, the number of electrons in a coulomb of charge can be calculated as follows:
worksheet 5 ch 1 10 (1)

Therefore, the number of electrons constituting one coulomb of charge is 25 × 1018.

Question : Name a device that helps to maintain a potential difference across a conductor.
Answer :Battery consisting of one or more electric cells is one of the devices that help to maintain a potential difference across a conductor.

Question : What is meant by saying that the potential difference between two points is 1 V?
Answer : When 1 J of work is done to move a charge of 1 C from one point to another, it is said that the potential difference between two points is 1 V.

Question : How much energy is given to each coulomb of charge passing through a 6 V battery?
Answer : We know that the potential difference between two points is given by the equation, V = W/Q,
where, W is the work done in moving the charge from one point to another Q is the charge From the above equation, we can find the energy given to each coulomb as follows:
W = V × Q
Substituting the values in the equation, we get
W = 6V × 1C = 6 J
Hence, 6 J of energy is given to each coulomb of charge passing through a 6 V of battery.



Short Answers

Question :  Find the minimum rating of fuse that can be safely used on a line on which two 1.1 KW electric geysers are to run simultaneously.
The supply voltage is 220 V.
Answer : Power P = VI. As the two geysers have power rating 1.1 kW or 1100 W and are connected in parallel, each geyser draws a current I = P/V =
1100/220 A = 5 A.

Question : The electric power consumed by a device may be calculated by either of the two expressions P = I2R or P = V2/R. The frist expression indicates that it is directly proportional to R whereas the second expression indicates inverse proportionality. How can the seemingly different dependence of P on R in these expressions be explained?
Answer :  The expression P = I2R is used for calculating electric power when only current I and resistance R are known, whereas P = V2/R is used for calculating power when voltage V and
resistance R are known.

Question : Why does the cord of an electric heater does not glow while heating element does?
Answer : Heating effect = I2Rt
where I is the current flowing and R is the resistance and t is the time. Current is same in cord and in heating element. Resistance R of the cord is negligible since it is made of copper (which has very less resistivity) while heating element is made in nichrome whose resistivity is 6,000 times more than copper. Nichrome gets heated up much more than copper.

Question : How will the heat produced in a resistor R change if its resistance is reduced to half of its initial value, other parameters of the circuit remain unchanged?
Answer : The heat produced in a resistor R is given by Joule’s law of heating H = I2Rt, where I is the current and t is the time. When R becomes R/2, I will become 2I according to Ohm’s law.
Therefore, heat produced = (2I)2(R/2)t = 2H. The heat produced will become double.

Question : Why is parallel arrangement used in domestic wiring?
Answer :  Parallel arrangement is used in domestic wiring due to the following reasons:
• Each device will have the same voltage which is equal to the voltage of the supply.
• If two or more devices are used at the same time, then each appliance will be able to draw the required current.
• If one of the devices fails, then the other keeps working.

Question : Draw a circuit diagram having the following components:
(a) Bulb (b) A two cell battery (c) Ammeter (d) A closed key
Answer :

""CBSE-Class-10-Physics-Electricity-Worksheet-1

Question : (A) What is the resistance of a conductor?
(B) What happens to the electrical resistance when mercury is cooled to 4.12 k?
(C) What name is given to this phenomenon?
Answer :  (A) The property of a conductor due to which it opposes the flow of current through it is called resistance. The resistance of a conductor is numerically equal to the ratio of potential difference across its ends to the current flowing through it.
(B) When mercury is cooled to 4.12 K, the electrical resistance of mercury disappears completely and becomes zero and the mercury becomes super conductor.
(C) This phenomenon of loss of electrical resistance of a substance on cooling it to an extremely low temperature is known as superconductivity.

Question : Compare the power used in the 2 Ω resistor in each of the following circuits:
i. a 6 V battery in series with 1Ω and 2Ω resistors,and
ii. a 4 V battery in parallel with 12Ω and 2Ω resistors.

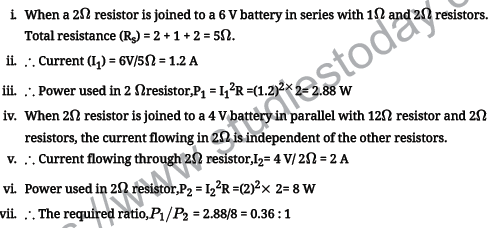

Answer :
U-13


Long Answers

Question : Answer the following:
(A) Why ammeter is always connected in series?
(B) give dry cells each of 1.0 volt have internal resistance of 0.2, 0.3, 0.4, 0.5 and 1.2 ohms. When connected in series, what current will these five cells furnish through 10 ohm resistance?
Answer :  (A) An ammeter is used to measure the current flowing through a circuit. We know that current remains same in series connection. lso the resistance of an ammeter is verysmall due to which it doesn’t affect the current to be measured. So, an ammeter is always connected in series to measure current.
(B) Total voltage produced by the batteries
V = 5 x 1.5 = 7.5 V
Total resistance
R = R1 + R2 + R3 + R4 + R5
R = (0.2 + 0.3 + 0.4 + 0.5 + 1.2) + 10
   = 12.6 W
Therefore, current
I  = V/R
   = 7.5/12.6 = 0.595 A.



Question : For the circuit shown in the given diagram:
U-12

What is the value of
i. current through 6 resistor?
ii. potential difference across 12 resistor?
Answer :  Let the current through the circuit be I which is divided into I1 and I2 in the arms AB and CD respectively, then we have
I = I1 + I2
In the arm AB, the total resistance is
R=  6Ω + 3Ω = 9Ω
and the total resistance in the arm CD is
R2   = 12Ω + 3Ω = 15Ω
i. Then current in the 6Q resistor i.e.,
U-14

Question : List two distinguishing features between the resistance and resistivity of a conductor. A wire is stretched so that its length becomes 6/5 times of its original length. If its original resistance is 25 W, find its new resistance and resistivity. Give justification for your answer in each case.
Answer : Resistance
(i) It is the ratio of voltage over current at a particular temperature.
(ii) Its S.I. unit is ohm.
(iii) It is the property of a conductor
Resistivity
(i) It is the resistance of a wire of length 1 m and area of cross section 1 m2.
(ii) Its S.I. unit is ohm metre
(iii) It is the property of the material of the conductor
Since resistance is directly proportional to the length and is inversely proportional to the area of cross section.
∴ New Resistance:
""CBSE-Class-10-Physics-Electricity-Worksheet
When the wire is stretched, its length becomes 6/5 times of its original length, and area of cross-section will become 5/6. Resistivity will remain the same because it does not depend upon the length and area of cross section. It depends on the nature of material of the substance and the temperature.

Question : (i) Write an expression for the resistivity of a substance.
(ii) State the SI unit of resistivity.
(iii) Distinguish between resistance and resistivity.
(iv) Name two factors on which the resistivity of a substance depends and two factors on which it does not depend.
Answer : 1. (i) Resistivity (r) = RA/l
(ii) Its SI unit is W m.
(iii) Resistivity is a characteristic property of a material that does not depend upon the dimensions of the material whereas resistance depends upon the dimensions of the material.
(iv) Resistivity does not depend on the:
(a) length of conductor, (b) area of cross section of conductor Resistivity depends on the:
(a) nature of material of conductor (b) temperature of conductor

Question : The potential difference between the terminals of an electric heater is 60 V when it draws a current of 4 A from the source. What current will the heater draw if the potential difference is increased upto 120 V?
Answer : 12. V = 60 V, I = 4 A
R = V/I = 60/4 = 15Ω [By Ohm's Law; V = IR]
Now, V = 120 V, I = ? R = 15 Ω
I = V/R = 120/15 = 8A

Question : State Ohm’s law. Draw a labelled circuit diagram to verify this law in the laboratory. If you draw a graph between the potential difference and current flowing through a metallic conductor, what kind of curve will you get? Explain how would you use this graph to determine the resistance of the conductor.
Answer : Ohm’s Law: It states that ratio of potential difference and current is constant and is equal to the
resistance of the conductor at a particular temperature. In other words, the current flowing through a
conductor is directly proportional to the potential difference at a constant temperature.
The graph between V and I will be a straight line.
Slope = tan θ = ‘R’
Slope = BC/AC = R

Chapter 16 Sustainable Management of Natural Resources
CBSE Class 10 Science Sustainable Management of Natural Resources Worksheet

More Study Material

CBSE Class 10 Science Chapter 12 Electricity Worksheet

We hope students liked the above worksheet for Chapter 12 Electricity designed as per the latest syllabus for Class 10 Science released by CBSE. Students of Class 10 should download in Pdf format and practice the questions and solutions given in the above worksheet for Class 10 Science on a daily basis. All the latest worksheets with answers have been developed for Science by referring to the most important and regularly asked topics that the students should learn and practice to get better scores in their class tests and examinations. Studiestoday is the best portal for Class 10 students to get all the latest study material free of cost.

Worksheet for Science CBSE Class 10 Chapter 12 Electricity

Expert teachers of studiestoday have referred to the NCERT book for Class 10 Science to develop the Science Class 10 worksheet. If you download the practice worksheet for one chapter daily, you will get higher and better marks in Class 10 exams this year as you will have stronger concepts. Daily questions practice of Science worksheet and its study material will help students to have a stronger understanding of all concepts and also make them experts on all scoring topics. You can easily download and save all revision worksheet for Class 10 Science also from www.studiestoday.com without paying anything in Pdf format. After solving the questions given in the worksheet which have been developed as per the latest course books also refer to the NCERT solutions for Class 10 Science designed by our teachers

Chapter 12 Electricity worksheet Science CBSE Class 10

All worksheets given above for Class 10 Science have been made as per the latest syllabus and books issued for the current academic year. The students of Class 10 can be rest assured that the answers have been also provided by our teachers for all worksheet of Science so that you are able to solve the questions and then compare your answers with the solutions provided by us. We have also provided a lot of MCQ questions for Class 10 Science in the worksheet so that you can solve questions relating to all topics given in each chapter. All study material for Class 10 Science students have been given on studiestoday.

Chapter 12 Electricity CBSE Class 10 Science Worksheet

Regular worksheet practice helps to gain more practice in solving questions to obtain a more comprehensive understanding of Chapter 12 Electricity concepts. Worksheets play an important role in developing an understanding of Chapter 12 Electricity in CBSE Class 10. Students can download and save or print all the worksheets, printable assignments, and practice sheets of the above chapter in Class 10 Science in Pdf format from studiestoday. You can print or read them online on your computer or mobile or any other device. After solving these you should also refer to Class 10 Science MCQ Test for the same chapter.

Worksheet for CBSE Science Class 10 Chapter 12 Electricity

CBSE Class 10 Science best textbooks have been used for writing the problems given in the above worksheet. If you have tests coming up then you should revise all concepts relating to Chapter 12 Electricity and then take out a print of the above worksheet and attempt all problems. We have also provided a lot of other Worksheets for Class 10 Science which you can use to further make yourself better in Science

Where can I download latest CBSE Printable worksheets for Class 10 Science Chapter 12 Electricity

You can download the CBSE Printable worksheets for Class 10 Science Chapter 12 Electricity for latest session from StudiesToday.com

Can I download the Printable worksheets of Chapter 12 Electricity Class 10 Science in Pdf

Yes, you can click on the links above and download Printable worksheets in PDFs for Chapter 12 Electricity Class 10 for Science

Are the Class 10 Science Chapter 12 Electricity Printable worksheets available for the latest session

Yes, the Printable worksheets issued for Class 10 Science Chapter 12 Electricity have been made available here for latest academic session

How can I download the Class 10 Science Chapter 12 Electricity Printable worksheets

You can easily access the links above and download the Class 10 Printable worksheets Science Chapter 12 Electricity for each chapter

Is there any charge for the Printable worksheets for Class 10 Science Chapter 12 Electricity

There is no charge for the Printable worksheets for Class 10 CBSE Science Chapter 12 Electricity you can download everything free

How can I improve my scores by solving questions given in Printable worksheets in Class 10 Science Chapter 12 Electricity

Regular revision of practice worksheets given on studiestoday for Class 10 subject Science Chapter 12 Electricity can help you to score better marks in exams

Are there any websites that offer free test sheets for Class 10 Science Chapter 12 Electricity

Yes, studiestoday.com provides all latest NCERT Chapter 12 Electricity Class 10 Science test sheets with answers based on the latest books for the current academic session

Can test papers for Class 10 Science Chapter 12 Electricity be accessed on mobile devices

Yes, studiestoday provides worksheets in Pdf for Chapter 12 Electricity Class 10 Science in mobile-friendly format and can be accessed on smartphones and tablets.

Are worksheets for Chapter 12 Electricity Class 10 Science available in multiple languages

Yes, worksheets for Chapter 12 Electricity Class 10 Science are available in multiple languages, including English, Hindi

What is the importance of worksheets for CBSE Class 10 Science?

CBSE Class 10 Science worksheets help students practice all concepts given in their books, improve problem-solving skills, and prepare effectively for CBSE exams

What topics are covered in CBSE Class 10 Science Chapter 12 Electricity worksheets?

CBSE Class 10 Science Chapter 12 Electricity worksheets cover all topics as per the latest syllabus for current academic year.

How can I use worksheets to improve my Class 10 Science scores?

Regular practice with Class 10 Science worksheets can help you understand all concepts better, you can identify weak areas, and improve your speed and accuracy.

Are there solved examples in Class 10 Science worksheets?

All worksheets for Class 10 Science and for Chapter 12 Electricity have solved questions with step by step guide for each solution

How often should I practice Class 10 Science Chapter 12 Electricity worksheets?

Practice atleast one worksheet of Chapter 12 Electricity every day for Class 10 Science
