Read and download free pdf of CBSE Class 10 Science Human Eye and Colorful World Assignment Set D. Get printable school Assignments for Class 10 Physics. Class 10 students should practise questions and answers given here for Chapter 11 Human Eye And Colourful World Physics in Class 10 which will help them to strengthen their understanding of all important topics. Students should also download free pdf of Printable Worksheets for Class 10 Physics prepared as per the latest books and syllabus issued by NCERT, CBSE, KVS and do problems daily to score better marks in tests and examinations
Assignment for Class 10 Physics Chapter 11 Human Eye And Colourful World
Class 10 Physics students should refer to the following printable assignment in Pdf for Chapter 11 Human Eye And Colourful World in Class 10. This test paper with questions and answers for Class 10 Physics will be very useful for exams and help you to score good marks
Chapter 11 Human Eye And Colourful World Class 10 Physics Assignment
Question. Which of the following colors is least scattered by fog, dust of smoke?
(a) lViolet
(b) Blue
(c) Red
(d) Yellow
Answer: C
Question. The colored light that refracts most while passing through a prism is
(a) lYellow
(b) Violet
(c) Blue
(d) Red
Answer: B
Question. At noon the sun appears white as
(a) light is least scattered.
(b) All the colors of the white light are scattered away.
(c) Blue color is scattered the most.
(d) Red color is scattered the most.
Answer: A
Question. Which of the following phenomena of light are involved in the formation of a rainbow?
(a) Reflection, refraction and dispersion
(b) Refraction, dispersion and total internal reflection
(c) dispersion of light by water droplets
(d) Refraction, dispersion and internal reflection
Answer: C
Question. Twinkling of stars is due to atmospheric
(a) Ultraviolet radiations are absorbed in the atmosphere.
(b) refraction of light by different layers of varying refractive indices
(c) scattering of light by dust particles
(d) internal reflection of light by clouds.
Answer: B
Question. The clear sky appears blue because
(а) blue light gets absorbed in the atmosphere.
(b) Ultraviolet radiations are absorbed in the atmosphere.
(c) Violet and blue lights get scattered more than lights of all other colors by the atmosphere.
(d) light of all other colors is scattered more than the violet and blue color lights by the atmosphere.
Answer: C
Question. Which of the following statements is correct regarding the propagation of light of different colors of white light in air?
(a) Red light moves fastest.
(b) Blue light moves faster than green light.
(c) All the colors of the white light move with the same speed.
(d) Yellow light moves with the mean speed as that of the red and the violet light.
Answer: C
Question. The danger signals installed at the top of tall buildings are red in color. These can be easily seen from a distance because among all other colors, the red light
(a) Is scattered the most by smoke or fog.
(b) Is scattered the least by smoke or fog.
(c) Is absorbed the most by smoke or fog.
(d) Moves fastest in air.
Answer: B
Question. Which of the following phenomena contributes significantly to the reddish appearance of the sun at sunrise or sunset?
(a) Dispersion of light
(b) Scattering of light
(c) Total internal reflection of light
(d) Reflection of light from the earth.
Answer: B
Question. The bluish color of water in deep sea is due to
(a) the presence of algae and other plants found in water
(b) reflection of sky in water
(c) scattering of light
(d) absorption of light by the sea.
Answer: C
Question.A student traces the path of a ray through a glass prism for four different values of angle of incidence. On analyzing the diagrams, he is likely to conclude that the emergent ray
(a) is always parallel to the incident ray.
(b) Is always perpendicular to the incident ray
(c) Is always parallel to the refracted ray
(d) Always bends at an angle to the direction of incident ray.
Answer: D
Question. A student is observing the diagram showing the path of a ray of light passing through a glass prism. He would find that for all angles of incidence the ray of light bends:
(а) towards the normal while entering into the prism and away from the normal while emerging out of the prism
(b) away from the normal while entering into the prism and towards the normal while emerging out of the prism.
(c) Away from the normal while entering as well as while emerging out of the prism.
(d) Towards the normal while entering as well as while emerging out of the prism.
Answer: A

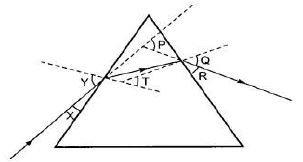

Question. In the following diagram, the path of a ray of light passing through a glass prism is shown:
In this diagram the angle of incidence, the angle of emergence and the angle of deviation respectively are (select the correct option):
(a) X, R and T
(b) Y, Q and T
(c) X, Q and P
(d) Y, Q and P
Answer: D

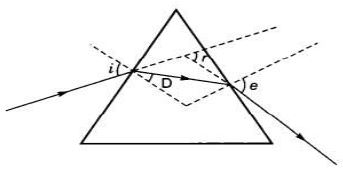

Question. After tracing the path of a ray of light through a glass prism a student marked the angle of incidence (∠i), angle of refraction (∠r), angle of emergence (∠e) and the angle of deviation (∠D) as shown in the diagram. The correctly marked angles are:
(a) ∠i and ∠r
(b) ∠i and ∠e
(c) ∠i, ∠e and ∠D
(d) ∠i, ∠r and ∠e
Answer: B

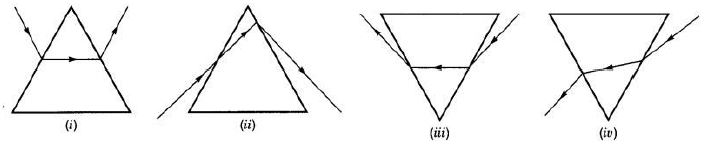

Question. While performing the experiment to trace the path of a ray of light passing through a glass prism, four students marked the incident ray and the emergent ray in their diagrams in the manner shown below.
The correct path of the rays has been shown by:
(a) I
(b) II
(c) III
(d) IV
Answer: C
Question. Stars appears to be twinkling because of
(a) atmospheric refraction
(b) reflection
(c) Tyndall effect
(d) spectrum
Answer: B
Assertion and Reason Type Questions
Direction – In each of the following questions, a statement of Assertion is given by the corresponding statement of Reason. Of the statements, mark the correct answer as
(a) If both Assertion and Reason are true and Reason is the correct explanation of Assertion.
(b) If both Assertion and Reason are true, but Reason is not the correct explanation of Assertion.
(c) If Assertion is true, but Reason is false.
(d) If Assertion is false, but Reason is true.
(e) If Assertion and Reason both are false.
Question. Assertion: Tyndall Effect is an optical phenomenon of light used to explain atmospheric refraction.
Reason: The tiny particles of dust disperse sunlight in it falls through foliage in a forest.
Answer: C
Question. Assertion: On a clear summer night twinkling of stars is observed.
Reason: The twinkling of stars is caused by dispersion of star light by the atmosphere.
Answer: C
Question. Assertion: On mid-day, the colour of the sunlight becomes white.
Reason: No atmospheric refraction is caused due to overhead sun.
Answer: A
Direction –

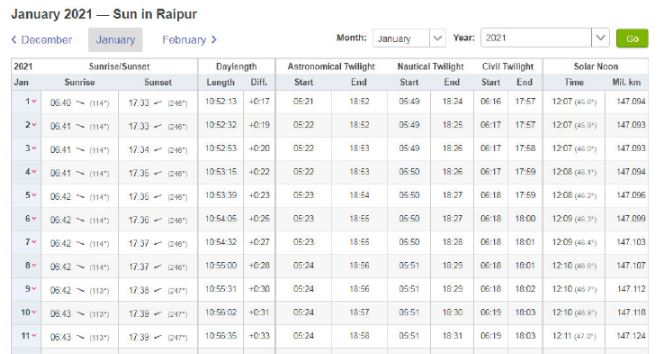

Give the answers according to information of the Sun position (Raipur) given in the above chart.
Question. Duration of the Sun and the Moon dated 5 th January 2021.
Answer: Sun 10h:53m:39s Moon 14h:7m:21s
Question. Write the date in which the Sun was present for longer time.
Answer: 11th
Question. Date in which the sun rised earliest ?
Answer: 1st
Question. Difference between the day length from 1st January and 2nd January.
Answer: 19s

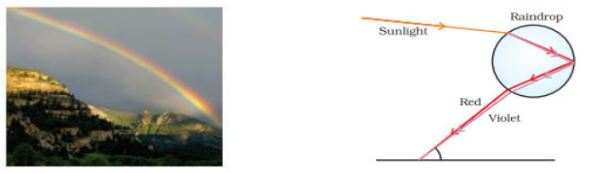

Direction – A rainbow is a natural spectrum appearing in the sky after a rain shower. It is caused by dispersion of sunlight by tiny water droplets, present in the atmosphere. A rainbow is always formed in a direction opposite to that of the Sun. The water droplets act like small prisms. They refract and disperse the incident sunlight, then reflect it internally, and finally refract it again when it comes out of the raindrop.
Due to the dispersion of light and internal reflection, different colours reach the observer’s eye. You can also see a rainbow on a sunny day when you look at the sky through a waterfall or through a water fountain, with the Sun behind you.
Question. Rainbows are caused due to:
(a) scattering of white light
(b) dispersion of white light
(c) reflection of white light
(d) None of the above
Answer: B
Question. The colours are in the order in rainbow:
(a) Violet, blue, green, yellow, indigo, orange and red
(b) Violet, indigo, blue, green, yellow, orange and red
(c) Violet, green, blue, yellow, indigo, orange and red
(d) Violet, blue, green, yellow, indigo, orange and red
Answer: B
Question. What is the shape of a rainbow?
(a) straight line
(b) circle shape
(c) arc shape
(d) Oval shape
Answer: C
Question. Water droplet act like as:
(a) tiny prism
(b) tiny glass slab
(c) tiny lens
(d) tiny mirror
Answer: A
Short Answer Type Questions
Question. Which phenomenon is responsible for making the path of light visible?
Answer: Tyndall effect is responsible for making the path of light visible.
Question. Why is red color selected for danger signal lights?
Answer: Because the red light has the largest wavelength of all colors, it is the least dispersed. Because of this, much of the light gets reflected back and can travel longer distances through clouds, fog, dust etc. to effectively enter our eyes.
Question. What will the color of the sky be for an astronaut staying in the international space station orbiting the earth?
Answer: For an astronaut staying in the international space station orbiting the Earth the color of the sky will be black because the light reaching it does not scatter.
Question. Light of two colors A and B pass through a glass prism. A deviates more than B from its path of incidence. Which color has a higher speed in the prism?
Answer: Color B has higher speed than that of color A.
Question. Explain why the planets do not twinkle but the stars twinkle?
Answer: The planets are much closer to the earth. A planet can be considered as a collection of large number of point-sized sources of light. So the total variation in the amount of light entering our eye from all the individual point-sized sources will average out to zero thereby nullifying the twinkling effect.
Question. Name the three phenomenon of light responsible for the formation of rainbow in the sky.
Answer: Refraction, dispersion and internal reflection of light.
Question. When white light passes through a glass prism; seven colors namely red, orange, yellow, green, blue, indigo and violet are seen on the white screen. All these colors have different angles of deviation. Explain why?
Answer: Speed of color in a medium depends upon its wavelength. All the colors have different wavelength. The red color has the longest wavelength and violet color has the last wavelength.
Therefore, red color has the highest speed in the glass prism and the violet color has the lowest speed in the glass prism. Hence, all colors of white light are refracted by different amounts while passing through the glass prism. Therefore, all the colors have different angles of deviations.
Question. Explain with the help of a diagram, how we are able to observe the sunrise about two minutes before the Sun gets above the horizon
Answer: The Sun can be seen about two minutes before sunrise because when the Sun is slightly below the horizon, the Sun’s light coming from less dense air to more dense air is refracted downwards as it passes through the atmosphere. Thus due to this atmospheric refraction, the Sun appears to be raised above the horizon when actually it is slightly below the horizon.
Question. Nitin and his four friends were sitting on his roof on a pleasant day. All of them were enjoying Ludo. Suddenly Aryu saw seven colors in the sky. He jumped with joy and shouted “Look, there is an Indradhanush in the sky”. Then Nitin explained all about the rainbow. After that every one clapped for him.
(a) What information is given by Nitin to his friends about a rainbow?
(b) Is it possible to obtain rainbow phenomenon on the earth?
(c) Which term is used for the seven colors of the rainbow?
Answer: (a) Rainbow is a natural phenomenon in which an arch of seven colors visible in the sky is produced by the dispersion of white sunlight by raindrops in the atmosphere. Each raindrop acts as a tiny glass prism splitting the sunlight into seven colors.
(b) Yes, in daily life, when white light of the Sun is passed through a glass prism, it splits into seven colors.
(c) The band of seven colors obtained by the splitting of white light is called spectrum.
(d) The red color appears at the top of the rainbow whereas violet color appears at its bottom.
Question.(a) Draw a labeled ray diagram to illustrate the dispersion of a narrow beam of white light when it passes through a glass prism.

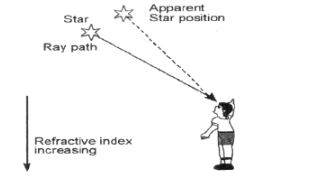

(b) A star appears slightly higher (above) than its actual position in the sky. Illustrate it with the help of a labelled diagram.
Answer: (a)
(b) Light from a star is refracted as it leaves vacuum and enters the earth’s atmosphere. Air at higher altitudes is rarer and is denser nearer to the earth’s surface. Thus when light coming from the star comes down, the dense air bends the light more. Due to this refraction of star’s light, the star appears to be at a higher position.
Long Answer Type Questions
Question. A narrow beam PQ of white light is passing through a glass prism ABC as shown in the diagram.
(i) Write the name and cause of the phenomenon observed.
(ii) Where else in nature is this phenomenon observed?
(iii) Based on this observation, state the conclusion which can be drawn about the constituents of white light.
Answer: (i) The phenomenon of splitting of white light into seven colors on passing through a glass-prism is called dispersion of light. The dispersion of white light occurs because colors of white light travel at different speeds through the glass prism.
(ii) Formation of rainbow is an example of dispersion of white light in nature.
(iii) The formation of spectrum of seven colors shows that white light is made up of lights of seven different colors mixed together. That is, white light is a mixture of seven colors (or seven colored lights), i.e., red, orange, yellow, green, blue, indigo and violet.
Question. State the cause of dispersion of white light passing through a glass prism. How did Newton show that white light of Sun contains seven colors using two identical glass prisms? Draw a ray diagram to show the path of light when two identical glass prisms are arranged together in inverted position with respect to each other and a narrow beam of white light is allowed to fall obliquely on one of the focus of the first prism.
Answer: White light is a mixture of lights of seven colors, red, orange, yellow, green, blue, indigo and violet. The dispersion of white light occurs because colors of white light travel at different speeds through the glass prism. The amount of refraction depends on the speed of colored light in glass. When white light consisting of seven colors falls on a glass prism, each color in it is refracted by a different angle, with the result that seven colors are spread out to form a spectrum. The red light bends the least, while violet bends the most.

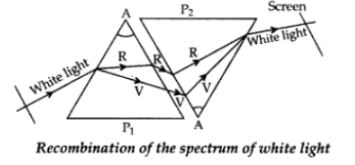

Newton’s experiment with two identical prisms:
* When a beam of white light is passed through a glass prism, a band of seven colors is formed on a white screen. This band of seven colors is called spectrum of white light.
* Newton showed that the seven colored lights of the spectrum can be recombined to give back white light.
* First he tried to split the colors of the spectrum of white light using a prism.
* He then placed a second identical prism in an inverted position with respect to the first prism. This allowed all the colors of the spectrum to pass through the second prism. He found a beam of white light emerging from the other side of the second prism.

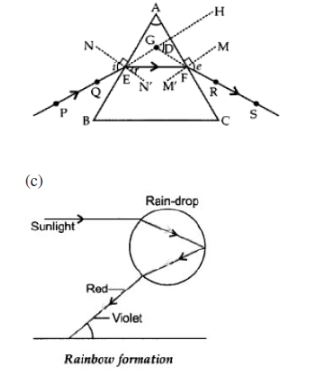

Question. (a) Draw a ray diagram to explain the term angle of deviation.
(b) Why do the component colors of incident white light split into a spectrum while passing through a glass prism, explain.
(c) Draw a labeled ray diagram to show the formation of a rainbow.
Answer: (a) Angle of deviation is the angle between extended incident ray and extended emergent ray through a prism.
PQ = Incident Ray
RS = Emergent Ray
∠D = Angle of Deviation
(b) The incident white light splits into a seven colored spectrum as speed of different colored light waves is different when these pass through the prism.
CBSE Class 10 Science Chemical Reactions and Equations Assignment Set A |
CBSE Class 10 Science Chemical Reactions and Equations Assignment Set B |
CBSE Class 10 Science Metals and Non Metals Assignment Set A |
CBSE Class 10 Science Metals and Non Metals Assignment Set B |
CBSE Class 10 Science Control and Coordination Assignment Set A |
CBSE Class 10 Science Control and Coordination Assignment Set B |
CBSE Class 10 Science How do Organisms Reproduce Assignment Set B |
CBSE Class 10 Science How do Organisms Reproduce Assignment Set C |
CBSE Class 10 Science How do Organisms Reproduce Assignment Set A |
CBSE Class 10 Science Sources of Energy Assignment Set A |
CBSE Class 10 Science Sources of Energy Assignment Set B |
CBSE Class 10 Science Sources of Energy Assignment Set C |
CBSE Class 10 Physics Revision Assignment Set A |
CBSE Class 10 Physics Revision Assignment Set B |
CBSE Class 10 Science Assignment |
CBSE Class 10 Science Assignments Collection |
CBSE Class 10 Science Energy Crossword Puzzle Assignment |
CBSE Class 10 Physics Chapter 11 Human Eye And Colourful World Assignment
We hope you liked the above assignment for Chapter 11 Human Eye And Colourful World which has been designed as per the latest syllabus for Class 10 Physics released by CBSE. Students of Class 10 should download and practice the above Assignments for Class 10 Physics regularly. We have provided all types of questions like MCQs, short answer questions, objective questions and long answer questions in the Class 10 Physics practice sheet in Pdf. All questions have been designed for Physics by looking into the pattern of problems asked in previous year examinations. You can download all Revision notes for Class 10 Physics also absolutely free of cost. Lot of MCQ questions for Class 10 Physics have also been given in the worksheets and assignments for regular use. All study material for Class 10 Physics students have been given on studiestoday. We have also provided lot of Worksheets for Class 10 Physics which you can use to further make your self stronger in Physics.
What are benefits of doing Assignment for CBSE Class 10 Physics Chapter 11 Human Eye And Colourful World?
a. Score higher marks: Regular practice of Physics Class 10 Assignments for chapter Chapter 11 Human Eye And Colourful World will help to improve understanding and help in solving exam questions correctly.
b. As per CBSE pattern: All questions given above follow the latest Class 10 Physics Sample Papers so that students can prepare as per latest exam pattern.
c. Understand different question types: These assignments include MCQ Questions for Class 10 Physics with answers relating to Chapter 11 Human Eye And Colourful World, short answers, long answers, and also case studies.
d. Improve time management: Daily solving questions from Chapter 11 Human Eye And Colourful World within a set time will improve your speed and accuracy.
e. Boost confidence: Practicing multiple assignments and Class 10 Physics mock tests for Chapter 11 Human Eye And Colourful World reduces exam stress.
How to Solve CBSE Class 10 Physics Chapter 11 Human Eye And Colourful World Assignment effectively?
a. Start with Class 10 NCERT and syllabus topics: Always read the chapter carefully before attempting Assignment questions for Class 10 Physics Chapter 11 Human Eye And Colourful World.
b. Solve without checking answers: You should first attempt the assignment questions on Chapter 11 Human Eye And Colourful World yourself and then compare with provided solutions.
c. Use Class 10 worksheets and revision notes: Refer to NCERT Class 10 Physics worksheets, sample papers, and mock tests for extra practice.
d. Revise tricky topics: Focus on difficult concepts by solving Class 10 Physics MCQ Test.
e. Maintain notebook: Note down mistakes in Chapter 11 Human Eye And Colourful World assignment and read them in Revision notes for Class 10 Physics
How to practice CBSE Class 10 Physics Chapter 11 Human Eye And Colourful World Assignment for best results?
a. Solve assignments daily: Regular practice of Chapter 11 Human Eye And Colourful World questions will strengthen problem solving skills.
b.Use Class 10 study materials: Combine NCERT book for Class 10 Physics, mock tests, sample papers, and worksheets to get a complete preparation experience.
c. Set a timer: Practicing Class 10 Physics Chapter 11 Human Eye And Colourful World assignment under timed conditions improves speed and accuracy.
You can download free Pdf assignments for CBSE Class 10 Physics Chapter 11 Human Eye And Colourful World from StudiesToday.com
All topics given in Chapter 11 Human Eye And Colourful World Physics Class 10 Book for the current academic year have been covered in the given assignment
No, all Printable Assignments for Chapter 11 Human Eye And Colourful World Class 10 Physics have been given for free and can be downloaded in Pdf format
Latest syllabus issued for current academic year by CBSE has been used to design assignments for Chapter 11 Human Eye And Colourful World Class 10
Yes, we have provided detailed answers for all questions given in assignments for Chapter 11 Human Eye And Colourful World Class 10 Physics
