PRACTICE QUESTIONS
CLASS IX: CHAPTER - 9
AREAS OF PARALLELOGRAMS AND TRIANGLES
PRACTICE QUESTIONS
CLASS IX: CHAPTER - 9
AREAS OF PARALLELOGRAMS AND TRIANGLES
1. ABCD is a parallelogram x and y are midpoints of BC and CD respectively. Prove that ar(ΔAXY) = \( \frac{3}{8} \) (▱ABCD)
Answer:
1. Let the area of parallelogram ABCD be S. X is the midpoint of BC and Y is the midpoint of CD.
2. Triangle ABX has base BX = ½ BC and the same height as the parallelogram, so ar(ΔABX) = ½ × ½ S = ¼ S.
3. Triangle ADY has base DY = ½ DC and the same height as the parallelogram, so ar(ΔADY) = ½ × ½ S = ¼ S.
4. Triangle CXY has sides CX = ½ BC and CY = ½ CD with the same included angle C, so ar(ΔCXY) = ½ × (½ BC)(½ CD) sin C = ⅛ BC × CD sin C = ⅛ S.
5. The parallelogram is made of ΔAXY, ΔABX, ΔADY and ΔCXY, so ar(ΔAXY) = S - ¼ S - ¼ S - ⅛ S = \( \frac{3}{8} \) S.
6. Hence ar(ΔAXY) = \( \frac{3}{8} \) ar(▱ABCD).
Teacher's Note:
a) Split the parallelogram into four pieces: three corner triangles and the triangle AXY.
b) Each corner triangle uses the half-base rule, so the midpoints give quarter and eighth areas.
c) Check the total: \( \frac{1}{4} + \frac{1}{4} + \frac{1}{8} + \frac{3}{8} = 1 \), which confirms the result.
2. The medians BE and CF of a triangle ABC intersect at G. Prove that ar(ΔGBC) = area of quadrilateral AFGE.
Answer:
1. Let the area of ΔABC be S. G is the centroid, so GB : BE = 2 : 1.
2. Triangles GBC and EBC have the common vertex C and the bases GB and BE on the same line, so ar(ΔGBC) = \( \frac{2}{3} \) ar(ΔEBC).
3. E is the midpoint of AC, so ar(ΔEBC) = ½ S. Therefore ar(ΔGBC) = \( \frac{1}{3} \) S.
4. Since E is the midpoint of AC, ar(ΔAGE) = ar(ΔGEC). Also GE : BE = 1 : 3, so ar(ΔGEC) = \( \frac{1}{3} \) ar(ΔEBC) = \( \frac{1}{6} \) S. Hence ar(ΔAGE) = \( \frac{1}{6} \) S.
5. Since F is the midpoint of AB, ar(ΔAFG) = ar(ΔGFB). Also GF : CF = 1 : 3, so ar(ΔGFB) = \( \frac{1}{3} \) ar(ΔFBC) = \( \frac{1}{6} \) S. Hence ar(ΔAFG) = \( \frac{1}{6} \) S.
6. ar(quadrilateral AFGE) = ar(ΔAFG) + ar(ΔAGE) = \( \frac{1}{6} \) S + \( \frac{1}{6} \) S = \( \frac{1}{3} \) S.
7. Hence ar(ΔGBC) = ar(AFGE) = \( \frac{1}{3} \) ar(ΔABC).
Teacher's Note:
a) The centroid divides each median in the ratio 2 : 1.
b) Each of the six small triangles around G has one-sixth of the area of ΔABC, which is a useful shortcut.
c) Split the quadrilateral along the diagonal AG to find its area.
3. In fig. PQRS is a square and T and U are respectively, the midpoints of PS and QR. Find the area of ΔOTS if PQ = 8cm.
Answer:
1. Take Q as (0, 0), R as (8, 0), S as (8, 8) and P as (0, 8), so that PQ = 8 cm.
2. T is the midpoint of PS, so T = (4, 8). U is the midpoint of QR, so U = (4, 0).
3. The diagonal QS is the line y = x. TU is the line x = 4, so O = (4, 4).
4. Base TS = 8 - 4 = 4 cm, lying on the line y = 8.
5. Height of ΔOTS from O to the line y = 8 is 8 - 4 = 4 cm.
6. ar(ΔOTS) = ½ × 4 × 4 = 8 cm².
Teacher's Note:
a) Place the square on coordinate axes to read lengths directly.
b) O is the intersection of the diagonal QS with the line TU, which is the centre of the square.
c) The base TS is half of the side PS, so the triangle is one-quarter of the upper half of the square.
4. In fig. ABCD, ABFE and CDEF are parallelograms. Prove that ar(ΔADE) = ar(ΔBCF).
Answer:
1. In parallelogram ABCD, AD = BC (opposite sides).
2. In parallelogram ABFE, AE = BF (opposite sides).
3. The angle ∠DAE is formed by the arms AD and AE. The angle ∠CBF is formed by the arms BC and BF. Since AD ∥ BC and AE ∥ BF in the same direction, ∠DAE = ∠CBF.
4. In ΔADE and ΔBCF, AD = BC, ∠DAE = ∠CBF and AE = BF.
5. By SAS, ΔADE ≅ ΔBCF.
6. Congruent triangles have equal areas, so ar(ΔADE) = ar(ΔBCF).
Teacher's Note:
a) Use the opposite-sides property in both parallelograms to get two pairs of equal sides.
b) The included angle must come from the same direction on both triangles, which the parallel lines guarantee.
c) The third parallelogram CDEF is not needed for this congruence, but it confirms that the figure is consistent.
5. In fig. ABCD is a trapezium in which AB ∥ CD. Prove that area of ΔAOD = area of ΔBOC.
Answer:
1. Triangles ABD and ABC lie on the same base AB and between the same parallels AB and CD.
2. So ar(ΔABD) = ar(ΔABC).
3. ar(ΔABD) = ar(ΔAOB) + ar(ΔAOD), because O lies on the diagonal BD.
4. ar(ΔABC) = ar(ΔAOB) + ar(ΔBOC), because O lies on the diagonal AC.
5. Subtracting the common ar(ΔAOB) from both equal totals gives ar(ΔAOD) = ar(ΔBOC).
Teacher's Note:
a) The key fact is that triangles on the same base and between the same parallels are equal.
b) Subtracting a common part from equal areas keeps them equal.
c) Diagonal decomposition of a trapezium is a standard step in area proofs.
6. The diagonals of parallelogram ABCD intersect at a point O. Through O, a line is drawn to intersect AD at P and BC at Q. Show PQ divides the parallelogram into two parts of equal area.
Answer:
1. Diagonals of a parallelogram bisect each other, so OA = OC and OB = OD.
2. In ΔAOP and ΔCOQ, OA = OC, ∠OAP = ∠OCQ (alternate angles, since AD ∥ BC) and ∠AOP = ∠COQ (vertically opposite angles).
3. By ASA, ΔAOP ≅ ΔCOQ, so ar(ΔAOP) = ar(ΔCOQ).
4. Similarly, ΔBOQ ≅ ΔDOP, so ar(ΔBOQ) = ar(ΔDOP).
5. The part ABQP is made of ΔAOP, ΔAOB and ΔBOQ, since O lies on PQ.
6. The part PDCQ is made of ΔPOD, ΔDOC and ΔCOQ.
7. ar(ΔAOB) = ar(ΔDOC), since both are one-quarter of the parallelogram. Using ar(ΔAOP) = ar(ΔCOQ) and ar(ΔBOQ) = ar(ΔPOD), the two parts have equal area.
8. Hence PQ divides the parallelogram into two parts of equal area.
Teacher's Note:
a) Use the midpoint property of the diagonals to get equal segments.
b) The congruent pairs of triangles do all the work, so match vertical angles and alternate angles carefully.
c) Each part contains exactly two of the congruent triangles and the common triangle AOB or DOC.
7. In the fig. O is any point on the diagonal BD of the parallelogram ABCD. Prove that ar(ΔOAB) = ar(ΔOBC).
Answer:
1. Diagonal BD divides parallelogram ABCD into two equal triangles, so ar(ΔABD) = ar(ΔCBD).
2. Triangles OAB and DAB have the common vertex A, and their bases OB and DB lie on the line BD. So ar(ΔOAB) : ar(ΔDAB) = OB : DB.
3. Triangles OBC and DBC have the common vertex C, and their bases OB and DB lie on the same line BD. So ar(ΔOBC) : ar(ΔDBC) = OB : DB.
4. Both ratios are OB : DB, and ar(ΔDAB) = ar(ΔDBC), so ar(ΔOAB) = ar(ΔOBC).
Teacher's Note:
a) The ratio of areas of two triangles with a common vertex equals the ratio of their bases on one line.
b) The result holds for every position of O on BD, which is why the point can be anywhere.
c) Recognising the common vertex A or C is the main step.
8. Show that the diagonals of a parallelogram divide it into four triangles of equal area.
Answer:
1. Let the diagonals AC and BD intersect at O. Diagonals of a parallelogram bisect each other, so OA = OC and OB = OD.
2. Triangles AOB and BOC have the common vertex B and bases OA and OC on the line AC. Since OA = OC, ar(ΔAOB) = ar(ΔBOC).
3. Triangles COD and DOA have the common vertex D and bases OC and OA on the line AC. Since OA = OC, ar(ΔCOD) = ar(ΔDOA).
4. Triangles AOB and AOD have the common vertex A and bases OB and OD on the line BD. Since OB = OD, ar(ΔAOB) = ar(ΔAOD).
5. Therefore ar(ΔAOB) = ar(ΔBOC) = ar(ΔCOD) = ar(ΔDOA).
Teacher's Note:
a) Equal bases on a common line and a shared vertex always give equal triangles.
b) The four triangles together make the whole parallelogram, so each is one-quarter of it.
c) This is the basis of many later area results.
9. In fig. ABCD is a parallelogram and BC is produced to a point Q such that AD = CQ. If AQ intersects DC at P, show that ar(ΔBPC) = ar(ΔDPQ).
Answer:
1. In parallelogram ABCD, AD = BC. Given AD = CQ, so CQ = BC.
2. AD ∥ BC and CQ lies on BC, so AD ∥ CQ and AD = CQ with the same direction.
3. So ADQC is a parallelogram, and its diagonals AQ and DC bisect each other. Therefore P is the midpoint of DC.
4. Triangles DCQ and BCD have the same height from D to the line BQ, and bases CQ = BC. So ar(ΔDCQ) = ar(ΔBCD) = ½ ar(ABCD).
5. P is the midpoint of DC, so ar(ΔDPQ) = ½ ar(ΔDCQ) = ¼ ar(ABCD).
6. P is the midpoint of DC, so ar(ΔBPC) = ½ ar(ΔBDC) = ¼ ar(ABCD).
7. Hence ar(ΔBPC) = ar(ΔDPQ).
Teacher's Note:
a) Identify the parallelogram ADQC first; it explains why P is a midpoint.
b) Equal bases on the same line BQ give the equal triangles DCQ and BCD.
c) A median-like split of a triangle through a midpoint of a side gives half the area.
10. Prove that “Two parallelograms on the same base and between the same parallels are equal in area”.
Answer:
1. Let ABCD and ABEF be two parallelograms on the same base AB, with D, C, E and F on a line parallel to AB.
2. Let h be the perpendicular distance between the parallel lines AB and DC, which is the same for both parallelograms.
3. Area of a parallelogram = base × corresponding height.
4. ar(ABCD) = AB × h and ar(ABEF) = AB × h.
5. Hence ar(ABCD) = ar(ABEF).
Teacher's Note:
a) Both parallelograms share the same base and the same height, so the product is the same.
b) A Euclidean proof uses congruent triangles ADF and BCE (SSS) and then removes the common part.
c) The parallel lines are what make the heights equal.
11. Prove that “Two triangles on the same base and between the same parallels are equal in area”.
Answer:
1. Let ΔABC and ΔPBC be two triangles on the same base BC, with A and P on a line parallel to BC.
2. Let h be the perpendicular distance between the parallel lines BC and AP.
3. ar(ΔABC) = ½ × BC × h.
4. ar(ΔPBC) = ½ × BC × h.
5. Hence ar(ΔABC) = ar(ΔPBC).
Teacher's Note:
a) The two triangles have the same base and the same height.
b) The height is the perpendicular distance between the two parallel lines.
c) This result is used in many proofs to move a vertex along a line parallel to the base.
12. Prove that a median of a triangle divides it into two equal parts
Answer:
1. Let AD be the median of ΔABC, so D is the midpoint of BC and BD = DC.
2. Let h be the perpendicular distance from A to the line BC.
3. ar(ΔABD) = ½ × BD × h.
4. ar(ΔADC) = ½ × DC × h.
5. Since BD = DC, ar(ΔABD) = ar(ΔADC).
Teacher's Note:
a) Both triangles share the vertex A and the same height.
b) Only the equal bases matter, so the midpoint is the key fact.
c) This result is used in the centroid proofs.
13. If a triangle and a parallelogram are on the same base and between the same parallels, then prove that the area of the triangle is equal to half the area of the parallelogram.
Answer:
1. Let the triangle have base b and let the parallelogram have the same base b.
2. Let h be the distance between the two parallel lines.
3. ar(triangle) = ½ × b × h.
4. ar(parallelogram) = b × h.
5. So ar(triangle) = ½ × ar(parallelogram).
Teacher's Note:
a) A triangle is half of a parallelogram on the same base and height.
b) The parallelogram can be split by a diagonal into two congruent triangles.
c) Use this as a quick check whenever a triangle and a parallelogram share a base.
14. If E,F,G and H are respectively the mid-points of the sides of a parallelogram ABCD, show that ar (EFGH) = \( \frac{1}{2} \) ar (ABCD)
Answer:
1. Let S = ar(ABCD). Let E, F, G, H be the midpoints of AB, BC, CD, DA.
2. The four corner triangles are AEH, BFE, CGF and DHG.
3. In ΔAEH, AE = ½ AB and AH = ½ AD, with the same angle A. So ar(ΔAEH) = ½ × ½ AB × ½ AD × sin A = ⅛ × AB × AD × sin A = ⅛ S.
4. Similarly each of the other three corner triangles has area ⅛ S.
5. Total area of the four corners = 4 × ⅛ S = ½ S.
6. EFGH is the region left after removing the four corners, so ar(EFGH) = S - ½ S = ½ S.
7. Hence ar(EFGH) = \( \frac{1}{2} \) ar(ABCD).
Teacher's Note:
a) Each corner triangle is one-eighth of the parallelogram because its two sides are halves of the sides of ABCD.
b) The four corners together cover half the parallelogram, which leaves half for EFGH.
c) This is a classic midpoint result that also holds for any quadrilateral.
15. Show that the diagonals of a parallelogram divide it into four triangles of equal area.
Answer:
1. Let the diagonals AC and BD intersect at O. Diagonals of a parallelogram bisect each other, so OA = OC and OB = OD.
2. Triangles AOB and BOC have the common vertex B and bases OA and OC on the line AC. Since OA = OC, ar(ΔAOB) = ar(ΔBOC).
3. Triangles COD and DOA have the common vertex D and bases OC and OA on the line AC. Since OA = OC, ar(ΔCOD) = ar(ΔDOA).
4. Triangles AOB and AOD have the common vertex A and bases OB and OD on the line BD. Since OB = OD, ar(ΔAOB) = ar(ΔAOD).
5. Therefore ar(ΔAOB) = ar(ΔBOC) = ar(ΔCOD) = ar(ΔDOA).
Teacher's Note:
a) Equal bases on a common line and a shared vertex always give equal triangles.
b) The four triangles together make the whole parallelogram, so each is one-quarter of it.
c) This is the basis of many later area results.
16. D and E are points on sides AB and AC respectively of ΔABC such that ar (DBC) = ar (EBC). Prove that DE ∥ BC.
Answer:
1. ΔDBC and ΔEBC have the same base BC.
2. Their areas are equal, so their heights from BC are equal: the perpendicular distance from D to BC equals that from E to BC.
3. D and E lie on the same side of BC, since they are on the sides AB and AC of the triangle.
4. Points at equal distance from a line on the same side lie on a line parallel to it.
5. Hence DE ∥ BC.
Teacher's Note:
a) Equal areas on a common base mean equal heights.
b) The condition same side is essential, because points on opposite sides would not give parallel lines.
c) This is the converse of the statement about triangles on the same base.
17. XY is a line parallel to side BC of a triangle ABC. If BE ∥ AC and CF ∥ AB meet XY at E and F respectively, show that ar (ABE) = ar (ACF)
Answer:
1. ΔABE and ΔCBE have the common base BE. Their vertices A and C lie on the line AC, which is parallel to BE. So ar(ΔABE) = ar(ΔCBE).
2. ΔEBC and ΔFBC have the common base BC. E and F both lie on the line XY, which is parallel to BC. So ar(ΔEBC) = ar(ΔFBC).
3. ΔACF and ΔBCF have the common base CF. Their vertices A and B lie on the line AB, which is parallel to CF. So ar(ΔACF) = ar(ΔBCF).
4. Since ΔBCF = ΔFBC, ar(ΔACF) = ar(ΔFBC).
5. Combining the results: ar(ΔABE) = ar(ΔCBE) = ar(ΔFBC) = ar(ΔACF).
6. Hence ar(ΔABE) = ar(ΔACF).
Teacher's Note:
a) Each equality uses the same idea: a common base with the third vertices on a parallel line.
b) The line XY is the bridge that links the two triangles.
c) Draw the parallels first to see which vertices lie on which line.

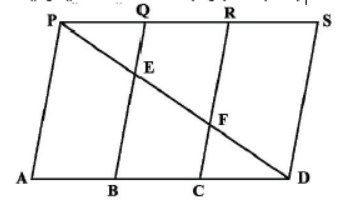

18. In the below figure PSDA is a parallelogram. Points Q and R are taken on PS such that PQ = QR = RS and PA ∥ QB ∥ RC. Prove that ar (PQE) = ar (CFD).
Answer:
1. PQ = QR = RS = ⅓ PS = ⅓ AD. Since PA ∥ QB ∥ RC, the intercept theorem gives AB = BC = CD = ⅓ AD.
2. PQBA is a parallelogram, since PQ ∥ AB and QB ∥ PA. So QB = PA.
3. In ΔDBE and ΔDAP, BE ∥ AP, so ΔDBE ∼ ΔDAP with ratio DB : DA = ⅔. So BE = ⅔ AP.
4. QE = QB - BE = AP - ⅔ AP = ⅓ AP.
5. Similarly, in ΔDCF and ΔDAP, CF ∥ AP and DC : DA = ⅓, so CF = ⅓ AP.
6. Hence QE = CF.
7. PQ = CD (both equal ⅓ AD), and PQ ∥ CD because both lie on the sides parallel to AD.
8. The angles ∠PQE and ∠DCF have arms in opposite directions along parallel lines, so they are equal.
9. By SAS, ΔPQE ≅ ΔDCF, so ar(ΔPQE) = ar(ΔCFD).
Teacher's Note:
a) Use the intercept theorem to find equal parts on AD first.
b) Parallelogram PQBA gives the length QB directly.
c) Two similar triangles with ratios ⅔ and ⅓ give the lengths of QE and CF.

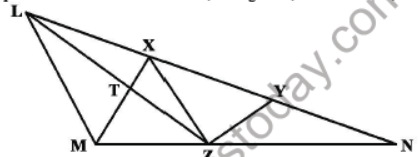

19. X and Y are points on the side LN of the triangle LMN such that LX = XY = YN. Through X, a line is drawn parallel to LM to meet MN at Z (See Fig. 9.12). Prove that ar (LZY) = ar (MZYX)
Answer:
1. XZ ∥ LM, and L and M both lie on the line LM.
2. ΔLZX and ΔMZX have the common base ZX, and their vertices L and M lie on the line LM, which is parallel to ZX. So ar(ΔLZX) = ar(ΔMZX).
3. X lies on the segment LY, so ar(ΔLZY) = ar(ΔLZX) + ar(ΔXZY).
4. The quadrilateral MZYX is divided by the diagonal ZX into ΔMZX and ΔZYX. So ar(MZYX) = ar(ΔMZX) + ar(ΔXZY).
5. Since ar(ΔLZX) = ar(ΔMZX), it follows that ar(ΔLZY) = ar(MZYX).
Teacher's Note:
a) A line parallel to a side keeps the area of triangles sharing a base on that line.
b) Splitting the triangle and the quadrilateral by the same segment ZX gives matching parts.
c) The equal thirds on LN are not needed for the area result itself.

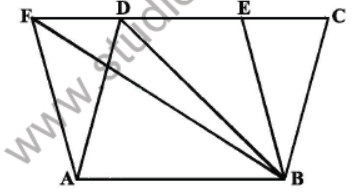

20. The area of the parallelogram ABCD is 90 cm². Find (i) ar (ABEF) (ii) ar (ABD) (iii) ar (BEF)
Answer:
1. ABEF is a parallelogram on the same base AB as ABCD, and lies between the same parallel lines AB and DC.
2. (i) ar(ABEF) = ar(ABCD) = 90 cm².
3. (ii) The diagonal BD divides parallelogram ABCD into two equal triangles, so ar(ABD) = ½ × ar(ABCD) = ½ × 90 = 45 cm².
4. (iii) The diagonal BF divides parallelogram ABEF into two equal triangles, so ar(BEF) = ½ × ar(ABEF) = ½ × 90 = 45 cm².
Teacher's Note:
a) Parallelograms on the same base and between the same parallels have equal areas.
b) A diagonal always halves a parallelogram, which gives both (ii) and (iii).
c) Check the diagram: the points E and F lie on the line DC produced, so ABEF has the same height as ABCD.
21. In ΔABC, D is the mid-point of AB and P is any point on BC. If CQ ∥ PD meets AB in Q, then prove that ar (BPQ) = \( \frac{1}{2} \) ar (ABC).
Answer:
1. ΔDPC and ΔDPQ have the common base DP. Their vertices C and Q lie on the line CQ, which is parallel to DP. So ar(ΔDPQ) = ar(ΔDPC).
2. Q lies on the segment BD produced beyond D, so ar(ΔBPQ) = ar(ΔBPD) + ar(ΔDPQ).
3. P lies on BC, so ar(ΔBDC) = ar(ΔBPD) + ar(ΔDPC).
4. Therefore ar(ΔBPQ) = ar(ΔBPD) + ar(ΔDPC) = ar(ΔBDC).
5. D is the midpoint of AB, so ar(ΔBDC) = ½ ar(ΔABC).
6. Hence ar(ΔBPQ) = \( \frac{1}{2} \) ar(ABC).
Teacher's Note:
a) A line through a midpoint of a side splits the triangle into two equal parts.
b) The parallel line CQ moves the vertex Q without changing the area of ΔDPQ.
c) Check that Q lies on AB in the correct order: B, D, Q, A.
22. ABCD is a square. E and F are respectively the midpoints of BC and CD. If R is the mid-point of EF, prove that ar (AER) = ar (AFR)
Answer:
1. R is the midpoint of EF, so ER = RF.
2. Triangles AER and AFR have the common vertex A, and their bases ER and RF lie on the same line EF.
3. Since ER = RF and the height from A to EF is the same for both triangles, ar(ΔAER) = ar(ΔAFR).
4. Hence ar(AER) = ar(AFR).
Teacher's Note:
a) Two triangles with a common vertex and equal bases on one line have equal areas.
b) The result does not depend on the square; any parallelogram gives the same answer.
c) The median-style argument is used again in later problems.

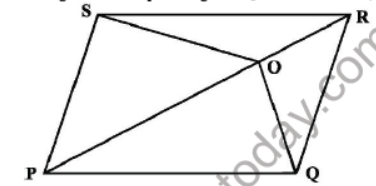

23. O is any point on the diagonal PR of a parallelogram PQRS. Prove that ar (PSO) = ar (PQO).
Answer:
1. ar(ΔPSR) = ar(ΔPQR), since the diagonal PR divides the parallelogram into two equal triangles.
2. Triangles PSO and PSR have the common vertex S, and their bases PO and PR lie on the line PR. So ar(ΔPSO) : ar(ΔPSR) = PO : PR.
3. Triangles PQO and PQR have the common vertex Q, and their bases PO and PR lie on the line PR. So ar(ΔPQO) : ar(ΔPQR) = PO : PR.
4. Since ar(ΔPSR) = ar(ΔPQR), it follows that ar(ΔPSO) = ar(ΔPQO).
Teacher's Note:
a) The ratio of areas equals the ratio of the bases on the common line PR.
b) The result holds for every point O on the diagonal.
c) The diagonal of a parallelogram always gives two triangles of equal area.
24. ABCD is a parallelogram in which BC is produced to E such that CE = BC. AE intersects CD at F. If ar (DFB) = 3 cm², find the area of the parallelogram ABCD.
Answer:
1. Let ar(ABCD) = S. Triangle DFB has base DF on the line DC and height equal to the perpendicular distance from B to DC.
2. Since AE meets DC at F, and E is the reflection of B in C, the segment AE is bisected by the line DC. Therefore F is the midpoint of DC, so DF = ½ DC.
3. Triangle DFB has base DF = ½ DC and the same height as parallelogram ABCD, so ar(ΔDFB) = ½ × ½ × S = ¼ S.
4. Given ar(ΔDFB) = 3 cm², so ¼ S = 3.
5. S = 12 cm².
6. Hence ar(ABCD) = 12 cm².
Teacher's Note:
a) E is the reflection of B in C, so the line AE passes through the midpoint of DC.
b) The triangle DFB is one-quarter of the parallelogram because of the half base and half height structure.
c) Always check the height used is the distance between the parallel lines AB and DC.

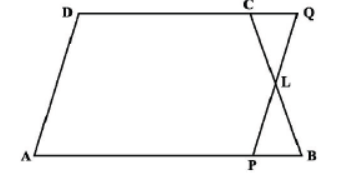

25. In trapezium ABCD, AB ∥ DC and L is the mid-point of BC. Through L, a line PQ ∥ AD has been drawn which meets AB in P and DC produced in Q. Prove that ar (ABCD) = ar (APQD).
Answer:
1. In ΔLBP and ΔLCQ, LB = LC (L is the midpoint of BC).
2. ∠LBP = ∠LCQ (alternate angles, since AB ∥ DQ with transversal BC).
3. ∠BLP = ∠CLQ (vertically opposite angles).
4. By ASA, ΔLBP ≅ ΔLCQ, so ar(ΔLBP) = ar(ΔLCQ).
5. ar(ABCD) = ar(ABLD) + ar(ΔDLC), since DL divides ABCD.
6. ar(APQD) = ar(APLD) + ar(ΔDLQ), since DL divides APQD.
7. ar(ABLD) = ar(APLD) + ar(ΔPBL), since PL divides ABLD.
8. ar(ΔDLQ) = ar(ΔDLC) + ar(ΔCLQ), since C lies on DQ.
9. Therefore ar(ABCD) - ar(APQD) = ar(ΔPBL) - ar(ΔCLQ) = 0.
10. Hence ar(ABCD) = ar(APQD).
Teacher's Note:
a) The congruent triangles LBP and LCQ are the key to the whole proof.
b) Cut both quadrilaterals along DL to compare their parts.
c) Alternate and vertical angles give the matching congruence.
26. If the mid-points of the sides of a quadrilateral are joined in order, prove that the area of the parallelogram so formed will be half of the area of the given quadrilateral.
Answer:
1. Let ABCD be the quadrilateral and P, Q, R, S the midpoints of AB, BC, CD, DA. Join AC.
2. In ΔAPS and ΔABD, AP = ½ AB and AS = ½ AD. So ar(ΔAPS) = ¼ ar(ΔABD).
3. Similarly ar(ΔCQR) = ¼ ar(ΔCBD).
4. Adding, ar(ΔAPS) + ar(ΔCQR) = ¼ ar(ABCD).
5. In ΔBPQ and ΔBAC, ar(ΔBPQ) = ¼ ar(ΔBAC), and similarly ar(ΔDRS) = ¼ ar(ΔDAC).
6. So ar(ΔBPQ) + ar(ΔDRS) = ¼ ar(ABCD).
7. The four corner triangles together have area ½ ar(ABCD), so the inner parallelogram PQRS has area ½ ar(ABCD).
8. PQRS is a parallelogram, because PQ ∥ AC ∥ SR and PQ = SR = ½ AC.
9. Hence the parallelogram PQRS is half the area of ABCD.
Teacher's Note:
a) Each corner triangle is one-quarter of the triangle it sits in, because of the midpoints.
b) Splitting the quadrilateral along the diagonal AC makes the corners easy to count.
c) This is known as Varignon's theorem.
27. In the below figure, l, m, n, are straight lines such that l ∥ m and n intersects l at P and m at Q. ABCD is a quadrilateral such that its vertex A is on l. The vertices C and D are on m and AD ∥ n. Show that ar (ABCQ) = ar (ABCDP)
Answer:
1. ABCQ is made of ABCD and ΔADQ, since D lies on CQ.
2. ABCDP is made of ABCD and ΔADP, since P lies outside ABCD on the other side of AD.
3. Triangles ADP and ADQ have the common base AD.
4. P and Q both lie on the line n, which is parallel to AD (because AD ∥ n).
5. So the heights of ΔADP and ΔADQ from AD are equal, giving ar(ΔADP) = ar(ΔADQ).
6. Therefore ar(ABCQ) = ar(ABCD) + ar(ΔADQ) = ar(ABCD) + ar(ΔADP) = ar(ABCDP).
Teacher's Note:
a) The condition AD ∥ n is what makes the two triangles equal.
b) Both extra triangles lie on the same side of AD, so they simply add to ABCD.
c) The parallel lines l and m are needed only to position A, P, C, D and Q.
28. In the below figure, BD ∥ CA, E is mid-point of CA and BD = ½ CA. Prove that ar (ABC) = 2ar (DBC).
Answer:
1. E is the midpoint of CA, so CE = ½ CA.
2. Given BD = ½ CA, so BD = CE.
3. BD ∥ CA, so BD ∥ CE. A quadrilateral with one pair of opposite sides equal and parallel is a parallelogram, so BDEC is a parallelogram.
4. In a parallelogram BDEC, DE ∥ BC.
5. Triangles DBC and EBC have the common base BC and their vertices D and E lie on the line DE, which is parallel to BC. So ar(ΔDBC) = ar(ΔEBC).
6. E is the midpoint of AC, so ar(ΔEBC) = ½ ar(ΔABC).
7. Therefore ar(ΔDBC) = ½ ar(ΔABC), which gives ar(ΔABC) = 2 ar(ΔDBC).
Teacher's Note:
a) BD = CE together with BD ∥ CE makes BDEC a parallelogram.
b) Once DE ∥ BC is known, the equal-base rule applies at once.
c) The midpoint E splits triangle ABC into two equal halves along BE.
29. In the below figure, ABCD is a parallelogram. Points P and Q on BC trisects BC in three equal parts. Prove that ar (APQ) = ar (DPQ) = \( \frac{1}{6} \) ar(ABCD)
Answer:
1. Let h be the perpendicular distance between the parallel lines AD and BC. Then ar(ABCD) = BC × h.
2. P and Q trisect BC, so PQ = \( \frac{1}{3} \) BC.
3. ΔAPQ has base PQ on BC and height h from A. So ar(ΔAPQ) = ½ × \( \frac{1}{3} \) BC × h = \( \frac{1}{6} \) BC × h = \( \frac{1}{6} \) ar(ABCD).
4. ΔDPQ has base PQ on BC and height h from D. So ar(ΔDPQ) = ½ × \( \frac{1}{3} \) BC × h = \( \frac{1}{6} \) ar(ABCD).
5. Hence ar(ΔAPQ) = ar(ΔDPQ) = \( \frac{1}{6} \) ar(ABCD).
Teacher's Note:
a) Both triangles share the base PQ, which is one-third of BC.
b) The height is the same for A and D because AD is parallel to BC.
c) The factor one-half from the triangle formula and one-third from the trisection give one-sixth.
30. A point E is taken on the side BC of a parallelogram ABCD. AE and DC are produced to meet at F. Prove that ar (ADF) = ar (ABFC)
Answer:
1. In parallelogram ABCD, AB ∥ DC. Since F lies on DC produced, AB ∥ CF.
2. Triangles ACF and BCF have the common base CF, and their vertices A and B lie on the line AB, which is parallel to CF. So ar(ΔACF) = ar(ΔBCF).
3. ar(ΔADF) = ar(ΔADC) + ar(ΔACF), since C lies on DF.
4. ar(ABFC) = ar(ΔABC) + ar(ΔBCF), since BC divides ABFC.
5. In parallelogram ABCD, ar(ΔADC) = ar(ΔABC), because each is half the parallelogram.
6. Therefore ar(ADF) = ar(ADC) + ar(ACF) = ar(ABC) + ar(BCF) = ar(ABFC).
7. Hence ar(ADF) = ar(ABFC).
Teacher's Note:
a) The parallel sides AB and CF give the equal triangles ACF and BCF.
b) Each triangle of a parallelogram cut by a diagonal is half the parallelogram.
c) Splitting both regions into triangles makes the comparison simple.
31. The diagonals of parallelogram ABCD intersect at a point O. Through O, a line is drawn to intersect AD at P and BC at Q. Show PQ divides the parallelogram into two parts of equal area.
Answer:
1. Diagonals of a parallelogram bisect each other, so OA = OC and OB = OD.
2. In ΔAOP and ΔCOQ, OA = OC, ∠OAP = ∠OCQ (alternate angles, since AD ∥ BC) and ∠AOP = ∠COQ (vertically opposite angles).
3. By ASA, ΔAOP ≅ ΔCOQ, so ar(ΔAOP) = ar(ΔCOQ).
4. Similarly, ΔBOQ ≅ ΔDOP, so ar(ΔBOQ) = ar(ΔDOP).
5. The part ABQP is made of ΔAOP, ΔAOB and ΔBOQ, since O lies on PQ.
6. The part PDCQ is made of ΔPOD, ΔDOC and ΔCOQ.
7. ar(ΔAOB) = ar(ΔDOC), since both are one-quarter of the parallelogram. Using ar(ΔAOP) = ar(ΔCOQ) and ar(ΔBOQ) = ar(ΔPOD), the two parts have equal area.
8. Hence PQ divides the parallelogram into two parts of equal area.
Teacher's Note:
a) Use the midpoint property of the diagonals to get equal segments.
b) The congruent pairs of triangles do all the work, so match vertical angles and alternate angles carefully.
c) Each part contains exactly two of the congruent triangles and the common triangle AOB or DOC.
32. In the below figure, X and Y are the mid-points of AC and AB respectively, QP ∥ BC and CYQ and BXP are straight lines. Prove that ar (ABP) = ar (ACQ).
Answer:
1. In ΔAXP and ΔCXB, AX = CX (X is the midpoint of AC), ∠AXP = ∠CXB (vertically opposite angles), and ∠XAP = ∠XCB (alternate angles, since AP ∥ BC).
2. By ASA, ΔAXP ≅ ΔCXB, so AP = CB.
3. In ΔAYQ and ΔBYC, AY = BY (Y is the midpoint of AB), ∠AYQ = ∠BYC (vertically opposite angles), and ∠YAQ = ∠YBC (alternate angles, since AQ ∥ BC).
4. By ASA, ΔAYQ ≅ ΔBYC, so AQ = BC.
5. Hence AP = AQ = BC.
6. The distance from B to the line QP equals the distance from C to the line QP, which is the same as the distance between the parallel lines QP and BC.
7. ar(ΔABP) = ½ × AP × h and ar(ΔACQ) = ½ × AQ × h, where h is the distance between QP and BC.
8. Since AP = AQ, ar(ΔABP) = ar(ΔACQ).
Teacher's Note:
a) The midpoints X and Y give congruent triangles with vertical and alternate angles.
b) Both triangles have the same height because they share the parallel line QP.
c) The equal sides AP and AQ are the central result.
33. Parallelogram ABCD and rectangle ABEF are on the same base AB and have equal areas. Show that the perimeter of the parallelogram is greater than that of the rectangle.
Answer:
1. Both figures have the same base AB and equal areas, so they have the same height h.
2. In the rectangle ABEF, the side AF is perpendicular to AB, so AF = h.
3. In the parallelogram ABCD, the side AD is slanted, so AD is the hypotenuse of a right triangle whose perpendicular leg is h. Therefore AD ≥ h, with equality only if AD is perpendicular to AB.
4. So AD > AF when ABCD is not a rectangle.
5. Perimeter of ABCD = 2(AB + AD) > 2(AB + AF) = perimeter of ABEF.
6. Hence the perimeter of the parallelogram is greater than that of the rectangle.
Teacher's Note:
a) Equal bases and equal areas force equal heights.
b) A slanted side is always longer than the perpendicular distance between the parallel sides.
c) If the parallelogram is itself a rectangle, the two perimeters are equal, so the statement needs the parallelogram to be slanted.
34. In the below figure, ABCD and AEFD are two parallelograms. Prove that ar (PEA) = ar (QFD)
Answer:
1. In parallelogram AEFD, EF ∥ AD and EF = AD. The line EF, produced, meets AB at P and DC at Q, as shown in the figure.
2. PQ lies on the same line as EF, so PQ ∥ AD.
3. In quadrilateral APQD, AP ∥ DQ (since AB ∥ DC) and PQ ∥ AD. So APQD is a parallelogram, and PQ = AD.
4. Hence PQ = AD = EF.
5. On the line through E, P, F and Q, the order is E, P, F, Q. From EF = PQ we get EP + PF = PF + FQ, so EP = FQ.
6. A and D both lie on the line AD, which is parallel to PQ, so their perpendicular distances to PQ are equal. Let this distance be h.
7. ar(ΔPEA) = ½ × EP × h and ar(ΔQFD) = ½ × FQ × h.
8. Since EP = FQ, ar(ΔPEA) = ar(ΔQFD).
Teacher's Note:
a) Parallel lines EF and AD make the line through E, F the common reference line.
b) APQD is a parallelogram, which links PQ to AD directly.
c) The figure shows E, P, F and Q in that order on one straight line, which is what makes EP = FQ.
35. In the below figure, ABCDE is any pentagon. BP drawn parallel to AC meets DC produced at P and EQ drawn parallel to AD meets CD produced at Q. Prove that ar (ABCDE) = ar (APQ)
Answer:
1. ΔABC and ΔAPC have the common base AC. Since BP ∥ AC, B and P lie on a line parallel to AC, so ar(ΔABC) = ar(ΔAPC).
2. ΔAED and ΔAQD have the common base AD. Since EQ ∥ AD, E and Q lie on a line parallel to AD, so ar(ΔAED) = ar(ΔAQD).
3. ar(ABCDE) = ar(ΔABC) + ar(ΔACD) + ar(ΔADE), since the diagonals AC and AD divide the pentagon.
4. Substituting, ar(ABCDE) = ar(ΔAPC) + ar(ΔACD) + ar(ΔAQD).
5. P, C, D and Q lie on one straight line, with C and D between P and Q. So ΔAPQ is split by AC and AD into ΔAPC, ΔACD and ΔADQ.
6. Therefore ar(ABCDE) = ar(ΔAPQ).
Teacher's Note:
a) Each parallel line replaces one triangle with an equal triangle on the same base.
b) The three triangles APC, ACD and AQD fill the triangle APQ exactly.
c) This is the standard way to turn any polygon into a single triangle with the same area.
36. In the below figure, CD ∥ AE and CY ∥ BA. Prove that ar (CBX) = ar (AXY)
Answer:
1. Points B, X and Y lie on one straight line, and X lies on the line joining A and C.
2. CY ∥ BA, so Y and C lie on a line parallel to AB. Triangles ABY and ABC have the common base AB, so ar(ΔABY) = ar(ΔABC).
3. X lies on the segment BY, so ar(ΔABY) = ar(ΔABX) + ar(ΔAXY).
4. X lies on the segment AC, so ar(ΔABC) = ar(ΔABX) + ar(ΔBXC).
5. From ar(ΔABY) = ar(ΔABC), we get ar(ΔABX) + ar(ΔAXY) = ar(ΔABX) + ar(ΔBXC).
6. Removing the common ar(ΔABX) gives ar(ΔAXY) = ar(ΔBXC).
7. Hence ar(ΔCBX) = ar(ΔAXY).
Teacher's Note:
a) A line parallel to a side transfers a vertex without changing the area.
b) Splitting one triangle along BX and along AC gives the matching pieces.
c) The condition CD ∥ AE is not needed for this result.

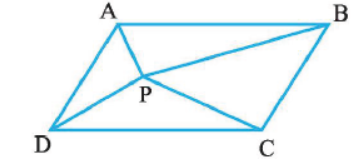

37. In fig. P is a point in the interior of a parallelogram ABCD. Show that (i) ar (APB) + ar (PCD) = \( \frac{1}{2} \) ar (ABCD) (ii) ar (APD) + ar (PBC) = ar (APB) + ar (PCD)
Answer:
1. Let h be the distance between the parallel lines AB and CD, so ar(ABCD) = AB × h.
2. Draw the perpendicular distances from P to AB and to CD. Call them h₁ and h₂. Since P lies between AB and CD, h₁ + h₂ = h.
3. (i) ar(ΔAPB) = ½ × AB × h₁ and ar(ΔPCD) = ½ × CD × h₂. Since AB = CD, the sum is ½ × AB × (h₁ + h₂) = ½ × AB × h = ½ ar(ABCD).
4. (ii) Let k be the distance between the parallel lines AD and BC, and let k₁ and k₂ be the distances from P to AD and BC, so k₁ + k₂ = k.
5. ar(ΔAPD) + ar(ΔPBC) = ½ × AD × k₁ + ½ × BC × k₂ = ½ × AD × (k₁ + k₂) = ½ × AD × k = ½ ar(ABCD).
6. From (i), ar(APB) + ar(PCD) = ½ ar(ABCD). So ar(APD) + ar(PBC) = ar(APB) + ar(PCD).
Teacher's Note:
a) Two triangles on the opposite sides of P add up to exactly half the parallelogram.
b) The point P must lie inside, so that the distances add to the full height.
c) Part (ii) uses the other pair of parallel sides, which gives the same half.
38. In Fig. ABCD is a quadrilateral and BE ∥ AC and also BE meets DC produced at E. Show that area of ΔADE is equal to the area of the quadrilateral ABCD.
Answer:
1. ΔACE and ΔACB have the common base AC. Since BE ∥ AC, B and E lie on a line parallel to AC, so ar(ΔACE) = ar(ΔACB).
2. ΔADE is split by AC into ΔACD and ΔACE, since C lies on DE. So ar(ΔADE) = ar(ΔACD) + ar(ΔACE).
3. Quadrilateral ABCD is split by AC into ΔABC and ΔACD, so ar(ABCD) = ar(ΔABC) + ar(ΔACD).
4. Substituting ar(ΔACE) = ar(ΔACB), we get ar(ΔADE) = ar(ΔACD) + ar(ΔABC).
5. Hence ar(ΔADE) = ar(ABCD).
Teacher's Note:
a) The parallel BE lets you replace triangle ABC by triangle ACE on the same base.
b) Since C lies on DE, the line AC splits triangle ADE neatly.
c) The result gives a triangle with the same area as any quadrilateral.
39. Diagonals AC and BD of a trapezium ABCD with AB ∥ DC intersect each other at O. Prove that ar (AOD) = ar (BOC).
Answer:
1. ΔABD and ΔABC have the common base AB, and D and C lie on the line DC, which is parallel to AB. So ar(ΔABD) = ar(ΔABC).
2. ar(ΔABD) = ar(ΔAOB) + ar(ΔAOD), since O lies on BD.
3. ar(ΔABC) = ar(ΔAOB) + ar(ΔBOC), since O lies on AC.
4. Subtracting the common ar(ΔAOB) gives ar(ΔAOD) = ar(ΔBOC).
5. Hence ar(AOD) = ar(BOC).
Teacher's Note:
a) This is the same idea as Question 5, applied with the diagonals meeting at O.
b) Common parts can be subtracted from equal areas.
c) The equal-base step uses the parallel sides AB and DC.
40. Diagonals AC and BD of a quadrilateral ABCD intersect each other at O such that ar (AOD) = ar (BOC). Prove that ABCD is a trapezium.
Answer:
1. Given ar(ΔAOD) = ar(ΔBOC).
2. ar(ΔABD) = ar(ΔAOB) + ar(ΔAOD), since O lies on BD.
3. ar(ΔABC) = ar(ΔAOB) + ar(ΔBOC), since O lies on AC.
4. Since ar(ΔAOD) = ar(ΔBOC), it follows that ar(ΔABD) = ar(ΔABC).
5. Triangles ABD and ABC have the common base AB and equal areas, so their vertices D and C are at equal distances from AB.
6. C and D lie on the same side of AB (ABCD is a convex quadrilateral), so DC ∥ AB.
7. Hence ABCD is a trapezium with AB ∥ DC.
Teacher's Note:
a) Equal areas on a common base mean equal heights.
b) The same side condition is essential, because points on opposite sides would not give a parallel line.
c) The converse of the trapezium area result (Question 39) is proved here.
41. ABCD is a trapezium with AB ∥ DC. A line parallel to AC intersects AB at X and BC at Y. Prove that ar (ADX) = ar (ACY).
Answer:
1. X and Y lie on a line parallel to AC, so triangles ACX and ACY have the common base AC and equal heights. Hence ar(ΔACX) = ar(ΔACY).
2. Triangles ADX and ACX have the common base AX on the line AB, and their vertices D and C lie on the line DC, which is parallel to AB. So ar(ΔADX) = ar(ΔACX).
3. Therefore ar(ΔADX) = ar(ΔACX) = ar(ΔACY).
4. Hence ar(ADX) = ar(ACY).
Teacher's Note:
a) The parallel to AC makes X and Y equally placed with respect to AC.
b) The parallel sides AB and DC make D and C equally far from AX.
c) Two equalities chained together give the result.
42. In the above Fig. AP ∥ BQ ∥ CR. Prove that ar (AQC) = ar (PBR).
Answer:
1. From the figure, B is the midpoint of AC and Q is the midpoint of PR.
2. In ΔAQC, the line QB is a median since B is the midpoint of AC. So ar(ΔAQC) = 2 ar(ΔABQ).
3. ΔABQ and ΔPBQ have the common base BQ, and A and P lie on the line AP, which is parallel to BQ. So ar(ΔABQ) = ar(ΔPBQ).
4. In ΔPBR, the line BQ is a median since Q is the midpoint of PR. So ar(ΔPBR) = 2 ar(ΔPBQ).
5. Therefore ar(ΔAQC) = 2 ar(ΔABQ) = 2 ar(ΔPBQ) = ar(ΔPBR).
6. Hence ar(AQC) = ar(PBR).
Teacher's Note:
a) The median property of a triangle does the work once the midpoints are identified from the figure.
b) AP ∥ BQ is the key parallel that makes ΔABQ and ΔPBQ equal.
c) The figure, not the question text alone, shows that B and Q are midpoints.
43. Diagonals AC and BD of a quadrilateral ABCD intersect at O in such a way that ar (AOD) = ar (BOC). Prove that ABCD is a trapezium.
Answer:
1. Given ar(ΔAOD) = ar(ΔBOC).
2. ar(ΔABD) = ar(ΔAOB) + ar(ΔAOD), since O lies on BD.
3. ar(ΔABC) = ar(ΔAOB) + ar(ΔBOC), since O lies on AC.
4. Since ar(ΔAOD) = ar(ΔBOC), it follows that ar(ΔABD) = ar(ΔABC).
5. Triangles ABD and ABC have the common base AB and equal areas, so their vertices D and C are at equal distances from AB.
6. C and D lie on the same side of AB (ABCD is a convex quadrilateral), so DC ∥ AB.
7. Hence ABCD is a trapezium with AB ∥ DC.
Teacher's Note:
a) Equal areas on a common base mean equal heights.
b) The same side condition is essential, because points on opposite sides would not give a parallel line.
c) The converse of the trapezium area result (Question 39) is proved here.
44. The medians BE and CF of a triangle ABC intersect at G. Prove that the area of ΔGBC = area of the quadrilateral AFGE.
Answer:
1. Let the area of ΔABC be S. G is the centroid, so GB : BE = 2 : 1.
2. Triangles GBC and EBC have the common vertex C and the bases GB and BE on the same line, so ar(ΔGBC) = \( \frac{2}{3} \) ar(ΔEBC).
3. E is the midpoint of AC, so ar(ΔEBC) = ½ S. Therefore ar(ΔGBC) = \( \frac{1}{3} \) S.
4. Since E is the midpoint of AC, ar(ΔAGE) = ar(ΔGEC). Also GE : BE = 1 : 3, so ar(ΔGEC) = \( \frac{1}{3} \) ar(ΔEBC) = \( \frac{1}{6} \) S. Hence ar(ΔAGE) = \( \frac{1}{6} \) S.
5. Since F is the midpoint of AB, ar(ΔAFG) = ar(ΔGFB). Also GF : CF = 1 : 3, so ar(ΔGFB) = \( \frac{1}{3} \) ar(ΔFBC) = \( \frac{1}{6} \) S. Hence ar(ΔAFG) = \( \frac{1}{6} \) S.
6. ar(quadrilateral AFGE) = ar(ΔAFG) + ar(ΔAGE) = \( \frac{1}{6} \) S + \( \frac{1}{6} \) S = \( \frac{1}{3} \) S.
7. Hence ar(ΔGBC) = ar(AFGE) = \( \frac{1}{3} \) ar(ΔABC).
Teacher's Note:
a) The centroid divides each median in the ratio 2 : 1.
b) Each of the six small triangles around G has one-sixth of the area of ΔABC, which is a useful shortcut.
c) Split the quadrilateral along the diagonal AG to find its area.
45. Diagonals AC and BD of a quadrilateral ABCD intersect each other at P. Show that ar (APB) × ar (CPD) = ar (APD) × ar (BPC).
Answer:
1. Let θ = ∠APB. Then ∠CPD = θ (vertically opposite), and ∠APD = ∠BPC = 180° - θ, so both have sine sin θ.
2. ar(ΔAPB) = ½ × AP × BP × sin θ.
3. ar(ΔCPD) = ½ × CP × DP × sin θ.
4. ar(ΔAPD) = ½ × AP × DP × sin θ, and ar(ΔBPC) = ½ × BP × CP × sin θ.
5. Product on the left = ¼ × AP × BP × CP × DP × sin²θ.
6. Product on the right = ¼ × AP × DP × BP × CP × sin²θ.
7. The two products are equal.
Teacher's Note:
a) Use the formula area = ½ × two sides × sine of the included angle.
b) Supplementary angles have equal sines, which is why the two triangles on each diagonal match.
c) Comparing products rather than sums avoids needing any individual area.
46. ABCD is a trapezium in which AB ∥ DC, DC = 30 cm and AB = 50 cm. If X and Y are, respectively the mid-points of AD and BC, prove that ar (DCYX) = \( \frac{7}{9} \) ar (XYBA)
Answer:
1. X and Y are midpoints of the legs, so XY ∥ AB ∥ DC and XY = ½ (AB + DC) = ½ (50 + 30) = 40 cm.
2. Let h be the distance between the parallel lines AB and DC. XY lies midway, so the distance from XY to each of AB and DC is \( \frac{h}{2} \).
3. ar(DCYX) = ½ × (DC + XY) × \( \frac{h}{2} \) = ½ × (30 + 40) × \( \frac{h}{2} \) = \( \frac{70h}{4} \) = 17.5h.
4. ar(XYBA) = ½ × (XY + AB) × \( \frac{h}{2} \) = ½ × (40 + 50) × \( \frac{h}{2} \) = \( \frac{90h}{4} \) = 22.5h.
5. Ratio = \( \frac{17.5h}{22.5h} \) = \( \frac{7}{9} \).
6. Hence ar(DCYX) = \( \frac{7}{9} \) ar(XYBA).
Teacher's Note:
a) The midline of a trapezium is the average of its parallel sides.
b) Both parts have the same height h/2, so the ratio depends only on the parallel sides.
c) Keep the fraction exact: 17.5 over 22.5 simplifies to 7 over 9.
47. In ΔABC, if L and M are the points on AB and AC, respectively such that LM ∥ BC. Prove that ar (LOB) = ar (MOC)
Answer:
1. O is taken as the point where BM and CL intersect, as the question implies.
2. ΔLBC and ΔMBC have the common base BC, and L and M lie on the line LM, which is parallel to BC. So ar(ΔLBC) = ar(ΔMBC).
3. ar(ΔLBC) = ar(ΔLOB) + ar(ΔOBC), since O lies on LC.
4. ar(ΔMBC) = ar(ΔMOC) + ar(ΔOBC), since O lies on BM.
5. Subtracting the common ar(ΔOBC) gives ar(ΔLOB) = ar(ΔMOC).
6. Hence ar(LOB) = ar(MOC).
Teacher's Note:
a) The line LM parallel to BC is what makes the two large triangles equal.
b) The common part OBC is removed from both sides.
c) The point O is the intersection of the two cevians BM and CL.
48. If the medians of a ΔABC intersect at G, show that ar (AGB) = ar (AGC) = ar (BGC) = \( \frac{1}{3} \) ar (ABC)
Answer:
1. Let S = ar(ΔABC) and let D be the midpoint of BC, so the median AD passes through G with AG : GD = 2 : 1.
2. Triangles GBC and ABC have the common base BC, and their heights from BC are in the ratio GD : AD = 1 : 3. So ar(ΔGBC) = \( \frac{1}{3} \) S.
3. Similarly, the median from B meets AC at its midpoint, and the median from C meets AB at its midpoint. By the same ratio argument, ar(ΔGAB) = \( \frac{1}{3} \) S and ar(ΔGAC) = \( \frac{1}{3} \) S.
4. Hence ar(AGB) = ar(AGC) = ar(BGC) = \( \frac{1}{3} \) ar(ABC).
Teacher's Note:
a) The centroid divides every median in the ratio 2 : 1 from the vertex.
b) Each of the three triangles around G has the same area because each uses one-third of a side with the same height ratio.
c) The three equal parts add up to the whole triangle, as a check.
49. Prove that the area of rhombus is equal to half the rectangle contained by its diagonals.
Answer:
1. Let the diagonals of rhombus ABCD be AC = d₁ and BD = d₂, meeting at O.
2. The diagonals of a rhombus bisect each other at right angles, so OA = d₁/2, OB = d₂/2 and ∠AOB = 90°.
3. The rhombus is made of four congruent right triangles, each with legs d₁/2 and d₂/2.
4. Area of one triangle = ½ × \( \frac{d_1}{2} \) × \( \frac{d_2}{2} \) = \( \frac{d_1 d_2}{8} \).
5. Area of rhombus = 4 × \( \frac{d_1 d_2}{8} \) = \( \frac{d_1 d_2}{2} \).
6. The rectangle contained by the diagonals has area d₁ × d₂.
7. Hence area of rhombus = ½ × d₁ × d₂ = ½ × (rectangle contained by the diagonals).
Teacher's Note:
a) A rhombus is a parallelogram whose diagonals are perpendicular bisectors of each other.
b) Four congruent right triangles make up the whole figure.
c) The rectangle with sides equal to the two diagonals is twice the area of the rhombus.
50. A point O inside a rectangle ABCD is joined to the vertices. Prove that the sum of the areas of a pair of opposite triangles so formed is equal to the sum of the other pair of triangles.
Answer:
1. Through O, draw EF parallel to AB, meeting AD at E and BC at F. So EF ∥ AB ∥ CD and EF ⊥ AD.
2. Let the rectangle have sides AB = CD = a and AD = BC = b.
3. ar(ΔOAB) = ½ × AB × OE = ½ a × OE, since OE is the distance from O to AB.
4. ar(ΔOCD) = ½ × CD × OF = ½ a × OF, since OF is the distance from O to CD.
5. OE + OF = AD = b, since O lies between the parallel sides AB and CD.
6. So ar(ΔOAB) + ar(ΔOCD) = ½ a (OE + OF) = ½ a b.
7. Similarly, ar(ΔOBC) + ar(ΔODA) = ½ b (OE' + OF') = ½ a b, using the line through O parallel to AD.
8. Hence ar(ΔOAB) + ar(ΔOCD) = ar(ΔOBC) + ar(ΔODA).
Teacher's Note:
a) Drawing one line through O parallel to each pair of sides gives the distances needed.
b) The two pairs of opposite triangles each cover half the rectangle.
c) The result does not depend on where O is placed inside the rectangle.
51. The medians BE and CF of a triangle ABC intersect at G. Prove that area of ΔGBC = area of quadrilateral AFGE.
Answer:
1. Let the area of ΔABC be S. G is the centroid, so GB : BE = 2 : 1.
2. Triangles GBC and EBC have the common vertex C and the bases GB and BE on the same line, so ar(ΔGBC) = \( \frac{2}{3} \) ar(ΔEBC).
3. E is the midpoint of AC, so ar(ΔEBC) = ½ S. Therefore ar(ΔGBC) = \( \frac{1}{3} \) S.
4. Since E is the midpoint of AC, ar(ΔAGE) = ar(ΔGEC). Also GE : BE = 1 : 3, so ar(ΔGEC) = \( \frac{1}{3} \) ar(ΔEBC) = \( \frac{1}{6} \) S. Hence ar(ΔAGE) = \( \frac{1}{6} \) S.
5. Since F is the midpoint of AB, ar(ΔAFG) = ar(ΔGFB). Also GF : CF = 1 : 3, so ar(ΔGFB) = \( \frac{1}{3} \) ar(ΔFBC) = \( \frac{1}{6} \) S. Hence ar(ΔAFG) = \( \frac{1}{6} \) S.
6. ar(quadrilateral AFGE) = ar(ΔAFG) + ar(ΔAGE) = \( \frac{1}{6} \) S + \( \frac{1}{6} \) S = \( \frac{1}{3} \) S.
7. Hence ar(ΔGBC) = ar(AFGE) = \( \frac{1}{3} \) ar(ΔABC).
Teacher's Note:
a) The centroid divides each median in the ratio 2 : 1.
b) Each of the six small triangles around G has one-sixth of the area of ΔABC, which is a useful shortcut.
c) Split the quadrilateral along the diagonal AG to find its area.
52. A villager Itwaari has a plot of land of the shape of a quadrilateral. The Gram Panchayat of the village decided to take over some portion of his plot from one of the corners to construct a Health Centre. Itwaari agrees to the above proposal with the condition that he should be given equal amount of land in lieu of his land adjoining his plot so as to form a triangular plot. Explain how this proposal will be implemented.
Answer:
1. Let the quadrilateral plot be ABCD. Suppose the Panchayat takes the portion from the corner D.
2. Join the diagonal AC. Triangle ACD is the portion to be taken by the Panchayat.
3. Through D, draw a line parallel to AC, meeting BC produced at E.
4. Join AE. Triangles ACD and ACE have the same base AC and lie between the same parallels AC and DE, so ar(ΔACE) = ar(ΔACD).
5. The Panchayat takes ΔACD, and Itwaari is given ΔACE, which has the same area.
6. The remaining plot is ΔABC. Adding ΔACE to it gives the triangle ABE, since C lies on BE.
7. So the new plot is the triangle ABE, whose area equals the area of the original quadrilateral ABCD.
Teacher's Note:
a) A line parallel to a diagonal keeps the area of the triangles on that diagonal unchanged.
b) Itwaari keeps his original area but gets a triangular boundary, which is easier to fence and use.
c) The corner from which land is taken is chosen by the Panchayat, so the construction works for any corner.
53. P and Q are respectively the mid-points of sides AB and BC of a triangle ABC and R is the mid-point of AP, show that (i) ar (PRQ) = \( \frac{1}{2} \) ar (ARC) (ii) ar (RQC) = \( \frac{3}{8} \) ar (ABC) (iii) ar (PBQ) = ar (ARC)
Answer:
1. Let S = ar(ΔABC).
2. P is the midpoint of AB, so ar(ΔAPC) = ½ S. R is the midpoint of AP, so ar(ΔARC) = ½ × ½ S = ¼ S.
3. (i) ar(ΔAPQ) = ½ ar(ΔABQ) since P is the midpoint of AB, and ar(ΔABQ) = ½ S since Q is the midpoint of BC. So ar(ΔAPQ) = ¼ S.
4. ΔPRQ and ΔPAQ have the common vertex Q and bases PR = ½ PA on the same line. So ar(ΔPRQ) = ½ ar(ΔPAQ) = ⅛ S.
5. Hence ar(PRQ) = ⅛ S = ½ × ¼ S = \( \frac{1}{2} \) ar(ARC).
6. (ii) ar(ΔPQC) = ½ ar(ΔPBC) = ½ × ½ S = ¼ S, since Q is the midpoint of BC.
7. The distance from R to BC is \( \frac{3}{4} \) of the distance from A to BC, and the distance from P to BC is \( \frac{1}{2} \) of that. So the ratio of heights from R and P to BC is \( \frac{3}{2} \).
8. ar(ΔRQC) = \( \frac{3}{2} \) ar(ΔPQC) = \( \frac{3}{2} \) × ¼ S = \( \frac{3}{8} \) S.
9. (iii) ar(ΔPBQ) = ¼ S, since P and Q are midpoints of AB and BC, so BP = ½ BA and BQ = ½ BC.
10. ar(ΔARC) = ¼ S from step 2. Hence ar(PBQ) = ar(ARC).
Teacher's Note:
a) Midpoint triangles cut the area in halves and quarters, which gives most results directly.
b) For (ii), a height ratio on a common base is the cleanest route.
c) Part (iii) reduces to the midpoint triangle PBQ having one-quarter of ABC.
54. A quadrilateral ABCD is such that the diagonal BD divides its area in two equal parts. Prove that BD bisects AC.
Answer:
1. Given ar(ΔABD) = ar(ΔCBD), since BD divides ABCD into two equal parts.
2. Both triangles have the common base BD. A and C lie on opposite sides of BD, as ABCD is convex.
3. Equal areas on the same base mean equal heights, so A and C are at equal distances from BD.
4. Let M be the midpoint of AC. The distance from M to BD is the average of the distances from A and C on opposite sides, which is 0.
5. So M lies on BD.
6. Hence BD bisects AC at M.
Teacher's Note:
a) Equal areas on a common base mean the two apexes are equally far from the base line.
b) The opposite-side condition is what makes the midpoint lie on BD.
c) A quick check: the midpoint of AC is on the diagonal BD, which is the conclusion.
55. D, E and F are respectively the mid-points of the sides BC, CA and AB of a ΔABC. Show that (i) BDEF is a parallelogram. (ii) ar (DEF) = \( \frac{1}{4} \) ar (ABC). (iii) ar (BDEF) = \( \frac{1}{2} \) ar (ABC).
Answer:
1. (i) In ΔABC, the midline EF ∥ BC and EF = ½ BC. Since D is the midpoint of BC, BD = ½ BC.
2. So EF = BD and EF ∥ BD. A quadrilateral with one pair of opposite sides equal and parallel is a parallelogram, so BDEF is a parallelogram.
3. (ii) Triangles AFE, BDF, CED and DEF are each similar to ΔABC with ratio ½, since their sides are midlines. Each has area ¼ ar(ABC).
4. Therefore ar(ΔDEF) = ar(ΔABC) - 3 × ¼ ar(ABC) = \( \frac{1}{4} \) ar(ABC).
5. (iii) ar(BDEF) = ar(ΔABC) - ar(ΔAFE) - ar(ΔCED) = ar(ABC) - ¼ ar(ABC) - ¼ ar(ABC) = \( \frac{1}{2} \) ar(ABC).
Teacher's Note:
a) The midline theorem gives the parallel sides needed for the parallelogram.
b) The medial triangle is always one-quarter of the original triangle.
c) The parallelogram BDEF contains two of the four small triangles, which is why it is half of ABC.
Free study material for Mathematics
CBSE Class 9 Mathematics Study Material: Chapter 09 Areas of Parallelograms and Triangles
Comprehensive Study Resources for Chapter 09 Areas of Parallelograms and Triangles
Access comprehensive study material for Chapter 09 Areas of Parallelograms and Triangles, including revision notes, concept maps, and high-probability questions. These resources are designed in alignment with the latest 2026 CBSE syllabus for Class 9 Mathematics to support effective exam preparation.
Understanding Marking Schemes
Each resource draws directly from authorized textbooks to maintain academic accuracy. Evaluating solved examples allows Class 9 students to master the formal presentation and answer-writing standards expected in upcoming school exams.
Complete Revision for Mathematics
For peak performance in upcoming evaluations, integrate official Mathematics sample papers directly into your study schedule. Follow up your revision by attempting online MCQ tests for Chapter 09 Areas of Parallelograms and Triangles to refine calculation speed and precision.
FAQs
Our advanced study package for Chapter 09 Areas of Parallelograms and Triangles includes detailed concepts, diagrams, Mind Maps, and explanation of complex topics to ensure Class 9 students learn as per syllabus for 2026 exams.
The Mind Maps provided for Chapter 09 Areas of Parallelograms and Triangles act as visual anchors which will help faster recall during high-pressure exams.
Yes, teachers use our Class 9 Mathematics resources for lesson planning as they are in simple language and have lot of solved examples.
Yes, You can download the complete, mobile-friendly PDF of the Mathematics Chapter 09 Areas of Parallelograms and Triangles advanced resources for free.
Yes, our subject matter experts have updated the Chapter 09 Areas of Parallelograms and Triangles material to align with the rationalized NCERT textbooks and have removed deleted topics and added new competency-based questions.
