PRACTICE QUESTIONS
CLASS IX: CHAPTER - 8
QUADRILATERALS

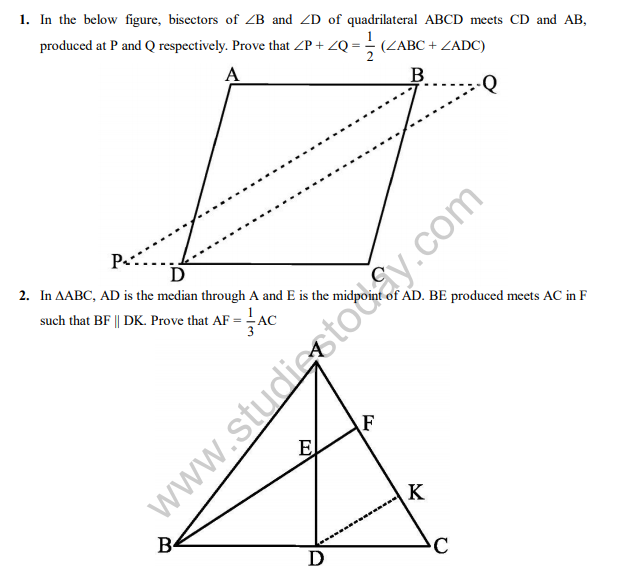

1. In the below figure, bisectors of ∠B and ∠D of quadrilateral ABCD meets CD and AB, produced at P and Q respectively. Prove that ∠P + ∠Q = \( \frac{1}{2} \) (∠ABC + ∠ADC)
Answer:
Given: BP bisects ∠ABC and meets CD produced at P; DQ bisects ∠ADC and meets AB produced at Q.
To prove: ∠P + ∠Q = \( \frac{1}{2} \)(∠ABC + ∠ADC).
1. In △PBC, ∠P = 180° - ∠C - \( \frac{1}{2} \)∠ABC.
2. In △QAD, ∠Q = 180° - ∠A - \( \frac{1}{2} \)∠ADC.
3. Adding, ∠P + ∠Q = 360° - (∠A + ∠C) - \( \frac{1}{2} \)(∠ABC + ∠ADC).
4. In quadrilateral ABCD, ∠A + ∠C = 360° - (∠ABC + ∠ADC).
5. So ∠P + ∠Q = (∠ABC + ∠ADC) - \( \frac{1}{2} \)(∠ABC + ∠ADC) = \( \frac{1}{2} \)(∠ABC + ∠ADC).
6. Hence proved.
Teacher's Note:
a) The angle sum of a quadrilateral is 360°; it is used to replace ∠A + ∠C.
b) Apply the angle sum property in the two triangles PBC and QAD.
2. In ΔABC, AD is the median through A and E is the midpoint of AD. BE produced meets AC in F such that BF ∥ DK. Prove that AF = \( \frac{1}{3} \)AC
Answer:
Given: AD is a median, E is the midpoint of AD, BE meets AC at F, and DK ∥ BF with K on AC (as in the figure).
To prove: AF = \( \frac{1}{3} \)AC.
1. In △ADK, E is the midpoint of AD and EF ∥ DK, so F is the midpoint of AK (converse of the midpoint theorem). Hence AF = FK.
2. In △BCF, D is the midpoint of BC and DK ∥ BF, so K is the midpoint of CF. Hence FK = KC.
3. Therefore AF = FK = KC.
4. AC = AF + FK + KC = 3AF, so AF = \( \frac{1}{3} \)AC.
5. Hence proved.
Teacher's Note:
a) The printed question does not say where K is; it is the point of AC where the line through D parallel to BF meets AC.
b) The midpoint theorem is used twice.
3. In a parallelogram, the bisectors of any two consecutive angles intersects at right angle. Prove it.
Answer:
Given: ABCD is a parallelogram; the bisectors of ∠A and ∠B meet at O.
To prove: ∠AOB = 90°.
1. AD ∥ BC and AB is a transversal, so ∠A + ∠B = 180° (co-interior angles).
2. ∠OAB = \( \frac{1}{2} \)∠A and ∠OBA = \( \frac{1}{2} \)∠B.
3. ∠OAB + ∠OBA = \( \frac{1}{2} \)(∠A + ∠B) = 90°.
4. In △AOB, ∠AOB = 180° - 90° = 90°.
5. Hence proved.
Teacher's Note:
a) Consecutive angles of a parallelogram are supplementary.
b) The same argument works for any other pair of consecutive angles.
4. In a quadrilateral ABCD, AO and BO are the bisectors of ∠A and ∠B respectively. Prove that ∠AOB = \( \frac{1}{2} \)(∠C + ∠D)
Answer:
Given: AO and BO bisect ∠A and ∠B of quadrilateral ABCD.
To prove: ∠AOB = \( \frac{1}{2} \)(∠C + ∠D).
1. In quadrilateral ABCD, ∠A + ∠B + ∠C + ∠D = 360°, so \( \frac{1}{2} \)(∠A + ∠B) = 180° - \( \frac{1}{2} \)(∠C + ∠D).
2. In △AOB, ∠AOB = 180° - \( \frac{1}{2} \)∠A - \( \frac{1}{2} \)∠B.
3. ∠AOB = 180° - [180° - \( \frac{1}{2} \)(∠C + ∠D)] = \( \frac{1}{2} \)(∠C + ∠D).
4. Hence proved.
Teacher's Note:
a) Use the angle sum of the quadrilateral and of the triangle AOB.
5. ABCD is a square E, F, G, H are points on AB, BC, CD and DA respectively such that AE = BF = CG = DH. Prove that EFGH is a square.
Answer:
Given: ABCD is a square and AE = BF = CG = DH.
To prove: EFGH is a square.
1. AB = BC = CD = DA and AE = BF = CG = DH, so EB = FC = GD = HA.
2. In △AEH and △BFE: AE = BF, ∠A = ∠B = 90° and AH = BE. So △AEH ≅ △BFE (SAS), giving EH = FE and ∠AHE = ∠BEF.
3. In the same way, △BFE ≅ △CGF ≅ △DHG, so EH = FE = GF = HG. All four sides of EFGH are equal.
4. ∠AEH + ∠AHE = 90°, so ∠AEH + ∠BEF = 90°.
5. ∠HEF = 180° - (∠AEH + ∠BEF) = 90°.
6. EFGH has four equal sides and one right angle, so it is a square.
Teacher's Note:
a) A rhombus with one right angle is a square.
b) Mark equal sides on the figure before writing the congruences.
6. ABCD is a parallelogram. If its diagonals are equal, then find the value of ∠ABC.
Answer:
1. In △ABC and △DCB: AB = DC (opposite sides), BC = CB (common) and AC = DB (given).
2. So △ABC ≅ △DCB (SSS), giving ∠ABC = ∠DCB.
3. AB ∥ DC and BC is a transversal, so ∠ABC + ∠DCB = 180°.
4. 2∠ABC = 180°, so ∠ABC = 90°.
5. Hence, ∠ABC = 90° (ABCD is a rectangle).
Teacher's Note:
a) A parallelogram with equal diagonals is a rectangle.

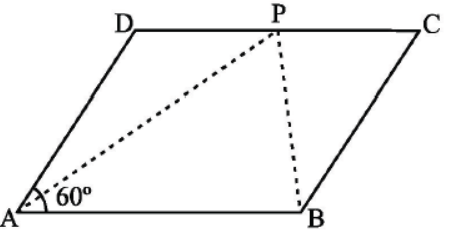

7. In the below figure, ABCD is a parallelogram and ∠DAB = 60°. If the bisector AP and BP of angles A and B respectively meet P on CD. Prove that P is the midpoint of CD.
Answer:
Given: ABCD is a parallelogram, AP and BP bisect ∠A and ∠B, and P lies on CD.
To prove: P is the midpoint of CD.
1. AB ∥ DC and AP is a transversal, so ∠DPA = ∠PAB (alternate angles).
2. ∠PAB = ∠DAP (AP bisects ∠A), so ∠DPA = ∠DAP and DP = AD (sides opposite equal angles).
3. Similarly, ∠CPB = ∠PBA = ∠PBC, so CP = BC.
4. AD = BC (opposite sides), so DP = CP.
5. Hence, P is the midpoint of CD.
Teacher's Note:
a) The value 60° is not needed for the proof.
b) In this figure AB = 2AD.

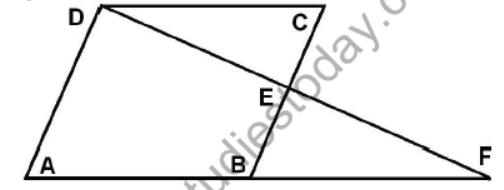

8. In the below given figure, ABCD is a parallelogram and E is the midpoint of side BC, DE and AB when produced meet at F. Prove that AF = 2AB.
Answer:
Given: ABCD is a parallelogram, E is the midpoint of BC, and DE meets AB produced at F.
To prove: AF = 2AB.
1. In △DCE and △FBE: CE = BE (E is the midpoint), ∠DEC = ∠FEB (vertically opposite) and ∠DCE = ∠FBE (alternate angles, DC ∥ AF).
2. So △DCE ≅ △FBE (ASA), giving DC = BF.
3. DC = AB (opposite sides), so BF = AB.
4. AF = AB + BF = AB + AB = 2AB.
5. Hence proved.
Teacher's Note:
a) Congruent triangles formed by crossing lines through a midpoint are a common idea.
9. ΔABC is right angle at B and P is the midpoint of AC and Q is any point on AB. Prove that (i) PQ ⊥ AB (ii) Q is the midpoint of AB (iii) PA = \( \frac{1}{2} \)AC
Answer:
Given: ∠B = 90° in △ABC, P is the midpoint of AC and Q is the point on AB with PQ ∥ BC.
1. (ii) In △ABC, P is the midpoint of AC and PQ ∥ BC, so Q is the midpoint of AB (converse of the midpoint theorem).
2. (i) PQ ∥ BC and AB is a transversal, so ∠AQP = ∠ABC = 90° (corresponding angles). Hence PQ ⊥ AB.
3. (iii) P is the midpoint of AC, so PA = \( \frac{1}{2} \)AC.
4. Hence proved.
Teacher's Note:
a) The printed question says 'Q is any point on AB', but (i) and (ii) hold only for the point Q where PQ ∥ BC; this condition from the standard form of the question has been used.
b) Part (iii) follows directly from the definition of a midpoint.
10. The diagonals of a parallelogram ABCD intersect at O. A line through O intersects AB at X and DC at Y. Prove that OX = OY.
Answer:
Given: Diagonals AC and BD of parallelogram ABCD meet at O; a line through O meets AB at X and DC at Y.
To prove: OX = OY.
1. In △OAX and △OCY: ∠OAX = ∠OCY (alternate angles, AB ∥ DC), OA = OC (diagonals bisect each other) and ∠AOX = ∠COY (vertically opposite).
2. So △OAX ≅ △OCY (ASA).
3. Hence, OX = OY (CPCT).
Teacher's Note:
a) CPCT means corresponding parts of congruent triangles.
11. ABCD is a parallelogram. AB is produced to E so that BE = AB. Prove that ED bisects BC.
Answer:
Given: ABCD is a parallelogram and BE = AB, with A, B, E on a line.
To prove: ED bisects BC, that is, if ED meets BC at F then BF = CF.
1. DC = AB (opposite sides) and AB = BE, so DC = BE.
2. In △DCF and △EBF: ∠DCF = ∠EBF (alternate angles, DC ∥ AE), ∠CDF = ∠BEF (alternate angles) and DC = EB.
3. So △DCF ≅ △EBF (ASA).
4. Hence, CF = BF, so ED bisects BC.
Teacher's Note:
a) Name the point F where ED meets BC first.
12. If ABCD is a quadrilateral in which AB ∥ CD and AD = BC, prove that ∠A = ∠B.
Answer:
Given: AB ∥ CD and AD = BC (ABCD is a trapezium).
To prove: ∠A = ∠B.
Construction: Draw DE ⊥ AB and CF ⊥ AB.
1. DE = CF (the distance between the parallel lines AB and CD is constant).
2. In right triangles AED and BFC: AD = BC and DE = CF, so △AED ≅ △BFC (RHS).
3. Hence, ∠A = ∠B (CPCT).
4. Hence proved.
Teacher's Note:
a) The quadrilateral must be a trapezium (AD not parallel to BC); for a non-rectangular parallelogram AD = BC also holds but ∠A ≠ ∠B.
13. Diagonals AC and BD of a parallelogram ABCD intersect each other at O. If OA = 3 cm and OD = 2 cm, determine the lengths of AC and BD.
Answer:
1. The diagonals of a parallelogram bisect each other.
2. AC = 2 × OA = 2 × 3 = 6 cm.
3. BD = 2 × OD = 2 × 2 = 4 cm.
4. Hence, AC = 6 cm and BD = 4 cm.
Teacher's Note:
a) O is the midpoint of both diagonals.
14. In quadrilateral ABCD, ∠A + ∠D = 180°. What special name can be given to this quadrilateral?
Answer:
1. ∠A and ∠D are co-interior angles on the same side AD for the lines AB and DC with transversal AD.
2. Since ∠A + ∠D = 180°, AB ∥ DC.
3. Only one pair of opposite sides is known to be parallel.
4. Hence, ABCD is a trapezium.
Teacher's Note:
a) It would be a parallelogram only if the other pair of sides were also parallel.
15. All the angles of a quadrilateral are equal. What special name is given to this quadrilateral?
Answer:
1. Let each angle be x. Then 4x = 360°, so x = 90°.
2. All angles are right angles, so opposite sides are parallel and the quadrilateral is a parallelogram with a right angle.
3. Hence, it is a rectangle.
Teacher's Note:
a) A square is also a rectangle, but 'rectangle' is the general name asked here.
16. In ΔABC, AB = 5 cm, BC = 8 cm and CA = 7 cm. If D and E are respectively the mid-points of AB and BC, determine the length of DE.
Answer:
1. D and E are the midpoints of AB and BC, so DE ∥ AC and DE = \( \frac{1}{2} \)AC (midpoint theorem).
2. DE = \( \frac{1}{2} \) × 7 = 3.5 cm.
3. Hence, DE = 3.5 cm.
Teacher's Note:
a) Only the side CA is needed; AB and BC are extra data.
17. Diagonals of a quadrilateral ABCD bisect each other. If ∠A = 35°, determine ∠B.
Answer:
1. A quadrilateral whose diagonals bisect each other is a parallelogram.
2. In parallelogram ABCD, ∠A + ∠B = 180° (co-interior angles).
3. ∠B = 180° - 35° = 145°.
4. Hence, ∠B = 145°.
Teacher's Note:
a) Adjacent angles of a parallelogram are supplementary.
18. Opposite angles of a quadrilateral ABCD are equal. If AB = 4 cm, determine CD.
Answer:
1. A quadrilateral with equal opposite angles is a parallelogram.
2. Opposite sides of a parallelogram are equal, so CD = AB.
3. Hence, CD = 4 cm.
Teacher's Note:
a) Theorem used: opposite angles equal gives a parallelogram (see Question 38).
19. In the below figure, it is given that BDEF and FDCE are parallelograms. Can you say that BD = CD? Why or why not?
Answer:
1. BDEF is a parallelogram, so BD = FE (opposite sides).
2. FDCE is a parallelogram, so CD = FE (opposite sides).
3. Hence, BD = FE = CD.
4. Yes, BD = CD.
Teacher's Note:
a) Both equalities come from the same segment FE.

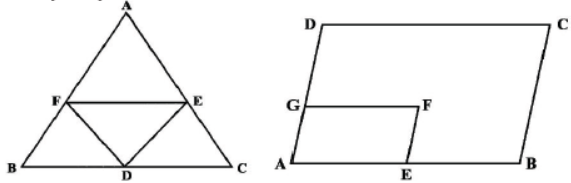

20. In the above right sided figure, ABCD and AEFG are two parallelograms. If ∠C = 55°, determine ∠F.
Answer:
1. In parallelogram ABCD, ∠A = ∠C = 55° (opposite angles).
2. In parallelogram AEFG, ∠F = ∠A (opposite angles).
3. Hence, ∠F = 55°.
Teacher's Note:
a) Both parallelograms share the angle at A.
21. Angles of a quadrilateral are in the ratio 3 : 4 : 4 : 7. Find all the angles of the quadrilateral.
Answer:
1. Let the angles be 3x, 4x, 4x and 7x.
2. 3x + 4x + 4x + 7x = 360°, so 18x = 360° and x = 20°.
3. The angles are 60°, 80°, 80° and 140°.
4. Hence, the angles are 60°, 80°, 80° and 140°.
Teacher's Note:
a) The angle sum of a quadrilateral is 360°.
b) Check: 60 + 80 + 80 + 140 = 360.

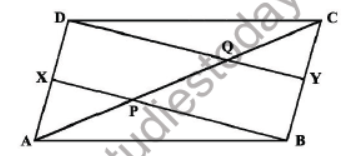

22. In the below figure, X and Y are respectively the mid-points of the opposite sides AD and BC of a parallelogram ABCD. Also, BX and DY intersect AC at P and Q, respectively. Show that AP = PQ = QC.
Answer:
Given: X and Y are the midpoints of AD and BC; BX and DY meet AC at P and Q.
To prove: AP = PQ = QC.
1. XD = \( \frac{1}{2} \)AD and BY = \( \frac{1}{2} \)BC, so XD = BY; also XD ∥ BY. Hence BXDY is a parallelogram and BX ∥ DY.
2. In △ADQ, X is the midpoint of AD and XP ∥ DQ, so P is the midpoint of AQ. Hence AP = PQ.
3. In △CBP, Y is the midpoint of BC and YQ ∥ BP, so Q is the midpoint of CP. Hence CQ = PQ.
4. Therefore AP = PQ = QC.
5. Hence proved.
Teacher's Note:
a) The converse of the midpoint theorem is used twice.
23. One angle of a quadrilateral is of 108° and the remaining three angles are equal. Find each of the three equal angles.
Answer:
1. Let each equal angle be x.
2. 108° + 3x = 360°, so 3x = 252° and x = 84°.
3. Hence, each of the three equal angles is 84°.
Teacher's Note:
a) Check: 108 + 3 × 84 = 360.
24. ABCD is a trapezium in which AB ∥ DC and ∠A = ∠B = 45°. Find angles C and D of the trapezium.
Answer:
1. AB ∥ DC and AD is a transversal, so ∠A + ∠D = 180°; ∠D = 180° - 45° = 135°.
2. AB ∥ DC and BC is a transversal, so ∠B + ∠C = 180°; ∠C = 180° - 45° = 135°.
3. Hence, ∠C = 135° and ∠D = 135°.
Teacher's Note:
a) Co-interior angles between the parallel sides add up to 180°.
25. The angle between two altitudes of a parallelogram through the vertex of an obtuse angle of the parallelogram is 60°. Find the angles of the parallelogram.
Answer:
1. Let ABCD be the parallelogram with obtuse ∠B, and let BM ⊥ AD and BN ⊥ DC with ∠MBN = 60°.
2. In quadrilateral DMBN, ∠M = ∠N = 90°, so ∠D = 360° - 90° - 90° - 60° = 120°.
3. ∠B = ∠D = 120° (opposite angles).
4. ∠A = ∠C = 180° - 120° = 60°.
5. Hence, the angles are 60°, 120°, 60° and 120°.
Teacher's Note:
a) The altitudes from the obtuse vertex fall on the extended sides, so ∠D is obtuse too.
26. ABCD is a rhombus in which altitude from D to side AB bisects AB. Find the angles of the rhombus.
Answer:
1. Let DE ⊥ AB with E the midpoint of AB.
2. In △ADE and △BDE: AE = BE, ∠AED = ∠BED = 90° and DE is common, so △ADE ≅ △BDE (SAS) and AD = BD.
3. AD = AB (rhombus), so AD = AB = BD and △ABD is equilateral.
4. Hence, ∠A = 60°, so ∠C = 60° and ∠B = ∠D = 120°.
5. The angles are 60°, 120°, 60° and 120°.
Teacher's Note:
a) The perpendicular bisector of AB makes D equidistant from A and B.
27. E and F are points on diagonal AC of a parallelogram ABCD such that AE = CF. Show that BFDE is a parallelogram.
Answer:
Given: ABCD is a parallelogram and AE = CF on diagonal AC.
To prove: BFDE is a parallelogram.
1. Let the diagonals AC and BD meet at O. Then OA = OC and OB = OD.
2. OE = OA - AE and OF = OC - CF, so OE = OF.
3. In quadrilateral BFDE, the diagonals EF and BD bisect each other at O (OE = OF and OB = OD).
4. Hence, BFDE is a parallelogram.
Teacher's Note:
a) A quadrilateral whose diagonals bisect each other is a parallelogram.
28. ABCD is a parallelogram and ∠DAB = 60°. If the bisectors AP and BP of angles A and B respectively, meet at P on CD, prove that P is the midpoint of CD.
Answer:
Given: ABCD is a parallelogram, ∠DAB = 60°, AP and BP bisect ∠A and ∠B and meet at P on CD.
To prove: P is the midpoint of CD.
1. AB ∥ DC with transversal AP: ∠DPA = ∠PAB = ∠DAP, so DP = AD.
2. AB ∥ DC with transversal BP: ∠CPB = ∠PBA = ∠PBC, so CP = BC.
3. AD = BC, so DP = CP.
4. Hence, P is the midpoint of CD.
Teacher's Note:
a) This is the same result as Question 7; the 60° is not needed.
b) An angle bisector between parallel lines always makes an isosceles triangle.
29. ABCD is a parallelogram. AM and BN are respectively, the perpendiculars from A and B to DC and CD produced. Prove that AM = BN.
Answer:
Given: ABCD is a parallelogram, AM ⊥ DC and BN ⊥ DC produced.
To prove: AM = BN.
1. In △AMD and △BNC: ∠AMD = ∠BNC = 90°, ∠ADM = ∠BCN (corresponding angles, AD ∥ BC) and AD = BC.
2. So △AMD ≅ △BNC (AAS).
3. Hence, AM = BN (CPCT).
Teacher's Note:
a) AM and BN are both distances between the parallel lines AB and DC.
30. ABCD is a parallelogram. L and M are points on AB and DC respectively and AL = CM. Prove that LM and BD bisect each other.
Answer:
Given: ABCD is a parallelogram, AL = CM.
To prove: LM and BD bisect each other.
1. AB = DC and AL = CM, so LB = AB - AL = DC - CM = DM.
2. LB ∥ DM (AB ∥ DC) and LB = DM, so LBMD is a parallelogram.
3. The diagonals LM and BD of the parallelogram LBMD bisect each other.
4. Hence proved.
Teacher's Note:
a) One pair of opposite sides equal and parallel is enough for a parallelogram (Question 37).
31. Points P and Q have been taken on opposite sides AB and CD, respectively of a parallelogram ABCD such that AP = CQ (see below figure). Show that AC and PQ bisect each other.
Answer:
Given: ABCD is a parallelogram and AP = CQ.
To prove: AC and PQ bisect each other.
1. AB ∥ DC, so AP ∥ CQ, and AP = CQ.
2. Hence, APCQ is a parallelogram.
3. Its diagonals AC and PQ bisect each other.
4. Hence proved.
Teacher's Note:
a) The diagonals of APCQ are exactly the segments AC and PQ.

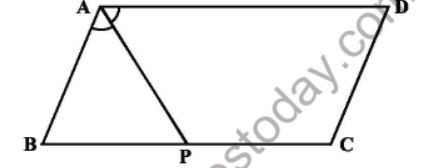

32. In the below figure, P is the mid-point of side BC of a parallelogram ABCD such that ∠BAP = ∠DAP. Prove that AD = 2CD.
Answer:
Given: P is the midpoint of BC and ∠BAP = ∠DAP.
To prove: AD = 2CD.
1. AD ∥ BC and AP is a transversal, so ∠DAP = ∠APB (alternate angles).
2. ∠BAP = ∠DAP = ∠APB, so BP = AB (sides opposite equal angles in △ABP).
3. BP = \( \frac{1}{2} \)BC = \( \frac{1}{2} \)AD and AB = CD, so CD = \( \frac{1}{2} \)AD.
4. Hence, AD = 2CD.
Teacher's Note:
a) Combine the isosceles triangle with the midpoint condition.
33. D, E and F are the mid-points of the sides BC, CA and AB, respectively of an equilateral triangle ABC. Show that ΔDEF is also an equilateral triangle.
Answer:
1. Let AB = BC = CA = a.
2. By the midpoint theorem, DE = \( \frac{1}{2} \)AB, EF = \( \frac{1}{2} \)BC and FD = \( \frac{1}{2} \)CA.
3. Hence, DE = EF = FD = \( \frac{a}{2} \).
4. Hence, △DEF is an equilateral triangle.
Teacher's Note:
a) In every triangle, the segment joining two midpoints is half the third side.
34. E is the mid-point of the side AD of the trapezium ABCD with AB ∥ DC. A line through E drawn parallel to AB intersect BC at F. Show that F is the mid-point of BC.
Answer:
Given: AB ∥ DC, E is the midpoint of AD and EF ∥ AB.
To prove: F is the midpoint of BC.
Construction: Join AC, meeting EF at G.
1. EF ∥ AB ∥ DC.
2. In △ADC, E is the midpoint of AD and EG ∥ DC, so G is the midpoint of AC.
3. In △ABC, G is the midpoint of AC and GF ∥ AB, so F is the midpoint of BC.
4. Hence proved.
Teacher's Note:
a) The diagonal AC is the helpful construction.
35. PQ and RS are two equal and parallel line-segments. Any point M not lying on PQ or RS is joined to Q and S and lines through P parallel to QM and through R parallel to SM meet at N. Prove that line segments MN and PQ are equal and parallel to each other.
Answer:
Given: PQ ∥ RS, PQ = RS, PN ∥ QM and RN ∥ SM.
To prove: MN = PQ and MN ∥ PQ.
1. PQ ∥ RS and PQ = RS, so PQSR is a parallelogram; hence PR ∥ QS and PR = QS.
2. In △NPR and △MQS: NP ∥ MQ, NR ∥ MS and PR ∥ QS, so ∠NPR = ∠MQS and ∠NRP = ∠MSQ (angles with parallel arms in the same sense).
3. PR = QS, so △NPR ≅ △MQS (ASA).
4. Hence, NP = MQ. Also NP ∥ MQ, so PQMN is a parallelogram.
5. Hence, MN = PQ and MN ∥ PQ.
Teacher's Note:
a) The angles with parallel arms are equal because both are taken in the same orientation as in the figure.
36. Prove that “If the diagonals of a quadrilateral bisect each other, then it is a parallelogram”.
Answer:
Given: Diagonals AC and BD of quadrilateral ABCD meet at O with OA = OC and OB = OD.
To prove: ABCD is a parallelogram.
1. In △AOB and △COD: OA = OC, OB = OD and ∠AOB = ∠COD (vertically opposite), so △AOB ≅ △COD (SAS).
2. Hence, AB = CD and ∠OAB = ∠OCD, which are alternate angles, so AB ∥ CD.
3. Similarly, △AOD ≅ △COB gives AD = BC and AD ∥ BC.
4. Both pairs of opposite sides are parallel.
5. Hence, ABCD is a parallelogram.
Teacher's Note:
a) This is the converse of the theorem that diagonals of a parallelogram bisect each other.
37. Prove that “A quadrilateral is a parallelogram if a pair of opposite sides is equal and parallel”.
Answer:
Given: In quadrilateral ABCD, AB = CD and AB ∥ CD.
To prove: ABCD is a parallelogram.
Construction: Join AC.
1. In △ABC and △CDA: AB = CD, ∠BAC = ∠DCA (alternate angles, AB ∥ CD) and AC = CA, so △ABC ≅ △CDA (SAS).
2. Hence, BC = DA and ∠BCA = ∠DAC.
3. ∠BCA and ∠DAC are alternate angles, so BC ∥ AD.
4. Both pairs of opposite sides are parallel.
5. Hence, ABCD is a parallelogram.
Teacher's Note:
a) Joining a diagonal splits the quadrilateral into two triangles.
38. Prove that “A quadrilateral is a parallelogram if its opposite angles are equal”.
Answer:
Given: In quadrilateral ABCD, ∠A = ∠C and ∠B = ∠D.
To prove: ABCD is a parallelogram.
1. ∠A + ∠B + ∠C + ∠D = 360°, so 2∠A + 2∠B = 360° and ∠A + ∠B = 180°.
2. ∠A and ∠B are co-interior angles on AB with lines AD and BC, so AD ∥ BC.
3. Similarly ∠B + ∠C = 180°, so AB ∥ DC.
4. Both pairs of opposite sides are parallel.
5. Hence, ABCD is a parallelogram.
Teacher's Note:
a) Replace ∠C by ∠A and ∠D by ∠B in the angle sum.
39. Show that the diagonals of a rhombus are perpendicular to each other.
Answer:
Given: ABCD is a rhombus with diagonals meeting at O.
To prove: AC ⊥ BD.
1. A rhombus is a parallelogram, so OA = OC.
2. In △AOB and △COB: AB = CB, OA = OC and OB is common, so △AOB ≅ △COB (SSS).
3. Hence, ∠AOB = ∠COB.
4. ∠AOB + ∠COB = 180° (linear pair), so ∠AOB = 90°.
5. Hence, AC ⊥ BD.
Teacher's Note:
a) The diagonals of a rhombus also bisect its angles.
40. Two parallel lines l and m are intersected by a transversal p. Show that the quadrilateral formed by the bisectors of interior angles is a rectangle.
Answer:
Given: l ∥ m; p meets l at A and m at C. AP and CP bisect the interior angles ∠BAC and ∠ACD on one side; AR and CR bisect the interior angles ∠EAC and ∠ACF on the other side.
To prove: APCR is a rectangle.
1. ∠BAC + ∠ACD = 180° (co-interior angles), so ∠PAC + ∠PCA = \( \frac{1}{2} \) × 180° = 90°, and ∠APC = 90°.
2. Similarly, ∠EAC + ∠ACF = 180°, so ∠ARC = 90°.
3. ∠PAR = ∠PAC + ∠CAR = \( \frac{1}{2} \)(∠BAC + ∠EAC) = \( \frac{1}{2} \) × 180° = 90°.
4. Similarly, ∠PCR = 90°.
5. APCR has four right angles, so it is a rectangle.
Teacher's Note:
a) Interior angles are the four angles lying between the two parallel lines.
b) A quadrilateral with all four angles right angles is a rectangle.
41. Show that the bisectors of angles of a parallelogram form a rectangle.
Answer:
Given: ABCD is a parallelogram; the bisectors of ∠A, ∠B, ∠C and ∠D form quadrilateral PQRS.
To prove: PQRS is a rectangle.
1. Let the bisectors of ∠A and ∠B meet at P. ∠A + ∠B = 180°, so ∠PAB + ∠PBA = 90° and ∠APB = 90°.
2. Similarly, the bisectors of ∠B and ∠C meet at Q with ∠BQC = 90°, those of ∠C and ∠D at R with ∠CRD = 90°, and those of ∠D and ∠A at S with ∠DSA = 90°.
3. The angles of PQRS are vertically opposite to these right angles, so each angle of PQRS is 90°.
4. Hence, PQRS is a rectangle.
Teacher's Note:
a) Consecutive angles of a parallelogram are supplementary, which gives the right angle at each meeting point.
42. If the diagonals of a parallelogram are equal, then show that it is a rectangle.
Answer:
Given: ABCD is a parallelogram with AC = BD.
To prove: ABCD is a rectangle.
1. In △ABC and △DCB: AB = DC, BC = CB and AC = DB, so △ABC ≅ △DCB (SSS).
2. Hence, ∠ABC = ∠DCB.
3. AB ∥ DC, so ∠ABC + ∠DCB = 180°, giving ∠ABC = 90°.
4. A parallelogram with one right angle is a rectangle.
5. Hence, ABCD is a rectangle.
Teacher's Note:
a) This is the same idea as Question 6.
43. Show that if the diagonals of a quadrilateral bisect each other at right angles, then it is a rhombus.
Answer:
Given: Diagonals AC and BD of ABCD bisect each other at O and ∠AOB = 90°.
To prove: ABCD is a rhombus.
1. The diagonals bisect each other, so ABCD is a parallelogram.
2. In △AOB and △AOD: OB = OD, ∠AOB = ∠AOD = 90° and AO is common, so △AOB ≅ △AOD (SAS).
3. Hence, AB = AD.
4. In a parallelogram AB = CD and AD = BC, so all four sides are equal.
5. Hence, ABCD is a rhombus.
Teacher's Note:
a) A parallelogram with a pair of equal adjacent sides is a rhombus.
44. Show that the diagonals of a square are equal and bisect each other at right angles.
Answer:
Given: ABCD is a square with diagonals meeting at O.
To prove: AC = BD, OA = OC, OB = OD and AC ⊥ BD.
1. A square is a parallelogram, so its diagonals bisect each other: OA = OC and OB = OD.
2. In △ABC and △BAD: AB = BA, BC = AD and ∠ABC = ∠BAD = 90°, so △ABC ≅ △BAD (SAS) and AC = BD.
3. In △AOB and △AOD: OB = OD, AB = AD and AO is common, so △AOB ≅ △AOD (SSS).
4. Hence, ∠AOB = ∠AOD and ∠AOB + ∠AOD = 180°, so ∠AOB = 90°.
5. Hence, the diagonals are equal and bisect each other at right angles.
Teacher's Note:
a) A square has all the properties of a rectangle and a rhombus.
45. Show that if the diagonals of a quadrilateral are equal and bisect each other at right angles, then it is a square.
Answer:
Given: Diagonals AC and BD of ABCD are equal, bisect each other at O and ∠AOB = 90°.
To prove: ABCD is a square.
1. The diagonals bisect each other, so ABCD is a parallelogram.
2. OA = OB = OC = OD (half of equal diagonals).
3. △AOB ≅ △AOD (SAS), so AB = AD, and ABCD is a rhombus.
4. In △AOB, OA = OB, so ∠OAB = ∠OBA = 45°; similarly ∠OAD = 45°, so ∠DAB = 90°.
5. A rhombus with one right angle is a square.
6. Hence, ABCD is a square.
Teacher's Note:
a) Equal diagonals give a rectangle and perpendicular diagonals give a rhombus; both together give a square.
46. In the adjoining figure, ABCD is a parallelogram in which P and Q are mid-points of opposite sides AB and CD. If AQ intersects DP at S and BQ intersects CP at R, show that:
(i) APCQ is a parallelogram.
(ii) DPBQ is a parallelogram.
(iii) PSQR is a parallelogram.
Answer:
1. (i) AP = \( \frac{1}{2} \)AB = \( \frac{1}{2} \)DC = QC and AP ∥ QC (AB ∥ DC). One pair of opposite sides is equal and parallel, so APCQ is a parallelogram.
2. (ii) DQ = \( \frac{1}{2} \)DC = \( \frac{1}{2} \)AB = PB and DQ ∥ PB. Hence, DPBQ is a parallelogram.
3. (iii) In parallelogram DPBQ, DP ∥ QB, so SP ∥ QR.
4. In parallelogram APCQ, AQ ∥ PC, so SQ ∥ PR.
5. PSQR has both pairs of opposite sides parallel.
6. Hence, PSQR is a parallelogram.
Teacher's Note:
a) Use the result of the earlier parts in part (iii).
47. The angles of quadrilateral are in the ratio 3 : 5 : 9 : 13. Find all the angles of the quadrilateral.
Answer:
1. Let the angles be 3x, 5x, 9x and 13x.
2. 3x + 5x + 9x + 13x = 360°, so 30x = 360° and x = 12°.
3. The angles are 36°, 60°, 108° and 156°.
4. Hence, the angles are 36°, 60°, 108° and 156°.
Teacher's Note:
a) Check: 36 + 60 + 108 + 156 = 360.
48. Prove that “The line segment joining the mid-points of two sides of a triangle is parallel to the third side and half of it”.
Answer:
Given: In △ABC, D and E are the midpoints of AB and AC.
To prove: DE ∥ BC and DE = \( \frac{1}{2} \)BC.
Construction: Extend DE to F so that EF = DE, and join CF.
1. In △ADE and △CFE: AE = CE, ∠AED = ∠CEF (vertically opposite) and DE = FE, so △ADE ≅ △CFE (SAS).
2. Hence, AD = CF and ∠ADE = ∠CFE; the alternate angles are equal, so AD ∥ CF, that is, BD ∥ CF.
3. AD = BD, so BD = CF. BD and CF are equal and parallel, so BCFD is a parallelogram.
4. Hence, DF ∥ BC and DF = BC, so DE ∥ BC and DE = \( \frac{1}{2} \)DF = \( \frac{1}{2} \)BC.
Teacher's Note:
a) This is the midpoint theorem; it is used in many other questions of this set.
49. Prove that “The line drawn through the mid-point of one side of a triangle, parallel to another side bisects the third side”.
Answer:
Given: In △ABC, D is the midpoint of AB and DE ∥ BC, with E on AC.
To prove: E is the midpoint of AC.
Construction: Draw CF ∥ BA to meet DE produced at F.
1. DE ∥ BC and BD ∥ CF, so BCFD is a parallelogram and CF = BD = AD.
2. In △ADE and △CFE: ∠AED = ∠CEF (vertically opposite), ∠DAE = ∠FCE (alternate angles, AB ∥ CF) and AD = CF.
3. So △ADE ≅ △CFE (AAS).
4. Hence, AE = CE, that is, E is the midpoint of AC.
Teacher's Note:
a) This is the converse of the midpoint theorem.
50. Show that if the diagonals of a quadrilateral are equal and bisect each other at right angles, then it is a square.
Answer:
Given: Diagonals AC and BD of ABCD are equal and bisect each other at right angles at O.
To prove: ABCD is a square.
1. The diagonals bisect each other, so ABCD is a parallelogram.
2. The diagonals are equal, so ABCD is a rectangle (Question 42); the diagonals are perpendicular, so ABCD is a rhombus (Question 43).
3. A figure that is both a rectangle and a rhombus has four right angles and four equal sides.
4. Hence, ABCD is a square.
Teacher's Note:
a) This question repeats Question 45; either proof is acceptable.
51. ABCD is a rhombus and P, Q, R and S are the mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rectangle.
Answer:
Given: ABCD is a rhombus; P, Q, R, S are the midpoints of AB, BC, CD, DA.
To prove: PQRS is a rectangle.
1. In △ABC, PQ ∥ AC and PQ = \( \frac{1}{2} \)AC. In △ADC, SR ∥ AC and SR = \( \frac{1}{2} \)AC.
2. So PQ ∥ SR and PQ = SR, and PQRS is a parallelogram.
3. In △ABD, PS ∥ BD.
4. The diagonals of a rhombus are perpendicular, so AC ⊥ BD. PQ ∥ AC and PS ∥ BD give PQ ⊥ PS, so ∠QPS = 90°.
5. A parallelogram with a right angle is a rectangle.
6. Hence, PQRS is a rectangle.
Teacher's Note:
a) The shape formed by joining midpoints depends on the diagonals of ABCD.
52. ABC is a triangle right angled at C. A line through the mid-point M of hypotenuse AB and parallel to BC intersects AC at D. Show that
(i) D is the mid-point of AC (ii) MD ⊥ AC
(iii) CM = MA = \( \frac{1}{2} \)AB
Answer:
1. (i) In △ABC, M is the midpoint of AB and MD ∥ BC, so D is the midpoint of AC.
2. (ii) MD ∥ BC and AC is a transversal, so ∠ADM = ∠ACB = 90° (corresponding angles). Hence, MD ⊥ AC.
3. (iii) In △ADM and △CDM: AD = CD, ∠ADM = ∠CDM = 90° and DM is common, so △ADM ≅ △CDM (SAS).
4. Hence, CM = AM.
5. M is the midpoint of AB, so MA = \( \frac{1}{2} \)AB.
6. Hence, CM = MA = \( \frac{1}{2} \)AB.
Teacher's Note:
a) The midpoint of the hypotenuse of a right triangle is equidistant from all three vertices.
53. In ΔABC, D, E and F are respectively the mid-points of sides AB, BC and CA. Show that ΔABC is divided into four congruent triangles by joining D, E and F.
Answer:
Given: D, E, F are the midpoints of AB, BC, CA.
To prove: △ADF ≅ △DBE ≅ △FEC ≅ △EFD.
1. By the midpoint theorem, DE = \( \frac{1}{2} \)AC, EF = \( \frac{1}{2} \)AB and FD = \( \frac{1}{2} \)BC.
2. △ADF has sides AD = \( \frac{1}{2} \)AB, AF = \( \frac{1}{2} \)AC and DF = \( \frac{1}{2} \)BC.
3. △DBE has sides DB = \( \frac{1}{2} \)AB, BE = \( \frac{1}{2} \)BC and DE = \( \frac{1}{2} \)AC.
4. △FEC has sides FC = \( \frac{1}{2} \)AC, EC = \( \frac{1}{2} \)BC and FE = \( \frac{1}{2} \)AB.
5. △EFD has sides EF = \( \frac{1}{2} \)AB, FD = \( \frac{1}{2} \)BC and DE = \( \frac{1}{2} \)AC.
6. In each triangle the three sides are \( \frac{1}{2} \)AB, \( \frac{1}{2} \)BC and \( \frac{1}{2} \)AC, so all four triangles are congruent (SSS).
7. Hence proved.
Teacher's Note:
a) Each small triangle has sides equal to half of the sides of △ABC.
54. Prove that the quadrilateral formed by joining the mid-points of the sides of a quadrilateral, in order, is a parallelogram.
Answer:
Given: P, Q, R, S are the midpoints of AB, BC, CD, DA of quadrilateral ABCD.
To prove: PQRS is a parallelogram.
Construction: Join AC.
1. In △ABC, P and Q are midpoints, so PQ ∥ AC and PQ = \( \frac{1}{2} \)AC.
2. In △ADC, S and R are midpoints, so SR ∥ AC and SR = \( \frac{1}{2} \)AC.
3. Hence, PQ ∥ SR and PQ = SR.
4. One pair of opposite sides is equal and parallel.
5. Hence, PQRS is a parallelogram.
Teacher's Note:
a) The diagonal AC is the key construction.
55. l, m and n are three parallel lines intersected by transversals p and q such that l, m and n cut off equal intercepts AB and BC on p. Show that l, m and n cut off equal intercepts DE and EF on q.
Answer:
Given: l ∥ m ∥ n; p meets them at A, B, C and q meets them at D, E, F; AB = BC.
To prove: DE = EF.
Construction: Through D draw DH ∥ p meeting m at G and n at H.
1. ABGD is a parallelogram (AD ∥ BG as l ∥ m, DG ∥ AB), so DG = AB.
2. BCHG is a parallelogram, so GH = BC.
3. AB = BC, so DG = GH; G is the midpoint of DH.
4. In △DHF, G is the midpoint of DH and GE ∥ HF (m ∥ n), so E is the midpoint of DF.
5. Hence, DE = EF.
Teacher's Note:
a) The intercept property of parallel lines is a direct consequence of the midpoint theorem.
56. In parallelogram ABCD, two points P and Q are taken on diagonal BD such that DP = BQ. Show that: APCQ is a parallelogram
Answer:
Given: ABCD is a parallelogram with DP = BQ on BD.
To prove: APCQ is a parallelogram.
1. Let the diagonals AC and BD meet at O. Then OA = OC and OB = OD.
2. OP = OD - DP and OQ = OB - BQ, so OP = OQ.
3. In APCQ, the diagonals AC and PQ bisect each other at O.
4. Hence, APCQ is a parallelogram.
Teacher's Note:
a) Use the diagonals test for a parallelogram.
57. In the below figure, AB ∥ DE, AB = DE, AC ∥ DF and AC = DF. Prove that BC ∥ EF and BC = EF.
Answer:
Given: AB ∥ DE, AB = DE, AC ∥ DF, AC = DF.
To prove: BC ∥ EF and BC = EF.
1. AB ∥ DE and AB = DE, so ABED is a parallelogram; hence AD ∥ BE and AD = BE.
2. AC ∥ DF and AC = DF, so ACFD is a parallelogram; hence AD ∥ CF and AD = CF.
3. BE ∥ CF and BE = CF (both equal AD).
4. So BCFE is a parallelogram.
5. Hence, BC ∥ EF and BC = EF.
Teacher's Note:
a) Two parallelograms that share the side AD give the third parallelogram BCFE.
58. A square is inscribed in an isosceles right triangle so that the square and the triangle have one angle common. Show that the vertex of the square opposite the vertex of the common angle bisects the hypotenuse.
Answer:
Given: Isosceles right △ABC with ∠C = 90° and AC = BC; square CDEF with D on BC, F on AC and E on AB.
To prove: E is the midpoint of AB.
1. ∠B = 45° (isosceles right triangle) and ∠BDE = 90°, so ∠BED = 45°; hence DE = BD.
2. DE = CD (sides of the square), so BD = CD and D is the midpoint of BC.
3. DE ∥ CA (opposite sides of the square) and D is the midpoint of BC, so E is the midpoint of AB (converse of the midpoint theorem).
4. Hence, the vertex E bisects the hypotenuse.
Teacher's Note:
a) Name the triangle and the square clearly before starting.
59. ABCD is a rectangle and P, Q, R and S are mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rhombus.
Answer:
Given: ABCD is a rectangle; P, Q, R, S are the midpoints of AB, BC, CD, DA.
To prove: PQRS is a rhombus.
1. Join AC and BD; in a rectangle AC = BD.
2. PQ = \( \frac{1}{2} \)AC, QR = \( \frac{1}{2} \)BD, RS = \( \frac{1}{2} \)AC and SP = \( \frac{1}{2} \)BD (midpoint theorem).
3. AC = BD, so PQ = QR = RS = SP.
4. All four sides are equal.
5. Hence, PQRS is a rhombus.
Teacher's Note:
a) Compare with Question 51, where the parent figure was a rhombus.
60. Show that the line segments joining the mid-points of the opposite sides of a quadrilateral bisect each other.
Answer:
Given: P, Q, R, S are the midpoints of AB, BC, CD, DA of quadrilateral ABCD.
To prove: PR and QS bisect each other.
1. By Question 54, PQRS is a parallelogram.
2. PR and QS are the diagonals of PQRS.
3. The diagonals of a parallelogram bisect each other.
4. Hence, PR and QS bisect each other.
Teacher's Note:
a) The segments PR and QS join the midpoints of opposite sides of ABCD.
61. E and F are respectively the mid-points of the non-parallel sides AD and BC of a trapezium ABCD. Prove that EF ∥ AB and EF = \( \frac{1}{2} \)(AB + CD).
Answer:
Given: AB ∥ CD; E and F are the midpoints of AD and BC.
To prove: EF ∥ AB and EF = \( \frac{1}{2} \)(AB + CD).
Construction: Join AF and produce it to meet DC produced at G.
1. In △AFB and △GFC: BF = CF, ∠AFB = ∠GFC (vertically opposite) and ∠ABF = ∠GCF (alternate angles, AB ∥ CG).
2. So △AFB ≅ △GFC (ASA), giving AF = GF and AB = CG.
3. In △ADG, E and F are the midpoints of AD and AG, so EF ∥ DG and EF = \( \frac{1}{2} \)DG.
4. DG ∥ AB, so EF ∥ AB.
5. EF = \( \frac{1}{2} \)DG = \( \frac{1}{2} \)(DC + CG) = \( \frac{1}{2} \)(DC + AB).
6. Hence proved.
Teacher's Note:
a) This is the trapezium midsegment theorem.
62. Prove that the quadrilateral formed by the bisectors of the angles of a parallelogram is a rectangle.
Answer:
Given: ABCD is a parallelogram; the bisectors of its angles form PQRS.
To prove: PQRS is a rectangle.
1. The bisectors of ∠A and ∠B meet at P with ∠APB = 90°, because ∠A + ∠B = 180° gives ∠PAB + ∠PBA = 90°.
2. In the same way the bisectors meet at right angles at Q, R and S.
3. The four angles of PQRS are vertically opposite to these right angles, so each is 90°.
4. Hence, PQRS is a rectangle.
Teacher's Note:
a) This question repeats Question 41.
63. P and Q are points on opposite sides AD and BC of a parallelogram ABCD such that PQ passes through the point of intersection O of its diagonals AC and BD. Show that PQ is bisected at O.
Answer:
Given: PQ passes through O, the intersection of the diagonals of parallelogram ABCD.
To prove: OP = OQ.
1. In △POD and △QOB: ∠POD = ∠QOB (vertically opposite), OD = OB (diagonals bisect each other) and ∠PDO = ∠QBO (alternate angles, AD ∥ BC).
2. So △POD ≅ △QOB (ASA).
3. Hence, OP = OQ, that is, PQ is bisected at O.
Teacher's Note:
a) Every line through O is bisected at O in a parallelogram.
64. ABCD is a rectangle in which diagonal BD bisects ∠B. Show that ABCD is a square.
Answer:
Given: ABCD is a rectangle and BD bisects ∠B.
To prove: ABCD is a square.
1. ∠ABC = 90° and BD bisects it, so ∠ABD = ∠CBD = 45°.
2. In △ABD, ∠A = 90° and ∠ABD = 45°, so ∠ADB = 45°.
3. ∠ABD = ∠ADB, so AD = AB.
4. A rectangle with a pair of adjacent equal sides is a square.
5. Hence, ABCD is a square.
Teacher's Note:
a) The equal angles ∠ABD and ∠ADB give the equal sides AB and AD.
65. D, E and F are respectively the mid-points of the sides AB, BC and CA of a triangle ABC. Prove that by joining these mid-points D, E and F, the triangles ABC is divided into four congruent triangles.
Answer:
Given: D, E, F are the midpoints of AB, BC, CA.
To prove: △ADF ≅ △DBE ≅ △FEC ≅ △EFD.
1. By the midpoint theorem, DE = \( \frac{1}{2} \)AC, EF = \( \frac{1}{2} \)AB and FD = \( \frac{1}{2} \)BC.
2. Each of the four small triangles has sides \( \frac{1}{2} \)AB, \( \frac{1}{2} \)BC and \( \frac{1}{2} \)AC.
3. Hence, the four triangles are congruent (SSS).
4. Hence proved.
Teacher's Note:
a) This question repeats Question 53.
66. Prove that the line joining the mid-points of the diagonals of a trapezium is parallel to the parallel sides of the trapezium.
Answer:
Given: AB ∥ CD in trapezium ABCD; M and N are the midpoints of AC and BD.
To prove: MN ∥ AB ∥ CD.
Construction: Join DM and produce it to meet AB at E.
1. In △DMC and △EMA: ∠DMC = ∠EMA (vertically opposite), MC = MA and ∠DCM = ∠EAM (alternate angles).
2. So △DMC ≅ △EMA (ASA), giving DM = EM.
3. In △DEB, M and N are the midpoints of DE and DB, so MN ∥ EB.
4. EB lies along AB, so MN ∥ AB and hence MN ∥ CD.
5. Hence proved.
Teacher's Note:
a) Question 79 extends this result to give the length of MN.
67. P is the mid-point of the side CD of a parallelogram ABCD. A line through C parallel to PA intersects AB at Q and DA produced at R. Prove that DA = AR and CQ = QR.
Answer:
Given: P is the midpoint of CD, CR ∥ PA, Q on AB and R on DA produced.
To prove: DA = AR and CQ = QR.
1. In △DRC, P is the midpoint of DC and AP ∥ RC, so A is the midpoint of DR. Hence DA = AR.
2. AB ∥ DC gives AQ ∥ PC, and AP ∥ QC, so APCQ is a parallelogram; AQ = PC = \( \frac{1}{2} \)DC = \( \frac{1}{2} \)AB, so Q is the midpoint of AB.
3. In △AQR and △BQC: AQ = BQ, ∠AQR = ∠BQC (vertically opposite) and ∠QAR = ∠QBC (alternate angles, AR ∥ BC).
4. So △AQR ≅ △BQC (ASA).
5. Hence, QR = QC.
Teacher's Note:
a) The midpoint converse is used for the first result and congruence for the second.
68. E is the mid-point of a median AD of ΔABC and BE is produced to meet AC at F. Show that AF = \( \frac{1}{3} \)AC
Answer:
Given: AD is a median, E is the midpoint of AD and BE meets AC at F.
To prove: AF = \( \frac{1}{3} \)AC.
Construction: Draw DK ∥ BF meeting AC at K.
1. In △ADK, E is the midpoint of AD and EF ∥ DK, so F is the midpoint of AK; AF = FK.
2. In △BCF, D is the midpoint of BC and DK ∥ BF, so K is the midpoint of CF; FK = KC.
3. AF = FK = KC, so AF = \( \frac{1}{3} \)AC.
4. Hence proved.
Teacher's Note:
a) This is the same result as Question 2, with the construction stated.
69. Show that the quadrilateral formed by joining the mid-points of the consecutive sides of a square is also a square.
Answer:
Given: ABCD is a square; P, Q, R, S are the midpoints of AB, BC, CD, DA.
To prove: PQRS is a square.
1. In a square, AC = BD and AC ⊥ BD.
2. PQ = SR = \( \frac{1}{2} \)AC and QR = PS = \( \frac{1}{2} \)BD, with PQ ∥ SR ∥ AC and QR ∥ PS ∥ BD.
3. So PQRS is a parallelogram with PQ = QR (AC = BD) and PQ ⊥ QR (AC ⊥ BD).
4. A parallelogram with equal adjacent sides and a right angle is a square.
5. Hence, PQRS is a square.
Teacher's Note:
a) The diagonals of the parent square decide the shape of the midpoint quadrilateral.
70. In a parallelogram ABCD, AB = 10 cm and AD = 6 cm. The bisector of ∠A meets DC in E. AE and BC produced meet at F. Find the length of CF.
Answer:
1. AD ∥ BF and AF is a transversal, so ∠DAF = ∠AFB (alternate angles).
2. ∠DAF = ∠BAF (AE bisects ∠A), so ∠BAF = ∠AFB and BF = AB = 10 cm.
3. BF = BC + CF, so CF = 10 - 6 = 4 cm.
4. Hence, CF = 4 cm.
Teacher's Note:
a) Check using DE: DE = AD = 6 cm, so EC = 4 cm = CF.
71. P, Q, R and S are respectively the mid-points of the sides AB, BC, CD and DA of a quadrilateral ABCD in which AC = BD. Prove that PQRS is a rhombus.
Answer:
Given: P, Q, R, S are the midpoints of AB, BC, CD, DA and AC = BD.
To prove: PQRS is a rhombus.
1. PQRS is a parallelogram (Question 54).
2. PQ = \( \frac{1}{2} \)AC and QR = \( \frac{1}{2} \)BD (midpoint theorem).
3. AC = BD, so PQ = QR.
4. A parallelogram with equal adjacent sides is a rhombus.
5. Hence, PQRS is a rhombus.
Teacher's Note:
a) Equal diagonals of ABCD give equal sides of PQRS.
72. P, Q, R and S are respectively the mid-points of the sides AB, BC, CD and DA of a quadrilateral ABCD such that AC ⊥ BD. Prove that PQRS is a rectangle.
Answer:
Given: P, Q, R, S are the midpoints of AB, BC, CD, DA and AC ⊥ BD.
To prove: PQRS is a rectangle.
1. PQRS is a parallelogram with PQ ∥ AC and QR ∥ BD (midpoint theorem).
2. AC ⊥ BD, so PQ ⊥ QR and ∠PQR = 90°.
3. A parallelogram with one right angle is a rectangle.
4. Hence, PQRS is a rectangle.
Teacher's Note:
a) Perpendicular diagonals of ABCD give a right angle in PQRS.
73. P, Q, R and S are respectively the mid-points of sides AB, BC, CD and DA of quadrilateral ABCD in which AC = BD and AC ⊥ BD. Prove that PQRS is a square.
Answer:
Given: P, Q, R, S are the midpoints of AB, BC, CD, DA with AC = BD and AC ⊥ BD.
To prove: PQRS is a square.
1. PQRS is a parallelogram (Question 54).
2. AC = BD gives PQ = QR (each is half of a diagonal), so PQRS is a rhombus.
3. AC ⊥ BD gives ∠PQR = 90°.
4. A rhombus with a right angle is a square.
5. Hence, PQRS is a square.
Teacher's Note:
a) This combines Questions 71 and 72.
74. A diagonal of a parallelogram bisects one of its angles. Show that it is a rhombus. P and Q are the mid-points of the opposite sides AB and CD of a parallelogram
Answer:
Given: Diagonal AC of parallelogram ABCD bisects ∠A.
To prove: ABCD is a rhombus.
1. AB ∥ DC with transversal AC: ∠DCA = ∠CAB (alternate angles).
2. ∠CAB = ∠CAD (AC bisects ∠A), so ∠DCA = ∠DAC.
3. In △ADC, DC = AD (sides opposite equal angles).
4. DC = AB and AD = BC (opposite sides), so all four sides are equal.
5. Hence, ABCD is a rhombus.
Teacher's Note:
a) The second sentence about P and Q is an incomplete statement; it belongs to the next question.
b) A parallelogram with a pair of equal adjacent sides is a rhombus.
75. In quadrilateral ABCD. AQ intersects DP at S and BQ intersects CP at R. Show that PRQS is a parallelogram.
Answer:
Given: ABCD is a parallelogram (as in the previous question), P and Q are the midpoints of AB and CD, AQ meets DP at S and BQ meets CP at R.
To prove: PRQS is a parallelogram.
1. AP = \( \frac{1}{2} \)AB = \( \frac{1}{2} \)CD = QC and AP ∥ QC, so APCQ is a parallelogram and AQ ∥ PC, that is SQ ∥ PR.
2. DQ = \( \frac{1}{2} \)CD = \( \frac{1}{2} \)AB = PB and DQ ∥ PB, so DPBQ is a parallelogram and DP ∥ QB, that is SP ∥ QR.
3. Both pairs of opposite sides of PRQS are parallel.
4. Hence, PRQS is a parallelogram.
Teacher's Note:
a) The printed question does not say that ABCD is a parallelogram; this is needed and comes from the previous question (see Question 46).
76. ABCD is a quadrilateral in which AB ∥ DC and AD = BC. Prove that ∠A = ∠B and ∠C = ∠D.
Answer:
Given: AB ∥ DC and AD = BC (ABCD is a trapezium).
To prove: ∠A = ∠B and ∠C = ∠D.
Construction: Draw DE ⊥ AB and CF ⊥ AB.
1. DE = CF (distance between parallel lines).
2. In right triangles AED and BFC: AD = BC and DE = CF, so △AED ≅ △BFC (RHS).
3. Hence, ∠A = ∠B.
4. ∠A + ∠D = 180° and ∠B + ∠C = 180° (co-interior angles, AB ∥ DC).
5. Since ∠A = ∠B, ∠D = ∠C.
6. Hence proved.
Teacher's Note:
a) As in Question 12, the figure must be a trapezium (AD not parallel to BC).
77. ABC is a triangle. D is a point on AB such that AD = \( \frac{1}{4} \)AB and E is a point on AC such that AE = \( \frac{1}{4} \)AC. Prove that DE = \( \frac{1}{4} \)BC.
Answer:
Given: AD = \( \frac{1}{4} \)AB and AE = \( \frac{1}{4} \)AC.
To prove: DE = \( \frac{1}{4} \)BC.
Construction: Let M and N be the midpoints of AB and AC; join MN.
1. By the midpoint theorem in △ABC, MN ∥ BC and MN = \( \frac{1}{2} \)BC.
2. AD = \( \frac{1}{4} \)AB = \( \frac{1}{2} \)AM, so D is the midpoint of AM; similarly E is the midpoint of AN.
3. In △AMN, DE = \( \frac{1}{2} \)MN.
4. DE = \( \frac{1}{2} \) × \( \frac{1}{2} \)BC = \( \frac{1}{4} \)BC.
5. Hence proved.
Teacher's Note:
a) The midpoint theorem is applied twice, once in △ABC and once in △AMN.
78. Let ABC be an isosceles triangle in which AB = AC. If D, E, F be the midpoints of the sides BC, CA and AB respectively, show that the segment AD and EF bisect each other at right angles.
Answer:
Given: AB = AC; D, E, F are the midpoints of BC, CA, AB.
To prove: AD and EF bisect each other at right angles.
1. By the midpoint theorem, FD ∥ AC, DE ∥ AB, FD = \( \frac{1}{2} \)AC and DE = \( \frac{1}{2} \)AB.
2. So AFDE is a parallelogram.
3. AF = \( \frac{1}{2} \)AB = \( \frac{1}{2} \)AC = AE, so AFDE has equal adjacent sides and is a rhombus.
4. The diagonals of a rhombus bisect each other at right angles.
5. Hence, AD and EF bisect each other at right angles.
Teacher's Note:
a) The equal sides AB = AC are what make AFDE a rhombus.
79. Prove that the line segment joining the mid-points of the diagonals of a trapezium is parallel to each of the parallel sides and is equal to half the difference of these sides.
Answer:
Given: AB ∥ CD with AB > CD; M and N are the midpoints of AC and BD.
To prove: MN ∥ AB ∥ CD and MN = \( \frac{1}{2} \)(AB - CD).
Construction: Join DM and produce it to meet AB at E.
1. △DMC ≅ △EMA (ASA: vertically opposite angles, MC = MA, alternate angles), so DM = EM and DC = AE.
2. In △DEB, M and N are the midpoints of DE and DB, so MN ∥ EB and MN = \( \frac{1}{2} \)EB.
3. EB = AB - AE = AB - CD.
4. Hence, MN ∥ AB ∥ CD and MN = \( \frac{1}{2} \)(AB - CD).
Teacher's Note:
a) The result is the same as Question 66 with the length added.
80. P is the midpoint of side AB of a parallelogram ABCD. A line through B parallel to PD meets DC at Q and AD produced at R. Prove that (i) AR = 2BC (ii) BR = 2BQ.
Answer:
Given: P is the midpoint of AB, BR ∥ PD, Q on DC and R on AD produced.
To prove: (i) AR = 2BC and (ii) BR = 2BQ.
1. DQ ∥ PB (AB ∥ DC) and DP ∥ QB, so DPBQ is a parallelogram.
2. (i) In △ARB, P is the midpoint of AB and PD ∥ BR, so D is the midpoint of AR. Hence AR = 2AD = 2BC.
3. (ii) DQ = PB = \( \frac{1}{2} \)AB = \( \frac{1}{2} \)DC, so Q is the midpoint of DC. In △ARB, D is the midpoint of AR and DQ ∥ AB, so Q is the midpoint of BR.
4. Hence, BR = 2BQ.
Teacher's Note:
a) Parallelogram DPBQ gives DQ = PB, which is the key fact in part (ii).
Free study material for Mathematics
CBSE Class 9 Mathematics Study Material: Chapter 08 Quadrilaterals
Comprehensive Study Resources for Chapter 08 Quadrilaterals
Access comprehensive study material for Chapter 08 Quadrilaterals, including revision notes, concept maps, and high-probability questions. These resources are designed in alignment with the latest 2026 CBSE syllabus for Class 9 Mathematics to support effective exam preparation.
Understanding Marking Schemes
Designed around the official curriculum, these study guides guarantee standard compliance. Reviewing step-by-step solutions clarifies complex sub-topics within Chapter 08 Quadrilaterals and demystifies standard marking schemes for Mathematics evaluations.
Complete Revision for Mathematics
Wrap up your chapter revision by testing your knowledge against standard objective question formats. Explore our full library of free, up-to-date sample papers and online assessments to secure top grades in your CBSE examinations.
FAQs
Our advanced study package for Chapter 08 Quadrilaterals includes detailed concepts, diagrams, Mind Maps, and explanation of complex topics to ensure Class 9 students learn as per syllabus for 2026 exams.
The Mind Maps provided for Chapter 08 Quadrilaterals act as visual anchors which will help faster recall during high-pressure exams.
Yes, teachers use our Class 9 Mathematics resources for lesson planning as they are in simple language and have lot of solved examples.
Yes, You can download the complete, mobile-friendly PDF of the Mathematics Chapter 08 Quadrilaterals advanced resources for free.
Yes, our subject matter experts have updated the Chapter 08 Quadrilaterals material to align with the rationalized NCERT textbooks and have removed deleted topics and added new competency-based questions.
