CBSE Class 10 Science The Human Eye And The Colourful World Notes Set 02

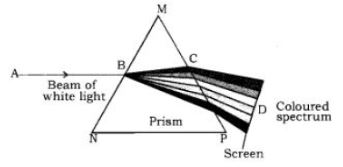

Dispersion of white light by a glass prism: The phenomenon of splitting of white light into its seven constituent colors when it passes through a glass prism is called dispersion of white light. The various colours seen are Violet, Indigo, Blue, Green, Yellow, Orange and Red. The sequence of colours remembers as VIBGYOR. The band of seven colours is called the spectrum. The different component colour of light bends at a different angle with respect to the incident angle. The violet light bends the east while the red bends most.

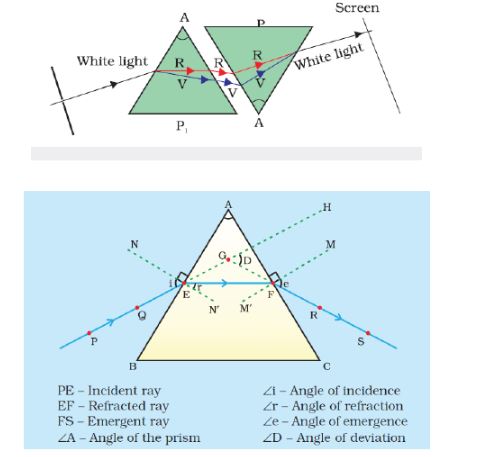

Issac Newton: He was the first, who obtained spectrum of sunlight by using glass prism. He tried to split the spectrum of white light more by using another similar prism, but he could not get any more colours.

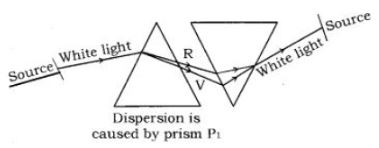

He repeated the experiment using second prism in inverted position with respect to the first prism. It allowed all the colours of spectrum to pass through second prism. He found white light emerges on the other side of second prism.

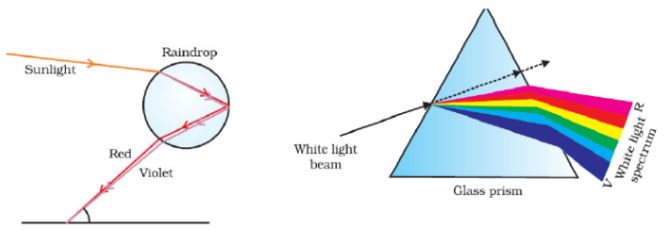

Rainbow: It is the spectrum of sunlight in nature. It is formed due to the dispersion of sunlight by the tiny water droplet, present in the atmosphere.

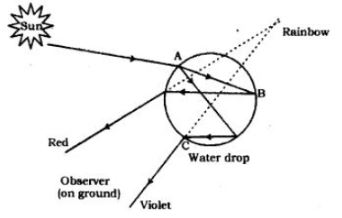

Formation of the rainbow: The water droplets act like small prism. They refract and disperse the incident sunlight, then reflect it internally, and finally refract it again when it comes out of the raindrop. Due to the dispersion of light and internal reflection, different colours reach the observer’s eye.
Red colour appears on top and violet at the bottom of rainbow.
A rainbow is always formed in a direction opposite to that of Sun.
At ‘A’ – Refraction and dispersion take place.
At ‘B’ – Internal reflection takes place.
At ‘C’ – Refraction and dispersion take place.

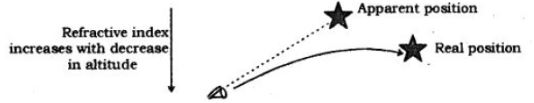

Twinkling of Star: It is also due to atmospheric refraction.
Distant star act like a point source of light. As the beam of starlight keeps deviating from its path, the apparent position of star keeps on changing because physical condition of earth’s atmosphere is not stationary.
Hence, the amount of light enters our eyes fluctuate sometimes bright and sometime dim. This is the “Twinkling effect of star”.

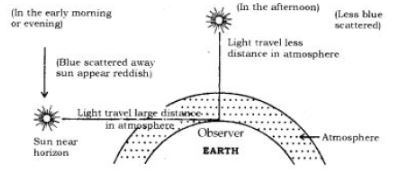

Color of Sunrise and Sunset: While sunset and sunrise, the colour of the sun and its surrounding appear red. During sunset and sunrise, the sun is near to horizon, and therefore, the sunlight has to travel larger distance in atmosphere. Due to this, most of the blue light (shorter wavelength) is scattered away by the particles. The light of longer wavelength (red colour) reaches our eye. This is why sun appears red in colour.

Why the danger signal or sign is made of red colour?
Red colour scatteres the most when strikes the small particle of fog and smoke because it has the maximum wavelength (visible spectrum). Hence, from large distance also, we can see the red colour clearly.
At noon sun appears white: At noon, the sun is overhead and sunlight would travel shorter distance relatively through the atmosphere. Hence, at noon, the sun appear white as only little of the blue and violet colours are scattered.
