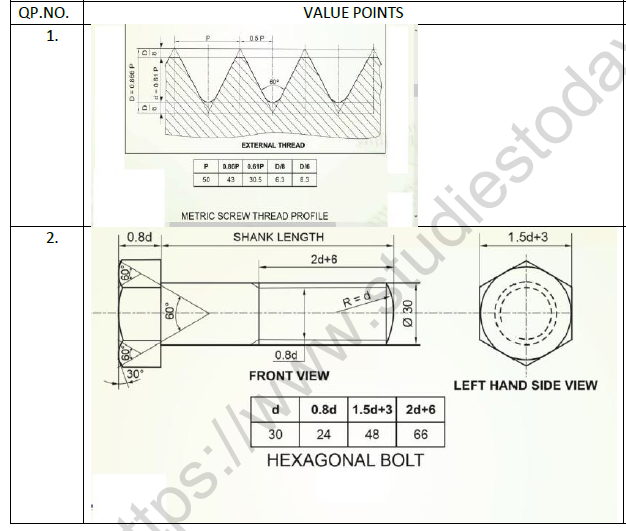

1. Draw to scale 1:1 the standard profile of METRIC THREAD
EXTERNAL,taking enlarged pitch as 50 mm .Give standard dimensions.

2. Draw the front view and left side view of a hexagonal headed bolt of diameter 25 mm, keeping its axis parallel to both VPand HP.Give standard dimensions. Take shank length =100mm
