CBSE Class 12 Engineering Graphics Worksheet Set 03 Solved

Class 12 Engineering Drawing Practice Set: All Chapters

Review targeted practice sets for Class 12 Engineering Drawing All Chapters. Built according to official educational guidelines for the 2026-27 academic year, these downloadable worksheets support daily revision and core concept reinforcement.

Download All Chapters Worksheet PDF

Access the complete worksheet PDF for All Chapters below. Regular practice with these targeted questions builds familiarity with standard exam patterns and helps secure higher marks in final Engineering Drawing evaluations.

1. Construct an isometric scale.

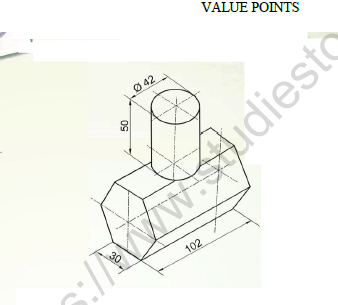

2. Draw the isometric projection to isometric scale of a cylinder of diameter 42 mm and height 30 mm resting centrally and vertically on the rectangular face of a hexagonal prism of side 30 mm and height 90 mm .The axis of the prism being parallel to both VP and HP. Mark all dimensions and indicate the direction of view.

CBSE Class 12 Engineering Graphics Worksheet Set C Solved


Please click on below link to download CBSE Class 12 Engineering Graphics Worksheet Set C Solved
