CBSE Class 12 Engineering Graphics Worksheet Set 02 Solved

Download Class 12 Engineering Drawing Worksheets for All Chapters

Review targeted practice sets for Class 12 Engineering Drawing All Chapters. Built according to official educational guidelines for the 2026-27 academic year, these downloadable worksheets support daily revision and core concept reinforcement.

Access All Chapters Questions and Exercises

Navigate directly to the printable exercises for All Chapters using the digital viewer below. Each practice set allows students to isolate specific topics for thorough review and uninterrupted practice alongside standard textbooks.

1. Construct an isometric scale.

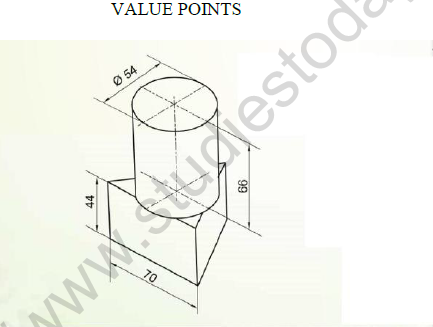

2. Draw the isometric projection to isometric scale of a cylinder of diameter 54 mm and height 64 mm, resting centrally and vertically on the triangular face of a triangular prism of side 70 mm and height 44 mm.One of the sides of the triangle is parallel to VP and away from it. The common axis being perpendicular to HP.Mark all dimensions and indicate the direction of view.

CBSE Class 12 Engineering Graphics Worksheet Set B Solved


Please click on below link to download CBSE Class 12 Engineering Graphics Worksheet Set B Solved

Free study material for Engineering Drawing

Practice Worksheet and Study Resources for Class 12 Engineering Drawing All Chapters

Chapter Practice Questions for Class 12 Engineering Drawing

Explore reliable practice questions for All Chapters tailored for Class 12 Engineering Drawing learners. Use these structured worksheets to evaluate preparedness and strengthen problem-solving skills.

Expert Practice Material for Class 12 Engineering Drawing

Each worksheet is structured around standard CBSE textbooks, allowing students to check their working steps and correct mistakes early in their revision.

Complete Your Chapter Revision

Follow up your worksheet practice by attempting the interactive online Engineering Drawing MCQ test for this chapter to evaluate your execution speed. All platform resources are free to access.
