CBSE Class 12 Multimedia and Web Technology Sample Paper Set 03

1. Question given below are based on FLASH : (20)

a) What is the difference between hiding a frame and locking a frame?

b) Name any two formats in which a Flash Movie can be published.

c) Name the extension of the file created when a Flash movie is published using a Macintosh Projector.

d) Shyama Ad Agency is developing an advertisement for one of its clients. The Client has specified that the movie should be viewable on DVD players as well as on the internet. Also they want that the viewers should not have to download Any special codec to view the file. Keeping these requirements in mind, suggest The most suitable format from the following:

a. AVI

b. MPEG

c. JPEG

Justify your choice.

e) What is the full form of MPEG? What kinds of files are stored using the MPEG file format?

f) Give the full forms and a difference between .DAT and a .GIF file with respect to Multimedia.

g) Differentiate between a Symbol and an Instance.

h) Explain tweening with the help of an example? Name the two kinds of tweening.

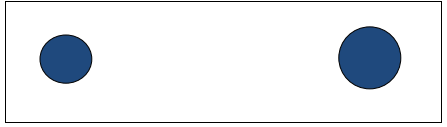

i) Consider the figure given below and do as directed:

• The circle on the left hand side shows the position and size of the image for Frame 1.

• The circle on the right hand side shows the position and size of the image for Frame 25.

Write the procedure and property settings for animating the above scenario.

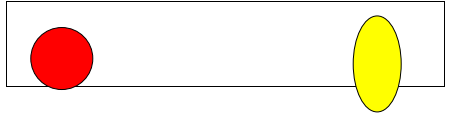

j) Consider the figure given below and do as directed:

• The circle on the left hand side shows the position and size of the image for Frame 1. The color of the image is red.

• The circle on the right hand side shows the position and size of the image for Frame 20. The color of the image is yellow.

Write the procedure and property settings for animating the above scenario.

2. Question given below are based on HTML : (20)

(a) What is the difference between the <FRAME> and <FRAMESET> tags? <1>

Please refer to attached file for CBSE Class 12 Multimedia and Web Technology Sample Paper Set C
