3.MAGNETIC EFFECTS OF CURRENT AND MAGNETISM

GIST

MAGNETIC EFFECTS OF CURRENT AND MAGNETISM:

1. Magnetic field:

    It is a region around a magnet or current carrying conductor in which its magnetic influence can be felt by a magnetic needle.

2. Biot‐Savart Law

    dB =μ0IdlSinθ/4πr2

    μ0=4π x 10‐7 Tm/A

[Direction of dB can be found by using Maxwell’s Right hand thumb rule.]

3. Applications :

   Magnetic field at a centre of a current carrying circular coil B= μ0I/2a

   Magnetic field at a point on the axis of current carrying coil. B= μ0Nia2/2(a2+x2)3/2 (N=no. of turns in the coil)

4. Ampere’s circuital law

   It states that the line integral of magnetic field around any closed path in vacuum/air is μ0 times the total current threading the closed  path.

  ∫ B. dl= μ0 I

5. Applications

i)  Magnetic field due to straight infinitely long current carrying straight conductor. B= μ0 I/2πr

ii) Magnetic field due to a straight solenoid carrying current B= μ0n I N= no. of turns per unit length

iii) Magnetic field due to toroidal solenoid carrying current.

     B= μ0N I / 2πr

     N= Total no. of turns.

6. Force on a moving charge [ Lorentz Force]

(i) In magnetic field F=q(V x B)

(ii) In magnetic and electric field F=q[E+(ν x B)] Lorentz force

7. Cyclotron

(i) Principle

(a) When a charged particle moves at right angle to a uniform magnetic field it describes circular path.

(b) An ion can acquire sufficiently large energy with a low ac voltage making it to cross the same electric field repeatedly under a strong  magnetic field.

(ii) Cyclotron frequency or magnetic resonance frequency

     ν=qB/2πm, T=2πm/Bq; ω=Bq/m

(iii) Maximum velocity and maximum kinetic energy of charged particle.

     Vm=Bqrm/m

     Em=B2q2rm2 / 2m

Also, download cbse class 12 physics chapter wise questions with solutions in PDF format.

8. Force on a current carrying conductor in uniform

    F= (I l x B)

    l=length of conductor

Direction of force can be found out using Fleming’s left hand rule.

9. Force per unit length between parallel infinitely long current carrying straight conductors.

    F/l= μ0 I1 I2/2πd

(a) If currents are in same direction the wires will attract each other.

(b) If currents are in opposite directions they will repel each other.

10. 1 Ampere – One ampere is that current, which when flowing through each of the two parallel straight conductors of infinite length and placed in free space at a distance of 1m from each other, produces between them a force of 2x10‐7 N/m of their length.

11. Torque experienced by a current loop in a uniform B.

      τ = NIBA Sinθ

      τ=MXB

     Where M=NIA

12. Motion of a charge in

(a) Perpendicular magnetic field F=q(vxB),F=qvBSin90=qvB (circular path)

(b) Parallel or antiparallel field F=qvBSin0 (or) qvBSin180=0(Straight‐line path)

     If 0<θ<90 , the path is helix

     vCosθ is responsible for linear motion v, v Sinθ is responsible for circular motion

     Hence trajectory is a helical path

13. Moving coil galvanometer It is a sensitive instrument used for detecting small electric Currents.

Principle: When a current carrying coil is placed in a magnetic field, it experiences a torque.

                 I αθ andI = K θ where K= NAB / C

                 Current sensitivity, I s= θ / I=NBA/K

                 voltage sensitivity, Vs= θ /V=NBA/KR

Changing N ‐> Current sensitivity changes but Voltage Sensitivity does not change

(a) Conversion of galvanometer into ammeter

    A small resistance S is connected in parallel to the galvanometer coil

    S=IgG/( I ‐ I g) ; RA=GS/(G+S)

(b) Conversion of galvanometer into a voltmeter.

     A high resistance R is connected in series with the galvanometer coil.

     R=( V/Ig) –G ; Rv=G+R

     Current loop as a magnetic dipole

     Magnetic dipole moment M =evr/2

     M=n( eh / 4πme)

14. Representation of uniform magnetic field.

B

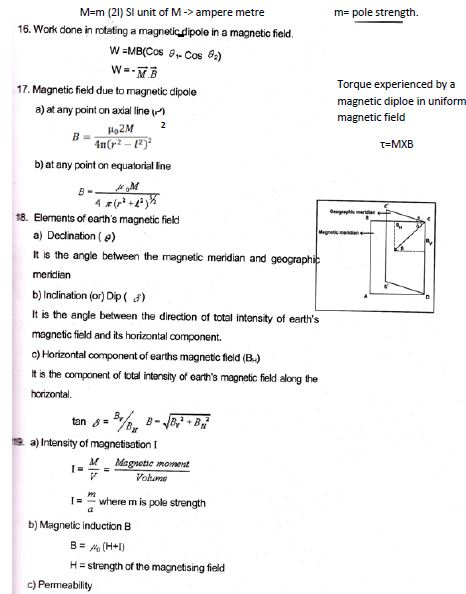

15. Magnetic dipole moment of a magnetic dipole.

The magnetic permeability of a material may be defined as the ration of magnetic induction B to the magnetic intensity H
μ=B/H
