CBSE Class 9 Mathematics Circles Notes Set 02

CBSE Class IX Circle Concepts. Learning the important concepts is very important for every student to get better marks in examinations. The concepts should be clear which will help in faster learning. The attached concepts made as per NCERT and CBSE pattern will help the student to understand the chapter and score better marks in the examinations.

Chapter-10

(Circle)

Key Concept

* Circle - circle is locus of such points which are at equidistant from a fixed point in a plane.

* Concentric circle - Circle having same centre called concentric circle.

* Two arc of a circle called congruent if they have the same degree measure.

* If two arc equal then their corresponding chords are equal.

* The perpendicular from centre to chord of circle, it bisects the chord and converse.

* There is one and only one circle passing through three non-collinear points.

* Equal chords of circle are equidistant from centre.

* The angle subtend by an arc at the centre of circle is twice the angle which subtend at remaining part of circumference.

* Any two angles in the same segment of the circle are equal.

* Angle of semicircle is right angle.

* Equal chords of circle subtend equals angle at the centre of circle.

* If the all vertices of a quadrilateral lie on the circumference of circle then quadrilateral called cyclic.

* In a cycle quadrilateral the sum of opposite angles is 180 degree and converse.

* The exterior angle of a cycle quadrilateral is equal to the opposite interior angle.

 Section - A

Q.1 AD is diameter of a circle and AB is a chord If AD = 34cm, AB=30cm. The distance of AB from centre of circle is.

(a) 17cm  (b) 15cm  (c) 4 cm  (d) 8cm

Q.2 In given figure, O is centre of circle if 0then is equal to<AOC :

(a) 20⁰   (b) 40⁰   (c) 60⁰   (d) 10⁰

Q.3 Given three collinear points then the number of circles which can be drawn through these three points are.

(a) one  (b) two  (c) infinite  (d) none

Q.4 Given two concentric circles with centre O. A line cut the circle at A, B, C and D respectively if AB = 10cm then length of CD.

(a) 5cm (b) 10cm (c) 3.5cm (d) 7.5cm

Q.5 In given figure value of y is

(a) 350 (b) 450 (c) 700 (d) 1400

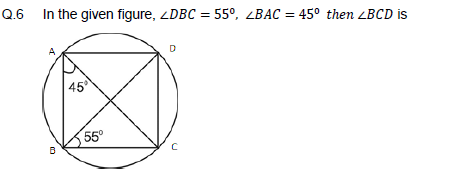

(a) 450 (b) 550 (c) 1000 (d) 800

Section - B

Q.7 In the given figure, is ………………….., given

Q.8 If 0 is centre of circle as shown in the figure,

Q.9 In the given figure, 0 is the center of the circle with radius 5cm. and CD = 8cm determine PQ.

Q.10 Prove that the circle drawn on any equal side of an isosceles triangle as diameter, bisects the base.

Q.11 Prove that cyclic parallelogram is always a rectangle.

Section - C

Q.12 In the given figure AD is diameter of the circle, whose centre is O and AB||CD, Prove that AB = CD

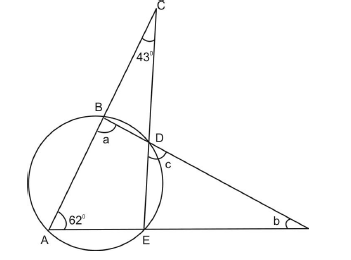

Q.13 In the given figure determine a, b and c.

Q.14 AB is a diameter of circle C (O, r). Chord CD is equal to radius OD. AC and BD produced interest at P. Prove that

Q.15 If two non parallel side of a trapezium are equal, prove that it is cyclic.

Q.16 ABC is a right angle triangle, right angled at A. A circle is inscribed in it. The length of two sides containing angle A is 12cm and 5cm find the radius.

Section - D

Q.17 A circle has radius . It is divided into two segments by a chord of length 2cm. Prove that the angle subtended by the chord at a point in major segment is 450.

Q.18 Two circles interest each other at points A and B. AP and AQ are diameters of the two circles respectively. If find

Q.19 ABCD is a parallelogram. The circle through A, B and C intersects CD produced at E. If AB=10cm, BC=8cm, CE=14cm. Find AE.

Q.20 Prove the sum of either pair of opposite angles of a cycle quadrilateral is 1800.

Q.21 In the given figure, B and E are points on line segment AC and DF respectively show that AD||CF.

Self evaluation

Q.22 In the given figure, OA and OB are respectively perpendiculars to chords CD and EF of a circle whose centre is O. If OA = OB, prove that

Q.23 In the given figure , the altitude BE produced meets the circle at D, determine

Q.24 In the given figure, O is centre of circle of radius 5cm. Determine PQ

Q.25 In the given figure. O is the centre of circle, and OD || BC find x and y.

Q.26 O is circumcentre of the triangle ABC and D is the mid-point of the base BC. Prove that

Answers:

1. (d) 2. (b) 400 3. (d) None 4. (b)

5. (a) 350 6. (d) 800 7. 1050 8. 550

9. 7 cm. 13. a=105,b=13,c=62 16. 2cm.

18. 500, 200 19. 8cm. 23. 350, 280, 620

24. 1cm 25. 300, 150
