NCERT Exemplar Solutions Class 9 Maths Triangles

These NCERT Exemplar solutions for Class 9 Mathematics Chapter 7, Triangles, follow the older Exemplar chapter and give step-by-step answers to all 55 questions: 11 MCQs, 12 short answer questions with reasoning, 11 short answer questions and 21 long answer questions. They cover congruence criteria (SAS, ASA, AAS, SSS, RHS), properties of isosceles and equilateral triangles, inequalities in a triangle and proofs on quadrilaterals. Each answer is followed by a short Teacher's Note to build understanding and an Examination Note on how to present the answer for better marks.

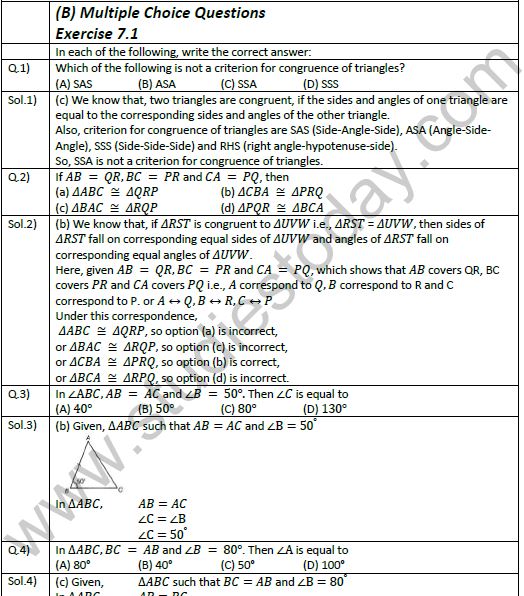

Multiple Choice Questions (MCQs)

Question 1: Which of the following is not a criterion for congruence of triangles?
(a) SAS
(b) ASA
(c) SSA
(d) SSS
Show Answer & Explanation

Answer: (c) SSA

Explanation:
1. The criteria for congruence are SAS, ASA, AAS, SSS and RHS.
2. SSA (two sides and a non-included angle) can give two different triangles, so it is not a criterion.

Teacher's Note:
1. In SAS the angle must lie between the two given sides.
2. Only for a right-angled triangle (RHS) does the hypotenuse-side case work.

Examination Note: Name the valid criteria and state that SSA fails because the angle is not included between the sides.



Question 2: If AB = QR, BC = PR and CA = PQ, then
(a) ΔABC ≅ ΔPQR
(b) ΔCBA ≅ ΔPRQ
(c) ΔBAC ≅ ΔRPQ
(d) ΔPQR ≅ ΔBCA
Show Answer & Explanation

Answer: (b) ΔCBA ≅ ΔPRQ

Explanation:
1. AB = QR, BC = RP and CA = PQ. Vertex B is common to AB and BC, and R is common to QR and RP, so B ↔ R. Similarly A ↔ Q and C ↔ P.
2. The correspondence is A ↔ Q, B ↔ R, C ↔ P. Writing the triangle in the order C, B, A gives P, R, Q, so ΔCBA ≅ ΔPRQ.

Teacher's Note:
1. Match the common vertex of two equal sides first; then the other vertices follow.
2. In a congruence statement the letters must be written in matching order.

Examination Note: Write the correspondence A ↔ Q, B ↔ R, C ↔ P explicitly before choosing the option.



Question 3: In ΔABC, AB = AC and ∠B = 50°. Then ∠C is equal to
(a) 40°
(b) 50°
(c) 80°
(d) 130°
Show Answer & Explanation

Answer: (b) 50°

Explanation:
1. AB = AC, so the angles opposite them are equal: ∠C = ∠B.
2. Hence ∠C = 50°.

Teacher's Note:
1. Angles opposite equal sides are equal.
2. The vertex angle would be 180° − 100° = 80°.

Examination Note: State the theorem used (angles opposite equal sides) in one line.



Question 4: In ΔABC, BC = AB and ∠B = 80°. Then ∠A is equal to
(a) 80°
(b) 40°
(c) 50°
(d) 100°
Show Answer & Explanation

Answer: (c) 50°

Explanation:
1. BC = AB, so ∠A = ∠C (angles opposite equal sides).
2. ∠A + ∠B + ∠C = 180° gives 2∠A = 180° − 80° = 100°, so ∠A = 50°.

Teacher's Note:
1. Find first which angles are equal: the sides AB and BC meet at B, so the base angles are A and C.
2. Then use the angle sum 180°.

Examination Note: Show the angle-sum equation with ∠A written twice.



Question 5: In ΔPQR, ∠R = ∠P and QR = 4 cm and PR = 5 cm. Then the length of PQ is
(a) 4 cm
(b) 5 cm
(c) 2 cm
(d) 2.5 cm
Show Answer & Explanation

Answer: (a) 4 cm

Explanation:
1. ∠R = ∠P, so the sides opposite them are equal: PQ (opposite R) = QR (opposite P).
2. Hence PQ = 4 cm.

Teacher's Note:
1. Sides opposite equal angles are equal; be careful to pick the correct opposite side.
2. The given PR = 5 cm is the base and is not needed.

Examination Note: Mention that PQ is opposite ∠R and QR is opposite ∠P.



Question 6: D is a point on the side BC of a ΔABC such that AD bisects ∠BAC. Then
(a) BD = CD
(b) BA > BD
(c) BD > BA
(d) CD > CA
Show Answer & Explanation

Answer: (b) BA > BD

Explanation:
1. ∠BAD = ∠CAD. In ΔACD the angle ∠BDA is an exterior angle, so ∠BDA > ∠CAD = ∠BAD.
2. In ΔABD, the side opposite the larger angle ∠BDA is BA, and the side opposite ∠BAD is BD. So BA > BD.

Teacher's Note:
1. An exterior angle is larger than each opposite interior angle.
2. Then use: larger angle has the larger opposite side.

Examination Note: Write the two steps: exterior angle inequality, then side opposite the larger angle.



Question 7: It is given that ΔABC ≅ ΔFDE and AB = 5 cm, ∠B = 40° and ∠A = 80°. Then which of the following is true?
(a) DF = 5 cm, ∠F = 60°
(b) DF = 5 cm, ∠E = 60°
(c) DE = 5 cm, ∠E = 60°
(d) DE = 5 cm, ∠D = 40°
Show Answer & Explanation

Answer: (b) DF = 5 cm, ∠E = 60°

Explanation:
1. ΔABC ≅ ΔFDE gives A ↔ F, B ↔ D, C ↔ E. So AB = FD = 5 cm, i.e. DF = 5 cm.
2. ∠C = 180° − (80° + 40°) = 60°, and ∠E = ∠C, so ∠E = 60°.

Teacher's Note:
1. Match letters in the same positions: A with F, B with D, C with E.
2. Find the missing angle with the angle sum.

Examination Note: Write the correspondence first, then the equal side and the equal angle.



Question 8: Two sides of a triangle are of lengths 5 cm and 1.5 cm. The length of the third side of the triangle cannot be
(a) 3.6 cm
(b) 4.1 cm
(c) 3.8 cm
(d) 3.4 cm
Show Answer & Explanation

Answer: (d) 3.4 cm

Explanation:
1. The third side must lie between the difference and the sum: 5 − 1.5 < third side < 5 + 1.5, that is 3.5 < x < 6.5.
2. 3.6, 4.1 and 3.8 are in this range, but 3.4 cm is not.

Teacher's Note:
1. Third side is greater than the difference and less than the sum of the other two.
2. Check each option against the range.

Examination Note: Always write the range 3.5 < x < 6.5 and then eliminate the options.



Question 9: In ΔPQR, if ∠R > ∠Q, then
(a) QR > PR
(b) PQ > PR
(c) PQ < PR
(d) QR < PR
Show Answer & Explanation

Answer: (b) PQ > PR

Explanation:
1. The side opposite the larger angle is longer. ∠R > ∠Q, and the side opposite ∠R is PQ while the side opposite ∠Q is PR.
2. So PQ > PR.

Teacher's Note:
1. Opposite of R is PQ; opposite of Q is PR.
2. Larger angle, larger opposite side.

Examination Note: Name the side opposite each angle before comparing.



Question 10: In triangles ABC and PQR, AB = AC, ∠C = ∠P and ∠B = ∠Q. The two triangles are
(a) isosceles but not congruent
(b) isosceles and congruent
(c) congruent but not isosceles
(d) neither congruent nor isosceles
Show Answer & Explanation

Answer: (a) isosceles but not congruent

Explanation:
1. AB = AC gives ∠B = ∠C, so ΔABC is isosceles.
2. Then ∠P = ∠C = ∠B = ∠Q, so QR = PR and ΔPQR is also isosceles.
3. Only the angles are known to be equal (AAA), which does not guarantee congruence. So the triangles are isosceles but not congruent (in general).

Teacher's Note:
1. Equal angles give similar triangles, not necessarily congruent ones.
2. AAA is not a congruence criterion.

Examination Note: Mention that AAA is not a criterion of congruence to justify 'not congruent'.



Question 11: In triangles ABC and DEF, AB = FD and ∠A = ∠D. The two triangles will be congruent by SAS axiom if
(a) BC = EF
(b) AC = DE
(c) AC = EF
(d) BC = DE
Show Answer & Explanation

Answer: (b) AC = DE

Explanation:
1. AB = DF and ∠A = ∠D, so for SAS the other side containing ∠A must be equal: AC and the side containing ∠D, which is DE.
2. So AC = DE.

Teacher's Note:
1. In SAS the equal angle must lie between the two equal sides.
2. The angle A is included between AB and AC; the angle D between DF and DE.

Examination Note: State which sides form the angle at A and at D.



Short Answer Questions with Reasoning

Question 1. In triangles ABC and PQR, ∠A = ∠Q and ∠B = ∠R. Which side of ΔPQR should be equal to side AB of ΔABC so that the two triangles are congruent? Give reason for your answer.
Answer:
AB lies between ∠A and ∠B. The corresponding side in ΔPQR lies between ∠Q and ∠R, which is QR.
If AB = QR, the triangles are congruent by ASA.
In simple words: The side between the two equal angles must be equal for ASA.

Teacher's Note:
1. ASA needs the equal side to be included between the two equal angles.
2. Match the angles first: A ↔ Q and B ↔ R.

Examination Note: Write the criterion (ASA) with the name of the side.



Question 2. In triangles ABC and PQR, ∠A = ∠Q and ∠B = ∠R. Which side of ΔPQR should be equal to side BC of ΔABC so that the two triangles are congruent? Give reason for your answer.
Answer:
Two angles are equal: A ↔ Q and B ↔ R, so C ↔ P. Side BC lies opposite ∠A and its counterpart lies opposite ∠Q, so the corresponding side is RP.
If BC = RP, the triangles are congruent by AAS.
In simple words: A side that is not between the two equal angles gives AAS congruence.

Teacher's Note:
1. BC corresponds to RP because B ↔ R and C ↔ P.
2. AAS: two angles and a non-included side.

Examination Note: Write the correspondence A ↔ Q, B ↔ R, C ↔ P and name AAS.



Question 3. "If two sides and an angle of one triangle are equal to two sides and an angle of another triangle, then the two triangles must be congruent." Is the statement true? Why?
Answer:
No. The congruence rule SAS requires the equal angle to be included between the two equal sides.
If the equal angle is not the included angle, the triangles need not be congruent.
In simple words: The angle must lie between the two equal sides; otherwise the triangles may differ.

Teacher's Note:
1. SAS means Side-Angle-Side in that order.
2. SSA is not a congruence criterion.

Examination Note: Mention the word 'included' in your reason.



Question 4. "If two angles and a side of one triangle are equal to two angles and a side of another triangle, then the two triangles must be congruent." Is the statement true? Why?
Answer:
No. The equal sides must be corresponding sides, that is, in the same position relative to the equal angles.
If the equal side is not the corresponding one, the triangles need not be congruent.
In simple words: The equal side has to be in the matching position in both triangles.

Teacher's Note:
1. With two equal angles the third angle is also equal; the side then decides the size.
2. Equal angles with non-matching sides give triangles of different sizes.

Examination Note: State that the sides must be corresponding sides.



Question 5. Is it possible to construct a triangle with lengths of its sides as 4 cm, 3 cm and 7 cm? Give reason for your answer.
Answer:
No. The sum of any two sides of a triangle must be greater than the third side.
Here 4 + 3 = 7, which is equal to the third side, not greater. So no triangle exists.
In simple words: The two shorter sides only just reach the length of the longest side, so they lie along a line.

Teacher's Note:
1. Add the two smaller sides and compare with the largest.
2. Equality gives a straight segment, not a triangle.

Examination Note: Show the addition 4 + 3 = 7 and state that it is not greater than 7.



Question 6. It is given that ΔABC ≅ ΔRPQ. Is it true to say that BC = QR? Why?
Answer:
ΔABC ≅ ΔRPQ means A ↔ R, B ↔ P, C ↔ Q.
So AB = RP, BC = PQ and AC = RQ.
BC corresponds to PQ, not QR. No, it is not true. (In fact AC = QR.)
In simple words: BC matches PQ because B and C correspond to P and Q.

Teacher's Note:
1. Write the correspondence letter by letter.
2. QR is the same as RQ, which corresponds to AC.

Examination Note: List all three pairs of equal sides from the congruence statement.



Question 7. If ΔPQR ≅ ΔEDF, then is it true to say that PR = EF? Give reason for your answer.
Answer:
ΔPQR ≅ ΔEDF gives P ↔ E, Q ↔ D, R ↔ F.
So PQ = ED, QR = DF and PR = EF. Yes, it is true, since PR corresponds to EF.
In simple words: P and R match E and F, so PR = EF.

Teacher's Note:
1. Read the letters of the congruence statement in order.
2. CPCT: corresponding parts of congruent triangles are equal.

Examination Note: Write the three pairs of equal sides to show the correspondence.



Question 8. In ΔPQR, ∠P = 70° and ∠R = 30°. Which side of this triangle is the longest? Give reason for your answer.
Answer:
∠Q = 180° − (70° + 30°) = 80°.
∠Q is the largest angle. The side opposite the largest angle is the longest, and the side opposite ∠Q is PR. So PR is the longest side.
In simple words: The biggest angle (80° at Q) faces the longest side PR.

Teacher's Note:
1. Find the third angle first with the angle sum.
2. Larger angle faces the larger side.

Examination Note: Write ∠Q = 80° and name the side opposite to it.



Question 9. AD is a median of the triangle ABC. Is it true that AB + BC + CA > 2AD? Give reason for your answer.
Answer:
Yes. In ΔABD, AB + BD > AD ...(i)
In ΔACD, AC + CD > AD ...(ii)
Adding (i) and (ii): AB + AC + (BD + CD) > 2AD. Since BD + CD = BC, AB + BC + CA > 2AD.
In simple words: Apply the triangle inequality to the two small triangles and add.

Teacher's Note:
1. BD + CD = BC because D lies on BC.
2. The same idea works for any point on BC.

Examination Note: Show both inequalities and the addition step.



Question 10. M is a point on side BC of a triangle ABC such that AM is the bisector of ∠BAC. Is it true to say that the perimeter of the triangle is greater than 2AM? Give reason for your answer.
Answer:
Yes. In ΔABM, AB + BM > AM ...(i)
In ΔACM, AC + CM > AM ...(ii)
Adding: AB + AC + (BM + MC) > 2AM, so AB + BC + CA > 2AM. The perimeter is greater than 2AM.
In simple words: The bisector is also a segment from A to a point of BC, so the same inequality works.

Teacher's Note:
1. The angle bisector property is not needed here.
2. Add the two triangle inequalities.

Examination Note: Note that BM + MC = BC while writing the final line.



Question 11. Is it possible to construct a triangle with lengths of its sides as 9 cm, 7 cm and 17 cm? Give reason for your answer.
Answer:
No. 9 + 7 = 16, which is less than 17.
The sum of two sides of a triangle must be greater than the third side, so such a triangle cannot be constructed.
In simple words: The two shorter sides cannot reach across the longest side.

Teacher's Note:
1. Compare the sum of the two smaller sides with the largest side.
2. 16 < 17, so it fails.

Examination Note: State the numerical comparison 9 + 7 = 16 < 17.



Question 12. Is it possible to construct a triangle with lengths of its sides as 8 cm, 7 cm and 4 cm? Give reason for your answer.
Answer:
Yes. 7 + 4 = 11 > 8, 8 + 4 = 12 > 7 and 8 + 7 = 15 > 4.
Every pair of sides has a sum greater than the third, so the triangle exists.
In simple words: All three inequalities hold, so a triangle can be drawn.

Teacher's Note:
1. It is enough to check that the two smaller sides add up to more than the largest side: 4 + 7 > 8.
2. Then the other two checks are automatic.

Examination Note: Show at least the check with the largest side; writing all three is safer.



Short Answer Questions

Question 1. ABC is an isosceles triangle with AB = AC and BD and CE are its two medians. Show that BD = CE.
Answer:
D is the mid-point of AC and E is the mid-point of AB, so AD = ½AC and AE = ½AB. Since AB = AC, AE = AD.
In ΔABD and ΔACE: AB = AC (given), ∠A = ∠A (common), AD = AE.
So ΔABD ≅ ΔACE (SAS), and BD = CE (CPCT).
In simple words: Halves of equal sides are equal, and the two triangles share the angle at A.

Teacher's Note:
1. Medians join a vertex to the mid-point of the opposite side.
2. The shared angle ∠A is included between the pairs of equal sides, so SAS applies.

Examination Note: Write 'common' for ∠A and mention why AD = AE before using SAS.



Question 2. In the figure, D and E are points on side BC of a ΔABC such that BD = CE and AD = AE. Show that ΔABD ≅ ΔACE.
ABCDE
Answer:
AD = AE, so ∠ADE = ∠AED (angles opposite equal sides) ...(i)
∠ADB = 180° − ∠ADE and ∠AEC = 180° − ∠AED (linear pairs). By (i), ∠ADB = ∠AEC.
In ΔABD and ΔACE: BD = CE (given), ∠ADB = ∠AEC, AD = AE (given). So ΔABD ≅ ΔACE (SAS).
In simple words: The equal angles at D and E come from the linear pairs with the equal base angles of ΔADE.

Teacher's Note:
1. Linear pair angles add up to 180°.
2. The angle ∠ADB lies between AD and BD, and ∠AEC between AE and CE, so the angle is included.

Examination Note: Do not skip the step ∠ADB = ∠AEC; it is the key step for SAS.



Question 3. ΔCDE is an equilateral triangle formed on a side CD of a square ABCD. Show that ΔADE ≅ ΔBCE.
ABCDE
Answer:
In ΔADE and ΔBCE: DE = CE (sides of the equilateral triangle), AD = BC (sides of the square).
∠ADE = ∠ADC + ∠CDE = 90° + 60° = 150°, and ∠BCE = ∠BCD + ∠DCE = 90° + 60° = 150°. So ∠ADE = ∠BCE.
Hence ΔADE ≅ ΔBCE (SAS).
In simple words: Both included angles are 90° + 60° = 150°, so the triangles match.

Teacher's Note:
1. Angle of a square is 90° and of an equilateral triangle is 60°.
2. The angle ∠ADE is between AD and DE; ∠BCE is between BC and CE.

Examination Note: Show the addition 90° + 60° = 150° for both angles; do not just write ∠ADE = ∠BCE.



Question 4. In the figure, BA ⊥ AC, DE ⊥ DF such that BA = DE and BF = EC. Show that ΔABC ≅ ΔDEF.
BACFED
Answer:
BF = EC. Adding CF to both sides: BF + FC = EC + CF, so BC = EF ...(i)
In ΔABC and ΔDEF: ∠A = ∠D = 90°, hypotenuse BC = EF (from (i)), and side BA = DE (given).
So ΔABC ≅ ΔDEF (RHS).
In simple words: Adding the common part CF makes the hypotenuses BC and EF equal, and RHS finishes the proof.

Teacher's Note:
1. RHS: right angle, hypotenuse and one side.
2. BC and EF are the hypotenuses because they are opposite the right angles.

Examination Note: Note that RHS needs the hypotenuse, so first prove BC = EF.



Question 5. Q is a point on the side SR of a ΔPSR such that PQ = PR. Prove that PS > PQ.
Answer:
In ΔPQR, PQ = PR, so ∠PRQ = ∠PQR, that is ∠R = ∠PQR ...(i)
∠PQR is an exterior angle of ΔPQS, so ∠PQR > ∠S ...(ii)
From (i) and (ii), ∠R > ∠S in ΔPSR. The side opposite the larger angle is longer: PS > PR.
Since PR = PQ, PS > PQ.
In simple words: Use the isosceles triangle PQR, the exterior angle at Q and the rule 'larger angle, larger side'.

Teacher's Note:
1. The exterior angle ∠PQR is greater than the interior opposite angle ∠S.
2. PS is opposite ∠R and PR is opposite ∠S.

Examination Note: Write the chain ∠R = ∠PQR > ∠S and then convert it into sides.



Question 6. S is any point on side QR of a ΔPQR. Show that PQ + QR + RP > 2PS.
Answer:
In ΔPQS, PQ + QS > PS ...(i)
In ΔPRS, SR + RP > PS ...(ii)
Adding: PQ + (QS + SR) + RP > 2PS. Since QS + SR = QR, PQ + QR + RP > 2PS.
In simple words: Add the triangle inequalities of the two triangles that share PS.

Teacher's Note:
1. QS + SR = QR as S is on QR.
2. This is the same idea as for a median.

Examination Note: Show both inequalities and the addition.



Question 7. D is any point on side AC of a ΔABC with AB = AC. Show that CD < BD.
Answer:
AB = AC, so ∠ABC = ∠ACB ...(i)
D lies on AC, so ∠DBC < ∠ABC. With (i), ∠DBC < ∠ACB = ∠DCB.
In ΔDBC, ∠DCB > ∠DBC, so the side opposite ∠DCB, which is BD, is longer than the side opposite ∠DBC, which is CD. Hence CD < BD.
In simple words: The part ∠DBC is smaller than the whole ∠ABC, which equals ∠C.

Teacher's Note:
1. Compare the angles in ΔDBC: ∠DCB (= ∠C) is larger than ∠DBC.
2. Side opposite the larger angle is longer.

Examination Note: Write which sides are opposite the two angles you compare.



Question 8. In the figure, l ∥ m and M is the mid-point of a line segment AB. Show that M is also the mid-point of any line segment CD, having its end points on l and m, respectively.
ABMCDlm
Answer:
l ∥ m, so ∠BAC = ∠ABD (alternate interior angles).
∠AMC = ∠BMD (vertically opposite angles). AM = BM (M is the mid-point of AB).
So ΔAMC ≅ ΔBMD (ASA) and MC = MD (CPCT). Hence M is the mid-point of CD.
In simple words: The parallel lines give equal alternate angles, and the crossing lines give vertically opposite angles.

Teacher's Note:
1. ASA: two angles and the included side AM = BM.
2. The same proof works for every segment through M.

Examination Note: Name the pairs of angles with their reasons (alternate, vertically opposite).



Question 9. Bisectors of the angles B and C of an isosceles triangle with AB = AC intersect each other at O. BO is produced to a point M. Prove that ∠MOC = ∠ABC.
Answer:
AB = AC, so ∠ABC = ∠ACB. Halving: ∠OBC = ∠OCB ...(i)
∠MOC is an exterior angle of ΔOBC, so ∠MOC = ∠OBC + ∠OCB = 2∠OBC (by (i)).
BO bisects ∠B, so 2∠OBC = ∠ABC. Hence ∠MOC = ∠ABC.
In simple words: The exterior angle at O equals the sum of the two base angles of ΔOBC, which is twice ∠OBC.

Teacher's Note:
1. Exterior angle = sum of the two opposite interior angles.
2. Twice a half-angle gives the whole angle.

Examination Note: Mention that OB bisects ∠B when you replace 2∠OBC by ∠ABC.



Question 10. Bisectors of the angles B and C of an isosceles ΔABC with AB = AC intersect each other at O. Show that the external angle adjacent to ∠ABC is equal to ∠BOC.
Answer:
Produce CB to D, so ∠DBA is the external angle adjacent to ∠ABC.
AB = AC gives ∠ABC = ∠ACB; halving, ∠OBC = ∠OCB ...(i)
In ΔBOC: ∠OBC + ∠OCB + ∠BOC = 180°, so 2∠OBC + ∠BOC = 180°, i.e. ∠ABC + ∠BOC = 180° ...(ii)
DBC is a straight line, so ∠ABC + ∠DBA = 180° ...(iii)
From (ii) and (iii), ∠DBA = ∠BOC.
In simple words: Both ∠BOC and ∠DBA make 180° with ∠ABC, so they are equal.

Teacher's Note:
1. Two angles that are supplements of the same angle are equal.
2. 2∠OBC = ∠ABC because OB bisects ∠B.

Examination Note: Draw the figure with CB produced and show both 180° equations.



Question 11. In the figure, AD is the bisector of ∠BAC. Prove that AB > BD.
ABCD
Answer:
AD bisects ∠BAC, so ∠BAD = ∠CAD ...(i)
∠ADB is an exterior angle of ΔADC, so ∠ADB > ∠CAD. By (i), ∠ADB > ∠BAD.
In ΔABD, the side opposite ∠ADB is AB and the side opposite ∠BAD is BD. So AB > BD.
In simple words: The exterior angle at D is larger than ∠CAD, which equals ∠BAD, so the side AB opposite it is longer.

Teacher's Note:
1. This is the same argument as MCQ 6.
2. Always name the exterior angle and the triangle it belongs to.

Examination Note: Show the exterior-angle step in ΔADC explicitly.



Long Answer Questions

Question 1. Find all the angles of an equilateral triangle.
Answer:
Let ABC be equilateral with AB = BC = CA.
AB = AC gives ∠C = ∠B. BC = BA gives ∠A = ∠C. So ∠A = ∠B = ∠C = x.
By the angle sum property, x + x + x = 180°, so 3x = 180° and x = 60°.
Each angle of an equilateral triangle is 60°.
In simple words: All sides equal means all angles equal, and three equal angles share 180°.

Teacher's Note:
1. Equal sides have equal opposite angles.
2. So an equilateral triangle is also equiangular.

Examination Note: Show the three equal angles first and then the angle sum equation.



Question 2. The image of an object placed at a point A before a plane mirror LM is seen at the point B by an observer at D as shown in the figure. Prove that the image is as far behind the mirror as the object is in front of the mirror. [Hint: CN is normal to the mirror. Also, angle of incidence = angle of reflection]
LMBACDNOir
Answer:
Let AB meet the mirror at O, with AB ⊥ LM (the image lies on the perpendicular from the object). CN is the normal at C, so CN ⊥ LM.
AB ∥ CN (both are perpendicular to LM). Hence ∠A = ∠i (alternate angles, transversal AC) ...(i)
∠B = ∠r (corresponding angles, transversal BD) ...(ii)
Angle of incidence = angle of reflection: ∠i = ∠r ...(iii). From (i), (ii), (iii), ∠A = ∠B.
In ΔCOA and ΔCOB: ∠A = ∠B, ∠COA = ∠COB = 90°, CO = CO (common).
So ΔCOA ≅ ΔCOB (AAS) and OA = OB (CPCT). The image is as far behind the mirror as the object is in front.
In simple words: The congruence of the two right triangles shows that the object and the image are at equal distances from the mirror.

Teacher's Note:
1. The reflected ray appears to come from B, which is where the backward extension of DC meets the perpendicular AO.
2. Normal means perpendicular to the mirror at the point of incidence.

Examination Note: Mark the angles i and r on the figure, give a reason for every equality and finish with AAS.



Question 3. ABC is an isosceles triangle with AB = AC and D is a point on BC such that AD ⊥ BC (see figure). To prove that ∠BAD = ∠CAD, a student proceeded as follows: In ΔABD and ΔACD, AB = AC (given), ∠B = ∠C (because AB = AC) and ∠ADB = ∠ADC. Therefore ΔABD ≅ ΔACD (AAS). So ∠BAD = ∠CAD (CPCT). What is the defect in the above arguments? [Hint: Recall how ∠B = ∠C is proved when AB = AC.]
ABCD
Answer:
The theorem 'angles opposite equal sides are equal' (∠B = ∠C when AB = AC) is itself proved by drawing the bisector of ∠A, meeting BC at D, and showing ΔABD ≅ ΔACD by SAS, which gives ∠B = ∠C.
In that proof the equality ∠BAD = ∠CAD is the starting point. The student uses ∠B = ∠C to prove ∠BAD = ∠CAD. This is circular reasoning: the result to be proved is already used in proving the fact that was assumed.
Correct proof. In right-angled triangles ABD and ACD: ∠ADB = ∠ADC = 90°, hypotenuse AB = hypotenuse AC (given) and AD = AD (common). So ΔABD ≅ ΔACD (RHS), and ∠BAD = ∠CAD (CPCT).
In simple words: Using ∠B = ∠C to prove ∠BAD = ∠CAD goes round in a circle; the RHS proof avoids this.

Teacher's Note:
1. A proof must not use a fact whose own proof depends on the result you are proving.
2. RHS needs only the right angle, the equal hypotenuses and the common side.

Examination Note: Name the defect as 'circular argument' and give the corrected RHS proof, which carries the marks.



Question 4. P is a point on the bisector of ∠ABC. If the line through P, parallel to BA meets BC at Q, prove that ΔBPQ is an isosceles triangle.
Answer:
BP bisects ∠ABC, so ∠ABP = ∠PBQ. Call each angle x.
PQ ∥ BA with transversal BP: ∠BPQ = ∠ABP = x (alternate interior angles).
In ΔBPQ, ∠PBQ = ∠BPQ = x, so the sides opposite them are equal: QP = QB.
Hence ΔBPQ is isosceles with QB = QP.
In simple words: The parallel line makes the alternate angle equal to the bisected half-angle, so two angles of ΔBPQ are equal.

Teacher's Note:
1. Alternate angles between parallel lines are equal.
2. Equal angles give equal opposite sides.

Examination Note: Say clearly which two angles are equal and which sides are opposite to them.



Question 5. ABCD is a quadrilateral in which AB = BC and AD = CD. Show that BD bisects both the angles ABC and ADC.
Answer:
In ΔABD and ΔCBD: AB = CB (given), AD = CD (given) and BD = BD (common).
So ΔABD ≅ ΔCBD (SSS).
By CPCT, ∠ABD = ∠CBD and ∠ADB = ∠CDB. Hence BD bisects ∠ABC and ∠ADC.
In simple words: Two triangles on the diagonal BD have all three sides equal, so their angles at B and at D are equal.

Teacher's Note:
1. SSS is the quickest route here.
2. The diagonal BD is the common side.

Examination Note: Write the congruence with the three pairs of sides and then use CPCT for both angles.



Question 6. ABC is a right triangle with AB = AC. Bisector of ∠A meets BC at D. Prove that BC = 2AD.
Answer:
The right angle is at A. AB = AC gives ∠B = ∠C, and 90° + 2∠B = 180°, so ∠B = ∠C = 45°.
AD bisects ∠A, so ∠BAD = ∠CAD = 45°.
In ΔABD, ∠BAD = ∠ABD = 45°, so BD = AD. In ΔACD, ∠CAD = ∠ACD = 45°, so CD = AD.
BC = BD + DC = AD + AD = 2AD.
In simple words: The bisector splits the right angle into two 45° angles, which makes both small triangles isosceles with side AD.

Teacher's Note:
1. Equal angles give equal opposite sides.
2. D is therefore the mid-point of the hypotenuse, and AD is half of it.

Examination Note: Show that all four angles at B, C and at A (each half) are 45° before stating BD = AD = DC.



Question 7. O is a point in the interior of a square ABCD such that ΔOAB is an equilateral triangle. Show that ΔOCD is an isosceles triangle.
Answer:
Join OC and OD. ΔOAB is equilateral, so ∠OAB = ∠OBA = 60° and OA = OB.
∠DAB = ∠CBA = 90°, so ∠DAO = 90° − 60° = 30° and ∠CBO = 90° − 60° = 30°.
In ΔAOD and ΔBOC: OA = OB, ∠DAO = ∠CBO = 30° and AD = BC (sides of the square). So ΔAOD ≅ ΔBOC (SAS).
Hence OD = OC (CPCT), so ΔOCD is isosceles.
In simple words: The two small triangles on the sides AD and BC are congruent, so the segments OD and OC are equal.

Teacher's Note:
1. Subtract the 60° of the equilateral triangle from the 90° of the square.
2. Equal sides OD = OC make ΔOCD isosceles.

Examination Note: Give the reason for each angle: 90° of the square and 60° of the equilateral triangle.



Question 8. ΔABC and ΔDBC are two triangles on the same base BC such that A and D lie on the opposite sides of BC, AB = AC and DB = DC. Show that AD is the perpendicular bisector of BC.
Answer:
Let AD meet BC at O.
In ΔABD and ΔACD: AB = AC, DB = DC and AD = AD. So ΔABD ≅ ΔACD (SSS), and ∠BAD = ∠CAD, that is ∠BAO = ∠CAO.
In ΔAOB and ΔAOC: AB = AC, ∠BAO = ∠CAO and AO = AO. So ΔAOB ≅ ΔAOC (SAS). Hence BO = OC and ∠AOB = ∠AOC.
∠AOB + ∠AOC = 180° (linear pair), so each is 90°.
BO = OC and AO ⊥ BC, so AD is the perpendicular bisector of BC.
In simple words: Two congruences in a row: the first gives the equal angles at A, the second gives equal halves of BC and a right angle at O.

Teacher's Note:
1. Both A and D are equidistant from B and C, so both lie on the perpendicular bisector.
2. The common side AD is used twice.

Examination Note: Define the point O at the start and use it in the second congruence.



Question 9. ABC is an isosceles triangle in which AC = BC. AD and BE are respectively two altitudes to sides BC and AC. Prove that AE = BD.
Answer:
AC = BC, so ∠CAB = ∠CBA, that is ∠EAB = ∠DBA ...(i)
In ΔAEB and ΔBDA: ∠AEB = ∠BDA = 90°, ∠EAB = ∠DBA (by (i)) and AB = AB (common).
So ΔAEB ≅ ΔBDA (AAS) and AE = BD (CPCT).
In simple words: The two altitudes form right triangles on the common base AB which have equal base angles.

Teacher's Note:
1. Equal sides AC and BC make the angles opposite to them equal: ∠B and ∠A.
2. Altitudes give the right angles.

Examination Note: Mention that the base angles of the isosceles triangle are at A and B, because the equal sides meet at C.



Question 10. Prove that the sum of any two sides of a triangle is greater than twice the median with respect to the third side.
Answer:
Let AD be the median to BC in ΔABC. Produce AD to E so that DE = AD and join CE.
In ΔABD and ΔECD: AD = ED (construction), BD = CD (D is the mid-point) and ∠ADB = ∠EDC (vertically opposite angles). So ΔABD ≅ ΔECD (SAS) and AB = CE.
In ΔAEC, AC + CE > AE (triangle inequality). Substituting CE = AB and AE = 2AD, AB + AC > 2AD.
In simple words: Doubling the median creates a triangle ACE whose sides are AC, AB and 2AD.

Teacher's Note:
1. This is a standard construction: produce the median to double its length.
2. The same works for the other two sides and medians.

Examination Note: State the construction clearly and finish with the triangle inequality in ΔAEC.



Question 11. Show that in a quadrilateral ABCD, AB + BC + CD + DA < 2(BD + AC).
Answer:
Join the diagonals AC and BD, meeting at O.
In the four triangles: OA + OB > AB, OB + OC > BC, OC + OD > CD, OD + OA > DA.
Adding, 2(OA + OB + OC + OD) > AB + BC + CD + DA.
OA + OC = AC and OB + OD = BD, so 2(AC + BD) > AB + BC + CD + DA. Hence AB + BC + CD + DA < 2(AC + BD).
In simple words: Apply the triangle inequality in the four triangles formed by the diagonals and add.

Teacher's Note:
1. The diagonals of a convex quadrilateral meet at an interior point O.
2. Each of OA, OB, OC, OD appears twice in the sum.

Examination Note: Show the four inequalities and the grouping OA + OC = AC, OB + OD = BD.



Question 12. Show that in a quadrilateral ABCD, AB + BC + CD + DA > AC + BD.
Answer:
Join AC and BD.
In ΔABC: AB + BC > AC ...(i). In ΔBCD: BC + CD > BD ...(ii).
In ΔCDA: CD + DA > AC ...(iii). In ΔDAB: DA + AB > BD ...(iv).
Adding (i) to (iv): 2(AB + BC + CD + DA) > 2(AC + BD). Hence AB + BC + CD + DA > AC + BD.
In simple words: Each side of the quadrilateral appears in two of the triangle inequalities, so the sum doubles.

Teacher's Note:
1. Compare with the previous question: the perimeter is between (AC + BD) and 2(AC + BD).
2. Use the triangles on the diagonals.

Examination Note: Write all four inequalities and then divide by 2.



Question 13. In a triangle ABC, D is the mid-point of side AC such that BD = ½AC. Show that ∠ABC is a right angle.
Answer:
D is the mid-point of AC, so AD = DC = ½AC. Given BD = ½AC, so AD = DC = BD.
In ΔDAB, AD = BD, so ∠ABD = ∠BAD ...(i)
In ΔDBC, BD = DC, so ∠CBD = ∠BCD ...(ii)
Angle sum of ΔABC: ∠ABC + ∠BAC + ∠ACB = 180°. Using (i) and (ii): ∠ABC + ∠ABD + ∠CBD = 180°, that is 2∠ABC = 180°.
Hence ∠ABC = 90°.
In simple words: D is at the same distance from A, B and C, so the angle at B is the angle in a semicircle, which is 90°.

Teacher's Note:
1. ∠ABD + ∠CBD together make ∠ABC.
2. This is the converse of the property that the mid-point of the hypotenuse is equidistant from all vertices.

Examination Note: Show the three equal lengths AD = DC = BD first; everything else follows.



Question 14. In a right triangle, prove that the line-segment joining the mid-point of the hypotenuse to the opposite vertex is half the hypotenuse.
Answer:
Let ΔABC be right-angled at B and D the mid-point of AC. Produce BD to E so that DE = BD and join EC.
In ΔADB and ΔCDE: AD = DC, BD = DE and ∠ADB = ∠CDE (vertically opposite). So ΔADB ≅ ΔCDE (SAS), hence AB = EC and ∠BAD = ∠DCE.
∠BAD and ∠DCE are alternate angles, so EC ∥ AB. Then ∠ABC + ∠BCE = 180°, so ∠BCE = 90°.
In ΔABC and ΔECB: AB = EC, BC = CB and ∠ABC = ∠ECB = 90°. So ΔABC ≅ ΔECB (SAS) and AC = EB.
So BD = ½BE = ½AC. BD = ½AC.
In simple words: Doubling BD forms a rectangle ABEC whose diagonals AC and BE are equal and bisect each other.

Teacher's Note:
1. The construction creates two pairs of congruent triangles.
2. Alternate angles that are equal prove the lines are parallel.

Examination Note: Give the construction (produce BD to E with DE = BD) as the first line of the proof.



Question 15. Two lines l and m intersect at the point O and P is a point on a line n passing through the point O such that P is equidistant from l and m. Prove that n is the bisector of the angle formed by l and m.
Answer:
Draw PQ ⊥ l and PR ⊥ m. Equidistant means PQ = PR.
In right triangles OQP and ORP: ∠PQO = ∠PRO = 90°, OP = OP (common hypotenuse) and PQ = PR.
So ΔOQP ≅ ΔORP (RHS) and ∠POQ = ∠POR (CPCT).
Hence line n bisects the angle between l and m.
In simple words: Distance from a point to a line is the perpendicular length, so RHS applies to the two right triangles.

Teacher's Note:
1. The distances PQ and PR are measured along perpendiculars.
2. A point equidistant from two intersecting lines lies on the angle bisector.

Examination Note: Say explicitly that the distance is the perpendicular distance when you draw PQ and PR.



Question 16. Line segment joining the mid-points M and N of parallel sides AB and DC, respectively of a trapezium ABCD is perpendicular to both the sides AB and DC. Prove that AD = BC.
Answer:
Join AN and BN. M is the mid-point of AB, so AM = MB.
In ΔAMN and ΔBMN: AM = BM, ∠AMN = ∠BMN = 90° and MN = MN. So ΔAMN ≅ ΔBMN (SAS), hence AN = BN and ∠ANM = ∠BNM.
Since MN ⊥ DC, ∠AND = 90° − ∠ANM and ∠BNC = 90° − ∠BNM. So ∠AND = ∠BNC.
In ΔADN and ΔBCN: AN = BN, ∠AND = ∠BNC and DN = NC (N is the mid-point of DC). So ΔADN ≅ ΔBCN (SAS).
Hence AD = BC (CPCT).
In simple words: MN is the axis of symmetry: the first congruence gives AN = BN, and the second gives AD = BC.

Teacher's Note:
1. The trapezium is isosceles because it is symmetric about MN.
2. Two SAS congruences are used one after the other.

Examination Note: Join AN and BN in the figure first; it is the key construction.



Question 17. ABCD is a quadrilateral such that diagonal AC bisects the angles A and C. Prove that AB = AD and CB = CD.
Answer:
In ΔABC and ΔADC: ∠BAC = ∠DAC (AC bisects ∠A), AC = AC (common) and ∠BCA = ∠DCA (AC bisects ∠C).
So ΔABC ≅ ΔADC (ASA).
By CPCT, AB = AD and CB = CD.
In simple words: The bisecting diagonal gives two equal angle pairs and a common side, which is ASA.

Teacher's Note:
1. AC is common to both triangles and lies between the two equal angles.
2. CPCT gives both pairs of sides in one step.

Examination Note: Write the three equalities in order angle, side, angle to make ASA obvious.



Question 18. ABC is a right triangle such that AB = AC and bisector of angle C intersects the side AB at D. Prove that AC + AD = BC.
Answer:
The right angle is at A. AB = AC, so ∠B = ∠C = 45°.
Draw DE ⊥ BC. In ΔDAC and ΔDEC: ∠DAC = ∠DEC = 90°, ∠ACD = ∠ECD (CD bisects ∠C) and DC = DC. So ΔDAC ≅ ΔDEC (AAS), hence DA = DE and AC = EC ...(i)
In ΔBED, ∠B = 45° and ∠BED = 90°, so ∠BDE = 45° = ∠B. Therefore BE = DE = DA.
BC = CE + EB = AC + AD. Hence AC + AD = BC.
In simple words: The perpendicular DE turns the problem into two congruent triangles and an isosceles right triangle.

Teacher's Note:
1. Points on an angle bisector are at equal distances from the arms: DA = DE.
2. ΔBED is a 45°−45°−90° triangle, so BE = DE.

Examination Note: Draw the figure with DE ⊥ BC and label equal segments DA = DE = EB before writing the proof.



Question 19. AB and CD are the smallest and largest sides of a quadrilateral ABCD. Out of ∠B and ∠D decide which is greater.
Answer:
Join BD. In ΔABD, AD > AB (AB is the smallest side), so ∠ABD > ∠ADB ...(i)
In ΔBCD, CD > BC (CD is the largest side), so ∠CBD > ∠CDB ...(ii)
Adding (i) and (ii): ∠ABD + ∠CBD > ∠ADB + ∠CDB, that is ∠B > ∠D.
∠B is greater than ∠D.
In simple words: Compare the angles in the two triangles formed by diagonal BD, then add.

Teacher's Note:
1. In each triangle the larger side is opposite the larger angle.
2. Adding the two parts gives the full angles B and D.

Examination Note: Name the sides compared in each triangle (AD > AB and CD > BC).



Question 20. Prove that in a triangle, other than an equilateral triangle, angle opposite the longest side is greater than ⅔ of a right angle.
Answer:
Let BC be the longest side of ΔABC, which is not equilateral.
BC > AB gives ∠A > ∠C ...(i). BC > AC gives ∠A > ∠B ...(ii)
Adding: 2∠A > ∠B + ∠C. Add ∠A to both sides: 3∠A > ∠A + ∠B + ∠C = 180°.
So ∠A > 60° = ⅔ × 90°. The angle opposite the longest side is greater than ⅔ of a right angle.
In simple words: The largest angle of a triangle must exceed one third of 180°, that is 60°.

Teacher's Note:
1. If the triangle were equilateral, each angle would be exactly 60°; the condition 'not equilateral' makes the inequality strict.
2. ⅔ of 90° = 60°.

Examination Note: Convert ⅔ of a right angle into 60° at the end.



Question 21. ABCD is a quadrilateral such that AB = AD and CB = CD. Prove that AC is the perpendicular bisector of BD.
Answer:
Join AC and BD, meeting at O.
In ΔABC and ΔADC: AB = AD, CB = CD and AC = AC. So ΔABC ≅ ΔADC (SSS) and ∠BAC = ∠DAC, that is ∠BAO = ∠DAO.
In ΔAOB and ΔAOD: AB = AD, ∠BAO = ∠DAO and AO = AO. So ΔAOB ≅ ΔAOD (SAS), hence BO = DO and ∠AOB = ∠AOD.
∠AOB + ∠AOD = 180° (linear pair), so each is 90°.
BO = DO and AC ⊥ BD: AC is the perpendicular bisector of BD.
In simple words: This is the kite property: the axis of symmetry AC cuts the other diagonal at right angles into two equal parts.

Teacher's Note:
1. The quadrilateral is a kite, with two pairs of adjacent equal sides.
2. Two congruences are needed, as in Question 8.

Examination Note: Define O as the point of intersection first, and then use it in the second congruence.
