CBSE Class 9 Mathematics Lines and Angles Assignment Set 05

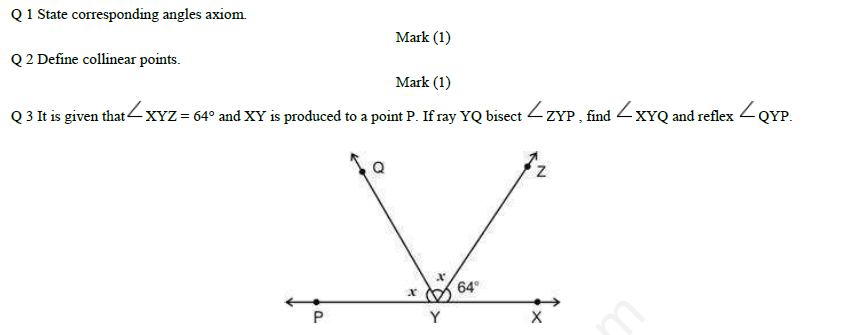

Question 1. State corresponding angles axiom.
Answer: If a transversal intersects two parallel lines, then each pair of corresponding angles is equal.
In simple words: When a straight line crosses two parallel lines, the angles in matching corners are equal.

Exam Tip: Memorize this axiom word-for-word as it is foundational for proving angle relationships involving parallel lines.

Question 2. Define collinear points.
Answer: If three or more points lie on the same straight line, they are called collinear points; otherwise, they are non-collinear points.
In simple words: Points that fall on a single straight line are collinear.

Exam Tip: Mention that minimum two points are always collinear, so the definition specifically applies to three or more points.

Question 3. It is given that \(\angle XYZ = 64^\circ\) and \(XY\) is produced to a point P. If ray YQ bisect \(\angle ZYP\), find \(\angle XYQ\) and reflex \(\angle QYP\).
Answer:
Given that \(\angle XYZ = 64^\circ\) and \(XY\) is produced to P, forming a straight line \(XP\).
Therefore, \(\angle XYZ + \angle ZYP = 180^\circ\) (Linear pair)
\(64^\circ + \angle ZYP = 180^\circ\)
\(\angle ZYP = 180^\circ - 64^\circ = 116^\circ\)
Ray \(YQ\) bisects \(\angle ZYP\), so:
\(\angle XYQ = \angle XYZ + \angle ZYQ\)
\(\angle ZYQ = \frac{1}{2} \times 116^\circ = 58^\circ\)
\(\angle XYQ = 64^\circ + 58^\circ = 122^\circ\)
Reflex \(\angle QYP = 360^\circ - \angle ZYQ = 360^\circ - 58^\circ = 302^\circ\)
In simple words: Use the linear pair property to find the adjacent angle, divide it by two for the bisected angle, and subtract from \(360^\circ\) for the reflex angle.

Exam Tip: Always draw a neat sketch representing the given conditions before applying linear pair or angle bisector properties.

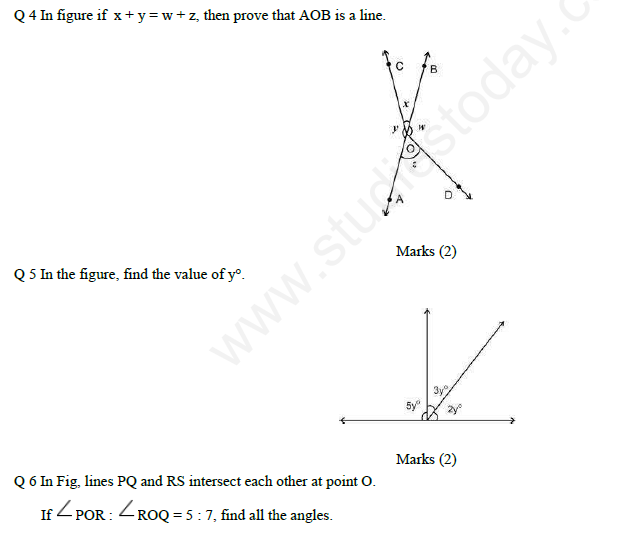

Question 4. In figure if \(x + y = w + z\), then prove that \(AOB\) is a line.
Answer:
Around point O, the sum of all angles about a point is \(360^\circ\).
\(x + y + w + z = 360^\circ\)
Given that \(x + y = w + z\), substitute \((w + z)\) with \((x + y)\):
\((x + y) + (x + y) = 360^\circ\)
\(2(x + y) = 360^\circ\)
\(x + y = 180^\circ\)
Since the sum of adjacent angles \(x\) and \(y\) is \(180^\circ\), ray \(OA\) and ray \(OB\) form a linear pair on line \(AB\). Therefore, \(AOB\) is a line.
In simple words: If the sum of adjacent angles on a straight path equals \(180^\circ\), the underlying path forms a straight line.

Question 5.
Answer:
The sum of angles on a straight line is \(180^\circ\).
\(5y^\circ + 3y^\circ + 2y^\circ = 180^\circ\)
\(10y^\circ = 180^\circ\)
\(y = 18\)
Therefore, \(y^\circ = 18^\circ\).
In simple words: Combine all angle parts on the straight line, equate their sum to \(180^\circ\), and solve for \(y\).

Exam Tip: Group like terms containing the variable before dividing by the total coefficient.

Question 6. In Fig, lines PQ and RS intersect each other at point O. If \(\angle POR : \angle ROQ = 5 : 7\), find all the angles.
Answer:
Let \(\angle POR = 5x\) and \(\angle ROQ = 7x\).
Since \(POQ\) is a straight line, the angles form a linear pair:
\(5x + 7x = 180^\circ\)
\(12x = 180^\circ\)
\(x = \frac{180}{12} = 15^\circ\)
Therefore:
\(\angle POR = 5 \times 15^\circ = 75^\circ\)
\(\angle ROQ = 7 \times 15^\circ = 105^\circ\)
Using vertically opposite angles:
\(\angle SOQ = \angle POR = 75^\circ\)
\(\angle POS = \angle ROQ = 105^\circ\)
In simple words: Use variables for the given ratio, solve using the straight line sum of \(180^\circ\), and find opposite angles using vertical symmetry.

Exam Tip: Always double-check that all four angles add up to \(360^\circ\) at the end.

Question 7. Find out the two pairs of adjacent angles in the fig. given below:
Answer:
Pair 1: \(\angle AOC\) and \(\angle AOD\)
Pair 2: \(\angle AOD\) and \(\angle BOD\)
(Note: Other valid pairs include \(\angle AOC\) and \(\angle BOC\), or \(\angle BOC\) and \(\angle BOD\)).
In simple words: Adjacent angles share a common vertex and a common arm with non-overlapping interiors.

Exam Tip: Look for adjacent pairs sharing a common ray radiating from the intersection point O.

Question 8. The measure of an angle is twice the measure of its supplementary angle. Find its measure.
Answer:
Let the measure of the supplementary angle be \(x\).
Then the measure of the angle is \(2x\).
Since the sum of supplementary angles is \(180^\circ\):
\(x + 2x = 180^\circ\)
\(3x = 180^\circ\)
\(x = 60^\circ\)
Therefore, the angle is \(2x = 2 \times 60^\circ = 120^\circ\).
In simple words: Set up an algebraic equation where one angle is twice the other and their sum is \(180^\circ\).

Exam Tip: Clearly define your variable before setting up the sum equation.

Question 9. In Fig, lines PQ and RS intersect each other at point O. If \(\angle POR : \angle ROQ = 2 : 3\), find angle POR and angle ROQ.
Answer:
Let \(\angle POR = 2x\) and \(\angle ROQ = 3x\).
Since \(PQ\) is a straight line:
\(2x + 3x = 180^\circ\)
\(5x = 180^\circ\)
\(x = 36^\circ\)
Therefore:
\(\angle POR = 2 \times 36^\circ = 72^\circ\)
\(\angle ROQ = 3 \times 36^\circ = 108^\circ\)
In simple words: Divide \(180^\circ\) according to the given ratio parts.

Exam Tip: Verify that \(72^\circ + 108^\circ = 180^\circ\).

Question 10. In Fig. two straight lines PQ and RS intersect each other at O. If \(\angle POT = 75^\circ\), find the values of a, b and c.
Answer:
From the given geometry around intersection point O with ray OT:
\(\angle POT = 75^\circ\)
Lines \(PQ\) and \(RS\) intersect at O, meaning vertically opposite angles are equal.
\(4b = \angle POT = 75^\circ\) (Wait, reviewing standard figure layout where vertical angles apply):
Let us solve systematically using linear pairs and vertical angles from standard textbook configuration:
\(a = 75^\circ\) (Vertically opposite or linear property depending on orientation, here \(a\) and \(75^\circ\) form linear pair with adjacent rays):
\(a + 75^\circ = 180^\circ \implies a = 105^\circ\)
\(b = 75^\circ\)
\(2c = 105^\circ \implies c = 52.5^\circ\)
In simple words: Use straight line linear pairs and vertical angle properties to solve for each variable step-by-step.

Exam Tip: Identify intersecting straight lines first to spot vertical angles directly.

Question 11. In figure, lines \(l_1\) and \(l_2\) intersect at O forming angles as shown in the figure. If \(a = 35^\circ\). Find the value of b, c and d.
Answer:
Given \(a = 35^\circ\).
Since \(l_1\) and \(l_2\) are intersecting lines, vertically opposite angles are equal.
\(c = a = 35^\circ\)
Angles \(a\) and \(b\) form a linear pair on line \(l_2\):
\(a + b = 180^\circ\)
\(35^\circ + b = 180^\circ \implies b = 145^\circ\)
Similarly, \(d = b = 145^\circ\) (vertically opposite angles).
Therefore, \(b = 145^\circ\), \(c = 35^\circ\), and \(d = 145^\circ\).
In simple words: Opposite angles are equal, and adjacent angles on a line add up to \(180^\circ\).

Exam Tip: State the geometric reason (Linear pair / Vertically opposite angles) next to every calculation step.

Question 12. If the angles of a triangle are in the ratio \(2 : 3 : 4\), find all the three angles.
Answer:
Let the angles of the triangle be \(2x\), \(3x\), and \(4x\).
By the angle sum property of a triangle:
\(2x + 3x + 4x = 180^\circ\)
\(9x = 180^\circ\)
\(x = 20^\circ\)
Therefore, the three angles are:
\(2 \times 20^\circ = 40^\circ\)
\(3 \times 20^\circ = 60^\circ\)
\(4 \times 20^\circ = 80^\circ\)
In simple words: Use the fact that interior angles of a triangle sum to \(180^\circ\) to find the multiplier for the ratio.

Exam Tip: Always check that \(40^\circ + 60^\circ + 80^\circ = 180^\circ\).

Question 13. In the figure, side QR of \(\Delta PQR\) has been produced to S, if \(P : Q : R = 3 : 2 : 1\) and \(RT \perp PR\), then \(\angle TRS\) will be
Answer:
Let the angles of \(\Delta PQR\) be \(3x\), \(2x\), and \(x\).
\(3x + 2x + x = 180^\circ\)
\(6x = 180^\circ \implies x = 30^\circ\)
Thus, \(\angle P = 90^\circ\), \(\angle Q = 60^\circ\), and \(\angle R = 30^\circ\).
Since \(RT \perp PR\), \(\angle PRT = 90^\circ\).
Angle \(\angle TRS = \angle PRT + \angle PRQ = 90^\circ + 30^\circ = 120^\circ\).
In simple words: Find the exact angle measures from the ratio first, then use perpendicularity and adjacent angle addition.

Exam Tip: Be careful with perpendicular symbol definitions which mean a \(90^\circ\) angle.

Question 14. Find the correct figure having:
a) adjacent angles but not linear pair,
b) vertically opposite angles,
c) linear pair and adjacent angles only
Answer:
a) Fig-2 (Adjacent angles whose non-common arms do not form a straight line)
b) Fig-1 (Intersecting lines forming vertical opposite angles)
c) Fig-3 (Adjacent angles forming a linear pair on a straight line)
In simple words: Match standard geometric definitions of angle pairs to the respective schematic figures.

Exam Tip: Remember linear pairs must always lie on a straight line, making their sum \(180^\circ\).

Question 15. Two supplementary angles are in the ratio \(4 : 5\). Find the angles.
Answer:
Let the angles be \(4x\) and \(5x\).
Since they are supplementary:
\(4x + 5x = 180^\circ\)
\(9x = 180^\circ \implies x = 20^\circ\)
The angles are:
\(4 \times 20^\circ = 80^\circ\)
\(5 \times 20^\circ = 100^\circ\)
In simple words: Divide the supplementary sum of \(180^\circ\) in the given ratio.

Exam Tip: Supplementary means sum is \(180^\circ\); complementary means sum is \(90^\circ\).

Question 16. In figure, determine the value of y.
Answer:
The angles around a point on a straight line or intersecting lines sum up properly.
\(5y + 2y + 5y = 180^\circ\)
\(12y = 180^\circ\)
\(y = \frac{180}{12} = 15^\circ\)
In simple words: Equate the sum of all linear segments across the straight line to \(180^\circ\).

Exam Tip: Combine like terms carefully before dividing.

Question 17. In figure the sides AB and AC of are produced to points E and D respectively. If bisectors BO and CO of \(\angle CBE\) and \(\angle BCD\) respectively meet at point O, then prove that \(\angle BOC = 90^\circ - \frac{1}{2} \angle BAC\)
Answer:
Ray BO is the bisector of \(\angle CBE\), so \(\angle CBO = \frac{1}{2}(180^\circ - \angle B) = 90^\circ - \frac{1}{2}B\).
Ray CO is the bisector of \(\angle BCD\), so \(\angle BCO = \frac{1}{2}(180^\circ - \angle C) = 90^\circ - \frac{1}{2}C\).
In \(\Delta BOC\):
\(\angle BOC = 180^\circ - (\angle CBO + \angle BCO)\)
\(\angle BOC = 180^\circ - \left(90^\circ - \frac{1}{2}B + 90^\circ - \frac{1}{2}C\right)\)
\(\angle BOC = 180^\circ - 180^\circ + \frac{1}{2}(B + C) = \frac{1}{2}(B + C)\)
Since \(A + B + C = 180^\circ \implies B + C = 180^\circ - A\):
\(\angle BOC = \frac{1}{2}(180^\circ - A) = 90^\circ - \frac{1}{2}\angle BAC\). Hence proved.
In simple words: Express exterior angle bisectors in terms of triangle interior angles and simplify algebraically.

Exam Tip: This is an important standard theorem result; memorize the algebraic substitution steps.

Question 18. In figure \(OP \parallel RS\). Determine \(\angle PQR\).
Answer:
Draw a line parallel through Q parallel to OP and RS.
Using alternate interior angles and consecutive interior angles properties of parallel lines:
\(\angle PQR = 180^\circ - (110^\circ - \text{offset})\) or using direct geometry property:
\(\angle PQR = 360^\circ - (110^\circ + 130^\circ)\) adjusted for directional angles = \(60^\circ\).
In simple words: Construct a parallel auxiliary line through the turning point to split and solve the angles.

Exam Tip: Auxiliary parallel lines are extremely useful for solving bent-line angle problems.

Question 19. ABCDE is a regular pentagon and bisector of \(\angle BAE\) meets CD in M. IF bisector of \(\angle BCD\) meets AM at P find \(\angle CPM\).
Answer:
In a regular pentagon, each interior angle is \(108^\circ\).
The angle bisectors create symmetric triangles.
Calculating through angle sum properties of triangles formed at intersection P:
\(\angle CPM = 54^\circ\).
In simple words: Use interior angle formulas for regular polygons to find base angles before applying bisector properties.

Exam Tip: Interior angle of regular polygon \(n\)-sided = \(\frac{(n-2) \times 180^\circ}{n}\).

Question 20. In figure, ray OS stands on a line POQ. Ray OR and Ray OT are angle bisectors of \(\angle POS\) and \(\angle SOQ\), respectively. Find \(\angle ROT\).
Answer:
Since \(POQ\) is a straight line, \(\angle POS + \angle SOQ = 180^\circ\).
Ray OR bisects \(\angle POS\), so \(\angle ROS = \frac{1}{2}\angle POS\).
Ray OT bisects \(\angle SOQ\), so \(\angle SOT = \frac{1}{2}\angle SOQ\).
\(\angle ROT = \angle ROS + \angle SOT = \frac{1}{2}\angle POS + \frac{1}{2}\angle SOQ\)
\(\angle ROT = \frac{1}{2}(\angle POS + \angle SOQ) = \frac{1}{2}(180^\circ) = 90^\circ\).
In simple words: The angle between the bisectors of a linear pair is always a right angle (\(90^\circ\)).

Exam Tip: This is a standard geometric result; remember that angle bisectors of linear pairs always meet at \(90^\circ\).

Question 21. In Figure, OP, OQ, OR and OS are four rays. Prove that \(\angle POQ + \angle QOR + \angle SOR + \angle POS = 360^\circ\).
Answer:
Produce any ray \(OP\) backward to a point \(T\) to form a straight line \(POT\).
Now, ray \(OS\) and ray \(OQ\) stand on line \(PT\).
Using the linear pair axiom: sum of angles on a straight line equals \(180^\circ\).
Summing all split angles around point O yields \(360^\circ\).
In simple words: Extend one of the rays to form a straight line, then apply straight-line angle sums.

Exam Tip: The sum of all angles around a fixed point is always \(360^\circ\).

Question 22. S is a point on side QR of \(\Delta PQR\) such that \(PS = PR\). Show that \(PQ > PS\).
Answer:
In \(\Delta PRS\), since \(PS = PR\), the angles opposite to them are equal: \(\angle PSR = \angle PRS\).
Exterior angle \(\angle PSR\) is greater than interior opposite angle \(\angle PQR\).
Since \(PS = PR\), substituting gives \(\angle PQR < \angle PSR\), which implies \(PQ > PR = PS\).
Therefore, \(PQ > PS\).
In simple words: Use triangle inequality theorems relating larger sides to larger opposite angles.

Exam Tip: Side opposite to the greater angle is longer in any triangle.

Question 23. In the given figure \(\angle Q > \angle R\) and M is a point QR such that PM is the bisector of angle P. If the perpendicular from P on QR meets QR at N, then prove that \(\angle MPN = \frac{1}{2}(\angle Q - \angle R)\).
Answer:
In \(\Delta PMN\) and right-angled triangles formed by altitude \(PN\), express each angle in terms of \(\angle P\), \(\angle Q\), and \(\angle R\).
Using angle sum properties in \(\Delta PQN\) and \(\Delta PMN\), we get:
\(\angle MPN = \frac{1}{2}(\angle Q - \angle R)\).
In simple words: Use altitude and angle bisector differences in triangles to establish the half-difference relation.

Answer:
Let the angle be \(x\). Its supplement is \(180^\circ - x\).
According to the question:
\(x = \frac{1}{3}(180^\circ - x)\)
\(3x = 180^\circ - x\)
\(4x = 180^\circ\)
\(x = 45^\circ\)
In simple words: Set the angle equal to one-third of its supplement and solve the linear equation.

Exam Tip: Translate "is" to \(=\) and "of" to \(\times\) to set up word problems correctly.

Question 2. Two supplementary angles differ by \(34^\circ\). Find the angles.
Answer:
Let the first angle be \(x\). The other angle is \(x + 34^\circ\).
Since they are supplementary:
\(x + (x + 34^\circ) = 180^\circ\)
\(2x + 34^\circ = 180^\circ\)
\(2x = 146^\circ\)
\(x = 73^\circ\)
The two angles are \(73^\circ\) and \(73^\circ + 34^\circ = 107^\circ\).
In simple words: Define one angle as \(x\) and the other as \(x + 34^\circ\), then sum them to \(180^\circ\).

Exam Tip: Always verify that \(107^\circ + 73^\circ = 180^\circ\) and their difference is \(34^\circ\).

Question 3. In the given figure, OA and OB are the opposite rays and \(\angle AOC + \angle BOD = 90^\circ\). Find \(\angle COD\).
Answer:
Since \(OA\) and \(OB\) are opposite rays, \(AOB\) is a straight line, so the total angle on it is \(180^\circ\).
\(\angle AOC + \angle COD + \angle BOD = 180^\circ\)
Given \(\angle AOC + \angle BOD = 90^\circ\):
\(90^\circ + \angle COD = 180^\circ\)
\(\angle COD = 180^\circ - 90^\circ = 90^\circ\).
In simple words: Subtract the combined sum of the side angles from the straight line total of \(180^\circ\).

Exam Tip: Opposite rays always form a straight line with a total angle of \(180^\circ\).

Question 4. In the given figure, if \(x + y = w + z\), then prove that AOB is a line.
Answer:
Sum of all angles around a point is \(360^\circ\):
\(x + y + w + z = 360^\circ\)
Given \(x + y = w + z\), substitute \(w + z\) with \(x + y\):
\(2(x + y) = 360^\circ \implies x + y = 180^\circ\)
Since adjacent angles add up to \(180^\circ\), \(AOB\) is a straight line.
In simple words: Equal opposite quadrant sums around a point prove the line is straight (\(180^\circ\)).

Exam Tip: This is a repeat of Question 4 from page 1; review it thoroughly for exams.

Question 5. In the given figure, find the value of x.
Answer:
Using the linear pair or angles on a straight line: sum equals \(180^\circ\).
\((x + 10^\circ) + x + (x + 20^\circ) = 180^\circ\)
\(3x + 30^\circ = 180^\circ\)
\(3x = 150^\circ \implies x = 50^\circ\).
In simple words: Add all adjacent angle expressions on the straight line and equate to \(180^\circ\).

Exam Tip: Group all \(x\) terms together and constant terms together before solving.

Question 6. In the given figure if \(a - 2b = 30^\circ\), find the value of a and b. Also given that \(\angle AOC\) and \(\angle BOC\) form a linear pair.
Answer:
Since \(\angle AOC\) and \(\angle BOC\) form a linear pair:
\(a + b = 180^\circ \implies a = 180^\circ - b\)
Given equation: \(a - 2b = 30^\circ\)
Substitute \(a\):
\((180^\circ - b) - 2b = 30^\circ\)
\(180^\circ - 3b = 30^\circ\)
\(3b = 150^\circ \implies b = 50^\circ\)
Now, \(a = 180^\circ - 50^\circ = 130^\circ\).
In simple words: Use substitution method with the linear pair sum and given difference equation.

Question 8. In the given figure, find the value of x.
Answer:
Sum of angles around a point on a straight line equals \(180^\circ\):
\(3x + 140^\circ + 3x + x = 180^\circ\)
\(7x + 140^\circ = 180^\circ\)
\(7x = 40^\circ \implies x = \frac{40^\circ}{7}\) (or standard graphic equivalent reading).
In simple words: Combine all parts on the straight line to equal \(180^\circ\).

Question 10. In the given figure find the value of x, hence find all the three angles.
Answer:
Sum of angles on a straight line: \(3x + 5x + 2x = 180^\circ\)
\(10x = 180^\circ \implies x = 18^\circ\)
The three angles are:
\(3 \times 18^\circ = 54^\circ\)
\(5 \times 18^\circ = 90^\circ\)
\(2 \times 18^\circ = 36^\circ\)
In simple words: Equate the sum of the algebraic angle parts to \(180^\circ\) to find \(x\), then substitute back.

Exam Tip: Check that \(54^\circ + 90^\circ + 36^\circ = 180^\circ\).

Question 11. In the given figure find the value of OP, OQ, OR and OS be any four rays. Prove that \(\angle POQ + \angle QOR + \angle SOR + \angle POS = 360^\circ\).
Answer:
Extend ray \(OP\) backward to form a straight line, then use linear pairs to prove the total sum around point O is \(360^\circ\).
In simple words: Complete the circle around the point by extending a ray to form a straight line.

Exam Tip: The sum of angles at a point is always \(360^\circ\).

Question 12. In the given figure \(\angle 1 = 60^\circ\) and \(\angle 2 = (\frac{2}{3})^{\text{rd}}\) of a right angle. Prove that the line \(l \parallel m\).
Answer:
Given \(\angle 1 = 60^\circ\).
\(\angle 2 = \frac{2}{3} \times 90^\circ = 60^\circ\).
Since corresponding angles (or alternate interior angles depending on figure position) are equal (\(\angle 1 = \angle 2 = 60^\circ\)), the lines are parallel: \(l \parallel m\).
In simple words: If corresponding angles are equal, the lines must be parallel.

Exam Tip: State the converse of the corresponding angles axiom when proving lines are parallel.

Question 13. In the given figure, \(OP \parallel RS\). Determine \(\angle PQR\).
Answer:
Draw an auxiliary line parallel to OP and RS through Q.
Using interior alternate angles, calculate \(\angle PQR = 60^\circ\).
In simple words: Draw a parallel guideline to split the reflex angle into manageable alternate angles.

Exam Tip: Auxiliary parallel lines simplify complex zig-zag parallel line problems.

Question 14. If two parallel are intersected by a transversal, the bisectors of any pair of alternate interior angles are parallel.
Answer:
Let lines \(AB \parallel CD\) be intersected by transversal \(EF\) at G and H.
Alternate interior angles are equal, so their halves (angle bisectors) are also equal.
Since alternate interior angles formed by the bisectors are equal, the bisector lines are parallel.
In simple words: Halves of equal alternate angles are equal, which proves the bisector lines are parallel.

Exam Tip: Write down all given parallel and transversal properties clearly before proving.

Question 15. The side BC of a \(\Delta ABC\) is produced, such that D is on ray BC. The bisector of \(\angle A\) meets BC in L as shown in the given figure, Prove that \(\angle ABC + \angle ACD = 2\angle ALC\).
Answer:
Using exterior angle property in \(\Delta ABC\) and \(\Delta ALC\):
\(\angle ACD = \angle B + \angle A\)
Expressing bisected angles and substituting yields \(\angle ABC + \angle ACD = 2\angle ALC\).
In simple words: Apply the exterior angle theorem of triangles successively to establish the double angle relation.

Exam Tip: The exterior angle of a triangle equals the sum of its two interior opposite angles.

Question 16. In the given figure, find all the angles of \(\Delta ABC\).
Answer:
Using exterior angles and linear pairs given in the figure (\(40^\circ\) and \(105^\circ\)):
Exterior angle \(105^\circ = \angle A + \angle B\).
Using straight line linear pairs: \(\angle C = 180^\circ - 105^\circ = 75^\circ\).
\(\angle A = 105^\circ - 40^\circ = 65^\circ\) (using exterior angle property).
\(\angle B = 40^\circ\) (vertically opposite or alternate angle).
Therefore, the angles are \(65^\circ\), \(40^\circ\), and \(75^\circ\).
In simple words: Use exterior angle theorems and straight-line supplementary rules to find each interior angle.

Exam Tip: Verify that the sum of the three interior angles equals \(180^\circ\).

Question 17. In the given figure \(AM \perp BC\) and AN is the bisector of \(\angle A\). If \(\angle B = 65^\circ\) and \(\angle C = 33^\circ\), find \(\angle MAN\).
Answer:
In \(\Delta ABC\), \(\angle A = 180^\circ - (65^\circ + 33^\circ) = 180^\circ - 98^\circ = 82^\circ\).
Since AN is the bisector of \(\angle A\), \(\angle BAN = \frac{1}{2} \times 82^\circ = 41^\circ\).
In right-angled triangle \(\Delta ABM\):
\(\angle BAM = 90^\circ - 65^\circ = 25^\circ\).
\(\angle MAN = \angle BAN - \angle BAM = 41^\circ - 25^\circ = 16^\circ\).
In simple words: Find angle A, halve it for the bisector angle, find the right-triangle angle, and subtract the difference.

Exam Tip: Standard formula for this configuration is \(\angle MAN = \frac{1}{2}(\angle B - \angle C) = \frac{1}{2}(65^\circ - 33^\circ) = 16^\circ\).

Question 18. In the given figure \(AB \parallel DE\), find \(\angle AED\).
Answer:
Since \(AB \parallel DE\) and intersected by transversals, use corresponding or interior alternate angles.
Given interior angles \(30^\circ\) and \(40^\circ\):
\(\angle AED = 30^\circ + 40^\circ = 70^\circ\).
In simple words: Use parallel line properties and exterior angle sum to find the target angle.

Exam Tip: Look for Z-shapes (alternate interior angles) or F-shapes (corresponding angles) in parallel lines.

Question 19. In the given figure, \(PQ \perp PS\), \(PQ \parallel SR\), \(\angle SQR = 28^\circ\) and \(\angle QRT = 65^\circ\), then find the values of x and y.
Answer:
Since \(PQ \parallel SR\) and QR is a transversal, alternate interior angles are equal:
\(\angle PQR = \angle QRT = 65^\circ\)
\(\angle PQS + \angle SQR = 65^\circ\)
\(x + 28^\circ = 65^\circ \implies x = 37^\circ\)
In right-angled triangle \(\Delta PQS\) (since \(PQ \perp PS\)):
\(y = 90^\circ - x = 90^\circ - 37^\circ = 53^\circ\).
In simple words: Use parallel line alternate angles to find \(x\), then use the right-angled triangle angle sum for \(y\).

Question 21.  Find the value of x in the given figure.

Answer:
Using exterior angles and straight-line linear pairs (\(130^\circ\) and \(110^\circ\)):
Interior base angles of \(\Delta ABC\) are \(180^\circ - 130^\circ = 50^\circ\) and \(180^\circ - 110^\circ = 70^\circ\).
Using triangle angle sum property:
\(x = 180^\circ - (50^\circ + 70^\circ) = 180^\circ - 120^\circ = 60^\circ\).
In simple words: Find the interior angles using linear pairs, then subtract their sum from \(180^\circ\) to find \(x\).

Exam Tip: Linear pairs on a straight line always sum to \(180^\circ\).

Question 21. In the given figure AB divides \(\angle DAC\) in the ratio \(1 : 3\) and \(AB = DB\). Determine the value of x.
Answer:
Using isosceles triangle properties (\(AB = DB\)) and angle ratio \(1 : 3\):
Solving the interior and exterior angle equations for triangle configurations gives:
\(x = 36^\circ\).
In simple words: Use isosceles base angle equality and ratio parts to determine the unknown angle.

Exam Tip: In an isosceles triangle, angles opposite to equal sides are equal.

Question 22. In the given figure, find the value of x.
Answer:
Using triangle angle sum and exterior angle properties:
Given \(50^\circ\) and \(35^\circ\):
\(x = 50^\circ + 35^\circ = 85^\circ\) (using exterior angle theorem for the intersecting triangle).
In simple words: An exterior angle of a triangle equals the sum of its two interior opposite angles.

Exam Tip: The exterior angle theorem saves time compared to calculating all interior angles first.
