CBSE Class 8 Maths Mensuration HOTs

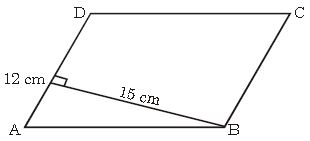

Question. In the adjoining figure, find the area of the parallelogram.

Answer : 180 cm²

Question. Find the area of the shaded portion

Answer : 231 cm²

Question. Find the area of the quadrilateral ABCD given in the figure
When AC = 15 cm, BP = 10 cm, DQ = 6 cm

Answer : 120 cm²

Question. In the figure find the area of the given trapezium

Answer : 320 cm²


Question. Find the area of the shaded portion

Answer : 126 cm²

Question. In the figure find the area of the parallelogram

Answer : 240 cm²

Question. Find the area of quadilateral.

Answer : 160 cm²

Question. In the adjoining figure find the area of the shaded portion.

Answer : 300 cm²

Question. What is the area of shaded ring if radius of two circles are 4 cm and 3 cm?

Answer : 22 cm²

Question. The windows of a room are of the shape in the figure. How much net is required to cover 2 such windows?

Answer : 71400 cm²

Question. Find the area of shaded region.

Answer : 198 cm²

Question. Radha wants to make a dress which is of the shape of trapezium. How much cloth is required to make the dress shown in the fig

Answer : 1000 cm²

Question. Find the area of shaded portion

Answer : 60 cm²

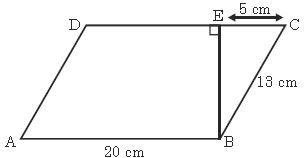

Question. Find the area of shaded portion when DE ⊥ AB

Answer : 250 cm²

Question. Find the area of shaded portion

Answer : 120 cm²

Question. Find the area of the figure if the upper portion is a semi circle

Answer : 217 cm²

Question. From the adjoining figure find the area of shaded portion

Answer : 164 cm²

Question. Find the area of the shaded portion if diameter of circle is 14 cm and ABCD is a square.

Answer : 56 cm²

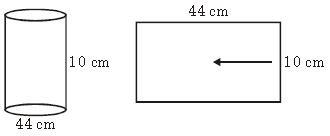

Question. A rectangular piece of paper 44 cm long and 10 cm broad is rolled along the length to form a cylinder. What is the radius of the base?

Answer : 7 cm

Question. Find the area of the triangle shaded in the figure. Where ABCD is a parallelogram.

Answer : 170 cm²

17. How many m³ of soil has to be excavated from a rectangular well 28 m deep and base dimensions 10m and 8 m. Also find the cost of plastering its vertical walls at the rate of ` 15/m².

18. A solid cubical box of fine wood costs ₹ 256 at the rate of ₹ 500/m3. Find its volume and length of each side.

19. Find the total surface area and volume of a cube whose length is 12 cm.

20. Find the volume of a cube whose surface area is 486 cm².

21. A tank, which is cuboidal in shape, has volume 6.4 m³. The length and breadth of the base are 2 m and 1.6 m respectively. Find the depth of the tank.

22. Find the area of four walls of a room having length, breadth and height as 8 m, 5 m and 3 m respectively.
Find the cost of white-washing the walls at the rate of ₹ 15/m².

23. A room is 6 m long, 4 m broad and 3 m high. Find the cost of laying tiles on its floor and four walls at the rate of ₹ 80/m2.

24. The length, breadth and height of a cuboid are in the ratio 5:3:2. If its volume is 35.937 m³, find its dimensions. Also find the total surface area of the cuboid.

25. Suppose the perimeter of one face of a cube is 24 cm. What is its volume?

26. A wooden box has inner dimensions l=6 m, b=8 m and h=9 m and it has uniform thickness of 10cm.
The lateral surface of the outer side has to be painted at the rate of ₹ 50/m². What is the cost of painting?

27. Each edge of a cube is increased by 20%. What is the percentage increase in the volume of the cube?

28. Suppose the length of a cube is increased by 10% and its breadth is decreased by 10%. Will the volume of the new cuboid be the same as that of the cube? What about the total surface areas? If they change, what would be the percentage change in both the cases?

29. The diameter of a cylindrical roller is 84 cm and its length is 120 cm. If it takes 500 revolutions to level a play ground, what is the cost of levelling at the rate of ₹1 per m²?

30. A well with 10 m diameter is dug 14 m deep. The soil thus taken out, is spread all around to a width of 5 m to form an embankment. Find the height of the embankment.

31. The difference between the outside and inside surfaces of a cylindrical metallic pipe 14 cm long is 44 cm². If the pipe is made of 99 cm³ of metal, find the outer and inner radii of the pipe.

SUMMARY

1. The perimeter of a closed plane figure is the total length of the line segments enclosing the figure.

2. The magnitude of a plane region is called its area.

3. The amount of space enclosed by the bounding surface or surfaces of a solid is called the volume of the solid.

4. Perimeter of a triangle is the sum of the length of its sides.

5. Perimeter of a rectangle = 2(l+b)

6. Perimeter of a square = 4×S

7. Perimeter of a regular polygon = number of sides ×length of its side.

8. Area of a rectangle = l×b

9. Area of a parallelogram = base × height

10. Area of a triangle = ½×b×h

11. Area of a trapezium = 1/2 (sum of parallel sides)×h

12. Area of a rhombus = 1/2 ×d₁×d₂, where d₁ and d₂ are diagonals.

13. Area of a square = S²

14. Area of a square = (diagonal)²/2

15. Diagonal of a square = √2 × side

16. Area of a regular polygon = 1/2 (perimeter of polygon)×(perpendicular distance from centre to any side)

17. Circumference of a circle = 2πr

18. Area of a circle = πr²

19. Area of a ring = π(R²–r²)

20. Lateral surface area of a cuboid =2(l+b)h

21. Total surface area of a cuboid = 2(lb+bh+lh)

22. Diagonal of a cuboid = √l² + b² + h²

23. Lateral surface area of a cube =4S²

24. Total surface area of a cube = 6S²

25. Diagonal of a cube = 3√a

26. Curved / lateral surface area of a cylinder = 2πrh

27. Total surface area of a cylinder = 2πr(h+r)

28. Volume of a cuboid = l×b×h

29. Volume of a cube =S³

30. Volume of a cylinder = πr²h

31. Volume of a hollow cylinder = πh(R²–r²)

ERROR ANALYSIS

1. Students are not able to differentiate whether the problem is concerning Volume or Surface Area.

2. If units are different they often forget to convert them and get a wrong answer.

3. Students face problem in interpreting the word problems.

ACTIVITY

Aim : To make an open box of the largest possible volume from a given sheet of paper.
Material needed : Chart paper, scissors.
Making an open box
Take a square sheet of chart paper of side 24 cm.
To make an open box, proceed as follows.

Step 1 : Cut out a square piece of any size from one corner of your sheet. Cut out a square piece of the same size from each of the other corners as well. .

Step 2 : Fold up the edges of the paper to form a box, as shown in Figure.
Since you are required to make an open box, you do not have to make a lid. And since you have started with a square sheet of paper, your box will have a square base.

Investigation 1

a. Suppose you cut out a square of side 1 cm from each corner of your sheet of side 24 cm, what will be the height of your box? What will be the length of its base? Calculate the volume of the box.
b. Now suppose you cut out a square of side 2 cm from each corner, what will be the volume of your box now?
c. Find a formula for calculating the volume of the box in terms of the length of a side of the square cut out from each corner of the original sheet.
d. Calculate the volume of the boxes obtained by cutting squares of side 3 cm, 4 cm, 5 cm,..., 9 cm and 10 cm respectively from the original sheet. Tabulate your answers in the given table and answer the questions that follow.

Side of square cut from each corner (cm) 1 2 3 4 5 6 7 8 9 10
Height of box (cm)
Length of base (cm)
Width of base (cm)
Volume of box (cm³)
i. What is the largest volume? .
ii. What size of squares cut out gives the largest volume?
iii. When will the volume of the box be 0? .

Investigation 2

Take a rectangular sheet of chart paper of length 45 cm and width 24 cm. Make an open box from it by cutting out a square from each corner and folding up the edges. Note that your box will have a rectangular base, as your original sheet is rectangular.

a. Suppose you cut out a square of side 1 cm from each corner. What will be the height of the box?
What will be the dimensions of its base? Calculate the volume of the box.
b. Find a formula for calculating the volume of the box in terms of the length of a side of the square
cut out from each corner of the original sheet.
c. Calculate the volume of the boxes obtained by cutting squares of side 2 cm, 3 cm, 4 cm, 5 cm,...,
9 cm and 10 cm respectively from the original sheet. Tabulate your answers in the given table and
answer the questions that follow.
Side of square cut from each corner (cm) 1 2 3 4 5 6 7 8 9 10
Height of box (cm)
Length of base (cm)
Width of base (cm)
Volume of box (cm3)
i. What is the largest volume?
ii. What size of squares cut out gives the largest volume?
iii. When will the volume of the box be 0?

HELP SHEET

Investigation 1

a. The height of the box, being equal to the length of the square cut out from each corner, will be 1 cm.
The length of the square base of the box will be 24 - (2 x 1) = 22 cm. The volume of the box will be 1 × (22)² = 484 cm³

b. If a square of side 2 cm is cut out from each corner of the original sheet, the volume of the box formed will be 2 × (20)² = 800 cm³

c. The formula for finding the volume of the box is V = x(24–2x)² where V is the volume of the box and x is the length of a side of the square cut out from each corner of the original sheet.

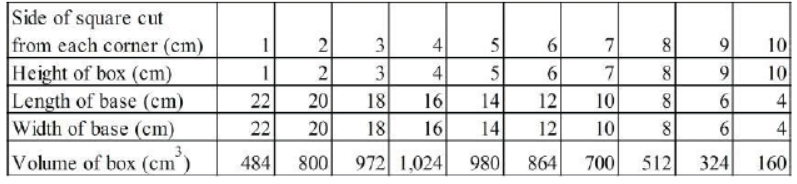

d.

i. The largest volume is 1,024 cm³.
ii. The largest volume is obtained when a square of side 4 cm is cut out from each corner of the original sheet.
iii. The volume of the box will be 0 if squares of side 0 cm each (i.e., no squares) or squares of side 12 cm each are cut out from the corners of the original sheet. In both these cases no box will be formed.

Investigation 2

a. The height of the box, being equal to the length of the square cut out from each corner, will be 1cm.
The base of the box will have a length of 45 - (2 x 1) = 43 cm and a width of 24 –(2 x 1) = 22cm.
The volume of the box will be 1x43 x 22 = 946 cm³

b. The formula for finding the volume of the box is V=x(45–2x)(24–2x) where V is the volume of the box and x is the length of a side of the square cut out from each corner of the original sheet.

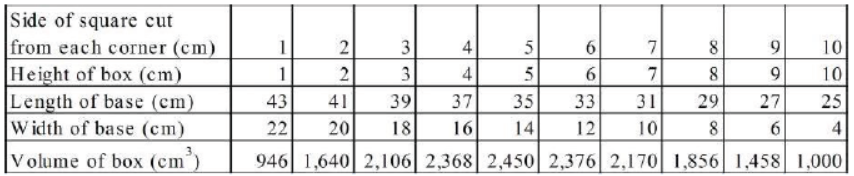

c.

i. The largest volume is 2,450 cm³.
ii. The largest volume is obtained when a square of side 5 cm is cut out from each corner of the original sheet.
iii. The volume of the box will be 0 if squares of side 0 cm each (i.e., no squares) or squares of side 12 cm each are cut out from the corners of the original sheet. In both these cases no box will be formed.
