CLASS X : CHAPTER - 11 CONSTRUCTIONS

IMPORTANT CONCEPTS

To construct a triangle similar to a given triangle as per given scale factor.

Example 1: Construct a triangle similar to a given triangle ABC with its sides equal to \( \frac{3}{4} \) of the corresponding sides of the triangle ABC (i.e., of scale factor \( \frac{3}{4} \)).

Steps of Construction:
1. Draw any ray BX making an acute angle with BC on the side opposite to the vertex A.
2. Locate 4 (the greater of 3 and 4 in \( \frac{3}{4} \)) points B₁, B₂, B₃ and B₄ on BX so that BB₁ = B₁B₂ = B₂B₃ = B₃B₄.
3. Join B₄C and draw a line through B₃ (the 3rd point, 3 being the smaller of 3 and 4 in \( \frac{3}{4} \)) parallel to B₄C to intersect BC at C′.
4. Draw a line through C′ parallel to the line CA to intersect BA at A′.
5. Then △A′BC′ is the required triangle.

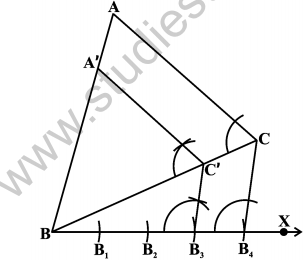

[Figure: Triangle ABC with B at the bottom left and C on the right. Ray BX runs along the base towards the right, with points B₁, B₂, B₃ and B₄ marked on it at equal spacing. The line B₄C is joined, a parallel line is drawn through B₃ meeting BC at C′, and a line through C′ parallel to CA meets BA at A′. The required triangle is A′BC′.]

Example 2: Construct a triangle similar to a given triangle ABC with its sides equal to \( \frac{5}{3} \) of the corresponding sides of the triangle ABC (i.e., of scale factor \( \frac{5}{3} \)).

Steps of Construction:
1. Draw any ray BX making an acute angle with BC on the side opposite to the vertex A.
2. Locate 5 points (the greater of 5 and 3 in \( \frac{5}{3} \)) B₁, B₂, B₃, B₄ and B₅ on BX so that BB₁ = B₁B₂ = B₂B₃ = B₃B₄ = B₄B₅.
3. Join B₃ (the 3rd point, 3 being the smaller of 3 and 5 in \( \frac{5}{3} \)) to C, and draw a line through B₅ parallel to B₃C, intersecting the extended line segment BC at C′.
4. Draw a line through C′ parallel to CA, intersecting the extended line segment BA at A′.
5. Then △A′BC′ is the required triangle.

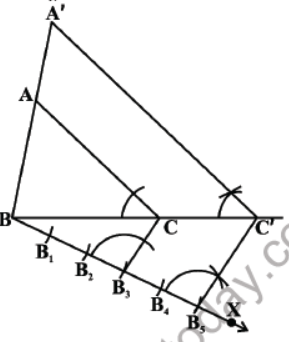

[Figure: Triangle ABC with the ray BX drawn from B, points B₁ to B₅ marked on BX, and the line B₃C joined. A line through B₅ parallel to B₃C meets the extended BC at C′, and a line through C′ parallel to CA meets the extended BA at A′. The required triangle is A′BC′, which is larger than triangle ABC.]

To construct the tangents to a circle from a point outside it.

Given: We are given a circle with centre O and a point P outside it. We have to construct two tangents from P to the circle.

Steps of Construction:
1. Join PO and draw the perpendicular bisector of it. Let M be the midpoint of PO.
2. Taking M as centre and PM or MO as radius, draw a circle. Let it intersect the given circle at the points A and B.
3. Join PA and PB.
4. Then PA and PB are the required two tangents.

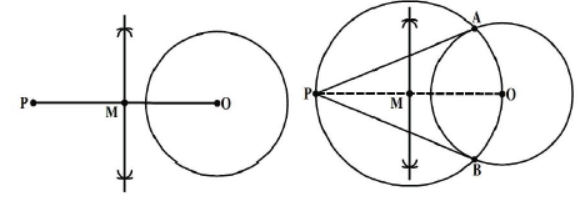

[Figure: Left, a point P outside a circle with centre O, the segment PO with its midpoint M and the perpendicular bisector through M. Right, a second circle with centre M and radius MO cuts the given circle at A and B, and the lines PA and PB are the two tangents from P.]

To construct a tangent to a circle at a given point when the centre of the circle is known.

Given: We have a circle with centre O and a point P anywhere on its circumference. We have to construct a tangent through P.

Steps of Construction:
1. Draw a circle with centre O and mark a point P anywhere on it. Join OP.
2. Draw a perpendicular line through the point P and name it XY.
3. XY is the required tangent to the given circle passing through P.

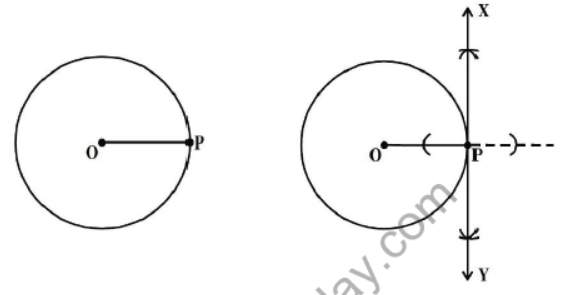

[Figure: Left, a circle with centre O and point P on its circumference, joined by the radius OP. Right, the same circle with the line XY drawn through P perpendicular to OP, with X above and Y below P. XY is the tangent at P.]
