ELECTRIC CELL
An electric cell is a device which converts chemical energy into electric energy.
The cell has two different metal plates – one is the positive terminal and the other is the negative terminal.
These plates are kept inside a chemical called electrolyte. The cell is a source of electric current. Electric current is the flow of electrons or charge.

ELECTRIC CIRCUIT
An electric circuit is the closed path along which electric current flows from the positive terminal to the negative terminal of the cell.
A circuit generally has:
(a) a source of electric current - a cell or battery.
(b) connecting wires for carrying current.
(c) a device which uses the electricity - a bulb etc.
(d) a key or a switch – This may be connected anywhere along the circuit to stop or allow the flow of current.

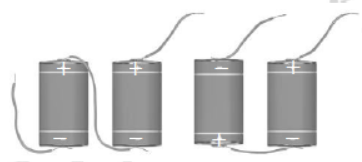

(A) Battery : The positive terminal of one cell is connected to the negative terminal of the next cell. Such a combination of two or more cells is called a battery. Many devices such as torches, transistors, toys, TV remote controls, use batteries.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a
Connecting two cells together to make a battery

(B) Bulb :
In the bulb there is a thin wire, called the filament, which glows when an electric current passes through it.
When the bulb gets fused, its filament is broken.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

(C) Electric switch :
An electric switch is a device that opens or closes an electric circuit.

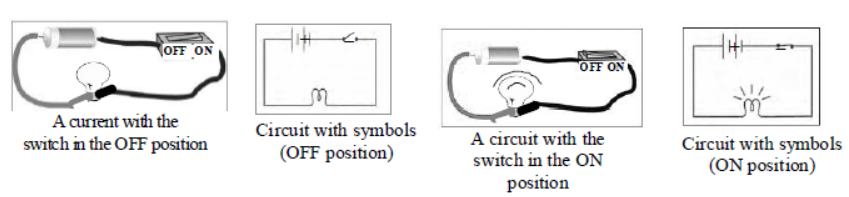

When the switch (key) K is closed, the circuit is complete; current flows through the circuit and the bulb glows.
When the switch (key) K is open, the circuit is not complete; current does not flow through the circuit and the bulb does not glow.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

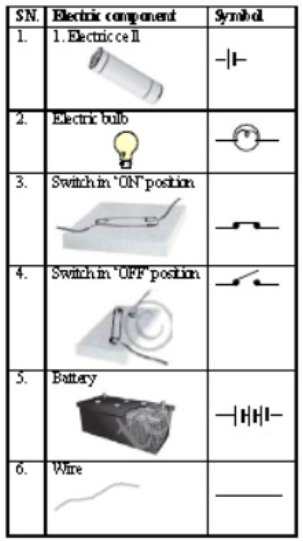

Some common electric components can be represented by symbols.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

CONDUCTORS AND INSULATORS
CONDUCTORS : The materials which allow electric current to pass through them.
Ex. All metals like Copper, Iron, Silver and Human body.
INSULATORS : The materials which do not allow electric current to pass through them.
Ex. Plastic, Wood, Rubber and Glass.

EFFECT OF ELECTRIC CURRENT

(A) HEATING EFFECT OF CURRENT :

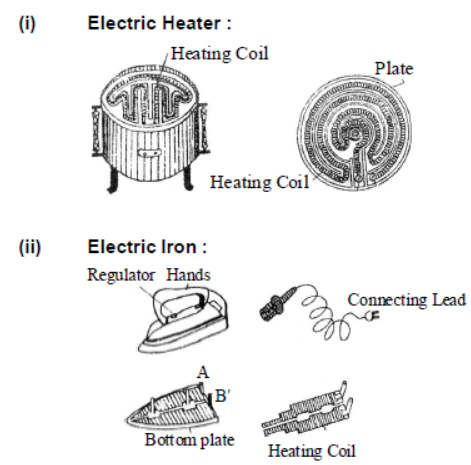

The wire which are not very good conductors gets hot when an electric current passes through it. This is the heating effect of the electric current.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a
The amount of heat produced in a wire depends on its material, length and thickness. Thus, for different requirements, the wires of different materials and different lengths and thickness are used.

(iii) Electric bulb :
The filament of an electric bulb gets heated to such a high temperature that it starts glowing.

(B) CHEMICAL EFFECT OF CURRENT (ELECTROPLATING)
The method of plating one type of over another by means of electricity is called electroplating.
Ex. To electroplate a stainless steel razor blade with copper.
Materials required : Glass beaker, copper sulphate solution, two pieces of connecting wire (50 cm long), a cell, stainless steel razor blade.

Method : Remove the insulation from the ends of both wires. Tie one end of a wire to the stainless steel razor blade and tape the other bare end to the negative terminal of the cell. Tape one end of the other wire to the positive terminal of the cell and dip its other end into the copper scrub the razor blade clean and dip it in the solution.
After electricity passes through the circuit for some time you will find a reddish-brown deposit on the blade.
This is the coating of copper.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

(C) MAGNETIC EFFECT OF CURRENT :
The needle of a compass is a tiny magnet, which points in north-south direction. When we bring a magnet close to it, the needle gets deflected. Similarly we can also seen that compass needle gets deflected when the current flows in a nearby wire. Hans Christian Oersted was the first person who noticed the deflection of compass needle every time the current was passed through the wire. So, when electric current passes through a wire, it behaves like a magnet. This is the magnetic effect of the electric current. In fact, an
electric current can be used to make magnets.

Factors which effect the strength of magnetic effect by current :
(i) Magnetic effect of current depends on number of turns.
(ii) Magnetic effect of current depends the value of current.
(iii) Magnetic effect of current depends on the nature of core inside the coil.

APPLICATION OF HEATING & MAGNETIC EFFECT OF CURRENT

Electric Fuse :
Wires made from some special materials melt quickly and break when large electric currents are passed through them. These wires are used for making electric fuses,(figure). In all buildings fuses are inserted in all electrical circuits. There is a maximum limit on the current which can safely flow through a circuit. If by accident the current exceeds this safe limit, the wires may become overheated and may cause fire. If a proper fuse is there in the circuit, it will blow off and break the circuit. A fuse is thus a safety device which
prevents damages to electrical circuits and possible fires.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

MCB :
These days Miniature circuit breakers (MCBs) are increasingly being used in place of fuses. These are switches which automatically turn off when current in a circuit exceeds the safe limit. You turn them on and the circuit is once again complete.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a

Electromagnet :

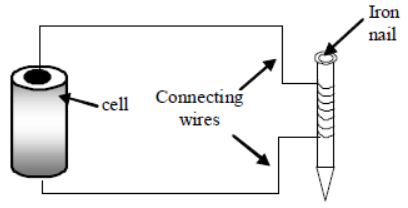

Wind the wire tightly around the nail in the form of a coil. Connect the free ends of the wire to the terminals of a cell through a switch as shown in Fig.
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a
The coil behaves like a magnet when electric current flows through it. When the electric current is switched off, the coil generally loses its magnetism. Such coils are called electromagnets. The electromagnets can be made very strong and can lift very heavy loads. The electromagnets are also used to separate magnetic material from the junk. Doctors use tiny electromagnets to take out small pieces of magnetic material that have accidentally fallen in the eye. Many toys also have electromagnets inside them.

Electric bell :

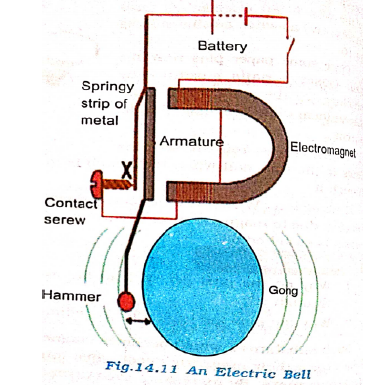

It consists of a coil of wire wound on an iron piece. The coil acts as an electromagnet. An iron strip with a hammer at one end is kept close to the electromagnet. There is a contact screw near the iron strip.
When the iron strip is in contact with the screw, the current flows through the coil which becomes an electromagnet. It, then,
cbse-class-7-science-electric-current-and-its-effects-worksheet-set-a
pulls the iron strip. In the process, the hammer at the end of the strip strikes the gong of the bell to produce a sound. However, when the electromagnet pulls the iron strip, it also breaks the circuit & the current through the coil stops flowing. The coil is no longer an electromagnet & it no longer attracts the iron strip.
The iron strip comes back to its original position and touches the contact screw again. This completes the circuit. The current flows in the coil and the hammer strikes the gong again.
This process is repeated in quick succession. The hammer strikes the gong every time the circuit is completed. This is how the bell rings.

Question. The process by which chemical change takes place in a substance when electric current is passed through it is called -
(A) electrolysis
(B) electroplating
(C) electrodes
(D) thermionic conduction

Answer: A

Question. Electric bell works on the principle of -
(A) chemical effect of current
(B) magnetic effect of current
(C) heating effect of current
(D) all of the above

Answer: B

Question. An electrolyte is -
(A) a light electric cell
(B) a liquid that conducts electricity
(C) a metal
(D) non of the above

Answer: B

Question. To make a battery of 9 volts. how many 1.5 V cells are needed?
(A) 6
(B) 5
(C) 4
(D) 3

Answer: A

Question. Cathode is -
(A) positively charged electrode
(B) negatively charged electrode
(C) a positively charged ion formed in the electrolyte
(D) a negatively charged ion formed in the electrolyte.

Answer: B

Question. Which is the false statement ?
(A) Fuse wire has low resistance and melting point
(B) Heater wire has high specific resistance and melting point
(C) In these day M.C.B. is used in place of fuse wire
(D) Current does not flow in close circuit.

Answer: D

Question. An electric current produces -
(A) Magnetic effect
(B) Chemical effect
(C) Heating effect
(D) All of the above

Answer: D

Question. An electric bell when ringing-
(A) carries no electric current
(B) carries continuous current
(C) carries intermittent current
(D) has a permanent magnet to make it work

Answer: C

Question. A moving charge produces -
(A) neither electric field nor magnetic field
(B) electrostatic field only
(C) magnetic field only
(D) both magnetic and electrostatic field

Answer: D

Question. Which is the best conductor ?
(A) carbon
(B) Copper
(C) Iron
(D) Aluminium

Answer: B

Question. Nichrome is used for making
(A) the filaments of bulbs
(B) fuse wires
(C) heater elements
(D) coils for electromagnets

Answer: A

Question. Strength of an electromagnet increases by -
(A) increasing the number of turns of the coil
(B) increasing the current flowing through the coil
(C) using soft iron core for the coil
(D) all of the above

Answer: D

Question. The magnitude of a current flowing through a device depends
(A) only on the voltage across it
(B) only on its resistance
(C) on its resistance and the voltage across it
(D) none of these

Answer: C

ACTIVITY- 1 : To make an electrc circuit. `


Question 1- How many terminals are there in an electric cell? Name them.
Answer- Two i.e. positive and negative terminals.

Question 2- What is the role of switch in the electric circuit?
Answer- Switch closes (ON) and open (OFF) the electric circuit.

ACTIVITY- 2 : Heating effects of electric current

Question 1- When switch is in ‘ON’ position then bulb ………… and feels …………
Answer- Glows, hot.

ACTIVITY- 3 : Heating effects of current in a wire. `

Question 1- When switch is ‘OFF’ the wire feels hot. (True/False)
Answer- False.

Question 2- When swtch is ‘ON’ the wire feels cold. (True/False)
Answer- False.

Question 3- If you take any other wire, will you feel the same effect?
Answer- Due to high resistivity of nichrome, it shows large heating effect. Any other wire will produce low heat or it may melt.

ACTIVITY- 4 : Magnetic effects of electric current

Question 1- Why a magnetic needle points in NS direction when there is no magnetic substance near it?
Answer- Because earth behaves like a magnet.

Question 2- Why magnetic needle gets deflected when a bar magnet is brought near it?
Answer- Because magnetic field of bar magnet, exert force on magnetic needle.

Question 3- Why a magnetic needle gets deflected when current is switched ON?
Answer- When current is switched ON, a magnetic field is produced around the wire.

ACTIVITY- 5 : To make an electromagnet

Question 1- Why do the pins get stick to the iron nail when current is passed through it?
Answer- Because on passing electric current, the coil along with iron nail becomes magnet.

Question 2- Why the pins fall back after sometime when current is switched off?
Answer- Because coil along with iron nail gets demagnetized when current is switched off.

EXERCISE

Question 1- Fill In The Blanks :

(i). Shorter line in the symbol for cell represents negative terminal.
(ii). Combination of two or more cells is called battery.
(iii). When key is in ON position current flows through the circuit.
(iv). In a battery positve terminal of one cell is connected to negative terminal of next cell.
(v). Electric heater works on the heating effect of current.

Question 2- Write True Or False.

(i). To make a battery of two cells, positive terminal of one cell is connected to negative terminal of another.(True)
(ii). Electric iron works on the basis of heating effect of current. (True)
(iii). Magnetic crane is based on magnetic effect of current. (True)
(iv). When current flows in the circuit then circuit is called open circuit. (False)
(v). An electric bell works on the principle of electromagnet. (True)

Question 3- Match The Column:-

7th.sci.eng.july.aug.new 7

Question 4. Choose One Option For The Follwing.

(i). Which electric appliance is not based on heating effect of current :
a) Electric toaster
b) Loudspeaker (✓)
c) Heater
d) Electric iron

(ii). Which of these devices are not based on magnetic effect of current :
a) Room heater (✓)
b) Magnetic crane
c) Electric bell
d) Loudspeaker

(iii). The amount of heat produced in wire depends on :
a) Nature of material
b) Length
c) Thickness
d) All of these (✓)

(iv). The wire used in the bulb is called :
a) Element
b) Spring
c) Filament (✓)
d) Component

(v). An electric bell consists of :
a) Gong
b) Hammer
c) Electromagnet
d) All of these (✓)

Question 5- Very Short Answer Type Questions.

(i) What is an electromagnet? How does it work?
Answer- The substances which become magnet when current passes through them and losses their magnetic effect when current is switched off, are called electromagnets. These are based on magnetic effect of electric current.

(ii) What is a magnetic crane? How does it work?
Answer- Magnetic crane is based on magnetic effect of electric current. It has an electromagnet with which we can pick big containers, separate magnetic materials from garbage.

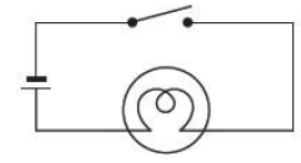

(iii) Draw an electric circuit with one battery, one bulb and one switch in open position.
Answer-
7th.sci.eng.july.aug.new 8

Question 6- Short Answer Type Questions.

(a) Define the following terms :
(i) An electric cell, (ii) A battery, (iii) Electric circuit, (iv) Open circuit, (v) Closed circuit.
Answer- (i) An electric cell- It is a source of electric current.
(ii) A battery- It is the combination of two or more than two cells.
(iii) Electric circuit- It is a closed path consists of electric appliances through which electric current flows.
(iv) Open circuit- It is the circuit through which current is not flowing.
(v) Closed circuit- It is the circuit through which current is flowing.

Question 7- Long Answer Type Questions.

(i) Explain the principle, construction and working of an electric bell using suitable diagram.
Answer- Principle- Electric bell works on the principle of electromagnet.
Construction- It has main three parts – Electromagnet, gong and hammer.
Working- When we switch on the bell, current flows through the coil via contact screw and coil becomes electromagnet. It attracts the iron strips towards it and hammer strikes the gong to produce sound. In this process circuit break as hammer loss the contact with contact screw. So coil no longer remains electromagnet and do not attract hammer. This process continues again and again and the bell keeps ringing.

7th.sci.eng.july.aug.new 9



(ii) What is an electric fuse? How does it work? Why is it essential in an electric supply?
Answer- Electric fuse is a wire made of special materials which melt quickly and break when a large current is passed through it because of short circuit or overloading. Hence it breaks the electric circuit and prevent electric fires and accidents. It also prevents damage to electric appliances.


More question

Q1.Fill in the blanks :

1. A combination of two or more cells is called a _____________ .

2. The working of a an electric bulb, electric iron and the fuse is based on the__________________ effect of current.

3. The filament of an electric bulb is made of ______________ and has______________ (high/low) melting point.

4. Instead of electric bulbs, it is advisable to use ______________ and__________________ , in order to reduce wastage.

5. __________ is a safety device which prevents fires and damage to electrical Appliances.

6. A current carrying coil wrapped around a piece of iron is called an __________.

7. ________________ performed experiments to prove the magnetic effect of current.

8. _________________ and _____________ are devices which have electromagnets in them.

Q2. Draw the symbols for the following:
a) A cell            d) Switch in ON position
b) A battery      e) Switch in OFF position
c) A bulb           f) Connecting wires

Q3. Draw a circuit diagram to show how you will connect a battery of three cells toan electric bulb through a switch.

Q4. Choose the correct option:

a) If a circuit is open:
i) the bulb glows
ii) the bulb does not glow
iii) the bulb flickers
iv) none of these

b) Electric bulb converts electrical energy into:
i) sound energy
ii) magnetic energy
iii) light energy
iv) chemical energy

c) Which of the following appliances is based on the magnetic effect of current:
i) electric kettle
ii) electric bell
iii) electric iron
iv) electric oven

d) In an electric bell, which of these gets attracted to the electromagnet?
i) the hammer
ii) the soft iron strip
iii) the screw
iv) none of these

Q5. What happens during a short circuit ? Explain how it can be prevented.

Q6. Anu and her friends visited their neighbourhood and encouraged them to use CFL instead of bulbs. What values do they want to be inculcated?

Q7.Describe an experiment to show:
a) The effect of current on a compass needle.
b) How you can make an electromagnet.

Q8. List any four uses of electromagnets.

Q9. Rohanmade four electromagnets A, B, C, and D with 20, 40, 60 and 80 turns.
He connected them one by one to a battery of two cells and brought them near a box of all-pins. Which electromagnet will attract the maximum pins and why?

Q10. Describe the construction and working of an electric bell.

I Fill in the blanks :

1. A thin wire in the bulb that glows when an electric current passes through it is called the ____________________.

2. When the bulb gets _______________, its filament is broken.

3. The coil of wire in an electric heater is known as ________________.

4. The amount of heat produced in a wire depends on its, ______________, ________________ and __________________.

5. When an electric current flows through a wire, it behaves like a _________________.

6. The ___________of an electric bell acts as an electromagnet in its working.

II State whether the following statements are True or False :

1. When the electric current is switched off, the coil generally loses its magnetism.

2. The wires used for making electric circuits do not normally become hot.

3. The filament of an electric bulb never gets heated.

4. In a battery, the electric cells are always placed one after the other.

5. Connecting many devices in a single socket does not affect the flow of current in a circuit.

6. Wear and tear of insulated wires can cause short circuits.

7. CFLs consume more electricity than ordinary bulbs.

III Name the following :

1. The name of the scientist who first noticed the magnetic effect of current.

2. The switches being used in place of fuses.

3. A diagram made using symbols of electric components.

4. The mark of safety necessary on electrical appliances.

IV Define :

1. Battery

2. Electromagnet

3. Fuse

Chapter 06 Physical and Chemical Changes
CBSE Class 7 Science Physical And Chemical Change Worksheet
Chapter 07 Weather Climate and Adaptations of Animals to Climate
CBSE Class 7 Science Weather Climate And Adaptations Worksheet
Chapter 11 Transportation in Animals and Plants
CBSE Class 7 Science Transportation In Animals And Plants Worksheet
Inventors Challenge Worksheets for Class 7 Science
CBSE Class 7 Science Inventors Challenge Worksheet
Social and Political Life II Chapter 07 Markets Around Us
CBSE Class 7 Science Markets Around Us Worksheet

More Study Material

CBSE Class 7 Science Chapter 14 Electric Current and its Effects Worksheet

We hope students liked the above worksheet for Chapter 14 Electric Current and its Effects designed as per the latest syllabus for Class 7 Science released by CBSE. Students of Class 7 should download in Pdf format and practice the questions and solutions given in the above worksheet for Class 7 Science on a daily basis. All the latest worksheets with answers have been developed for Science by referring to the most important and regularly asked topics that the students should learn and practice to get better scores in their class tests and examinations. Studiestoday is the best portal for Class 7 students to get all the latest study material free of cost.

Worksheet for Science CBSE Class 7 Chapter 14 Electric Current and its Effects

Expert teachers of studiestoday have referred to the NCERT book for Class 7 Science to develop the Science Class 7 worksheet. If you download the practice worksheet for one chapter daily, you will get higher and better marks in Class 7 exams this year as you will have stronger concepts. Daily questions practice of Science worksheet and its study material will help students to have a stronger understanding of all concepts and also make them experts on all scoring topics. You can easily download and save all revision worksheet for Class 7 Science also from www.studiestoday.com without paying anything in Pdf format. After solving the questions given in the worksheet which have been developed as per the latest course books also refer to the NCERT solutions for Class 7 Science designed by our teachers

Chapter 14 Electric Current and its Effects worksheet Science CBSE Class 7

All worksheets given above for Class 7 Science have been made as per the latest syllabus and books issued for the current academic year. The students of Class 7 can be rest assured that the answers have been also provided by our teachers for all worksheet of Science so that you are able to solve the questions and then compare your answers with the solutions provided by us. We have also provided a lot of MCQ questions for Class 7 Science in the worksheet so that you can solve questions relating to all topics given in each chapter. All study material for Class 7 Science students have been given on studiestoday.

Chapter 14 Electric Current and its Effects CBSE Class 7 Science Worksheet

Regular worksheet practice helps to gain more practice in solving questions to obtain a more comprehensive understanding of Chapter 14 Electric Current and its Effects concepts. Worksheets play an important role in developing an understanding of Chapter 14 Electric Current and its Effects in CBSE Class 7. Students can download and save or print all the worksheets, printable assignments, and practice sheets of the above chapter in Class 7 Science in Pdf format from studiestoday. You can print or read them online on your computer or mobile or any other device. After solving these you should also refer to Class 7 Science MCQ Test for the same chapter.

Worksheet for CBSE Science Class 7 Chapter 14 Electric Current and its Effects

CBSE Class 7 Science best textbooks have been used for writing the problems given in the above worksheet. If you have tests coming up then you should revise all concepts relating to Chapter 14 Electric Current and its Effects and then take out a print of the above worksheet and attempt all problems. We have also provided a lot of other Worksheets for Class 7 Science which you can use to further make yourself better in Science

Where can I download latest CBSE Printable worksheets for Class 7 Science Chapter 14 Electric Current and its Effects

You can download the CBSE Printable worksheets for Class 7 Science Chapter 14 Electric Current and its Effects for latest session from StudiesToday.com

Can I download the Printable worksheets of Chapter 14 Electric Current and its Effects Class 7 Science in Pdf

Yes, you can click on the links above and download Printable worksheets in PDFs for Chapter 14 Electric Current and its Effects Class 7 for Science

Are the Class 7 Science Chapter 14 Electric Current and its Effects Printable worksheets available for the latest session

Yes, the Printable worksheets issued for Class 7 Science Chapter 14 Electric Current and its Effects have been made available here for latest academic session

How can I download the Class 7 Science Chapter 14 Electric Current and its Effects Printable worksheets

You can easily access the links above and download the Class 7 Printable worksheets Science Chapter 14 Electric Current and its Effects for each chapter

Is there any charge for the Printable worksheets for Class 7 Science Chapter 14 Electric Current and its Effects

There is no charge for the Printable worksheets for Class 7 CBSE Science Chapter 14 Electric Current and its Effects you can download everything free

How can I improve my scores by solving questions given in Printable worksheets in Class 7 Science Chapter 14 Electric Current and its Effects

Regular revision of practice worksheets given on studiestoday for Class 7 subject Science Chapter 14 Electric Current and its Effects can help you to score better marks in exams

Are there any websites that offer free test sheets for Class 7 Science Chapter 14 Electric Current and its Effects

Yes, studiestoday.com provides all latest NCERT Chapter 14 Electric Current and its Effects Class 7 Science test sheets with answers based on the latest books for the current academic session

Can test papers for Class 7 Science Chapter 14 Electric Current and its Effects be accessed on mobile devices

Yes, studiestoday provides worksheets in Pdf for Chapter 14 Electric Current and its Effects Class 7 Science in mobile-friendly format and can be accessed on smartphones and tablets.

Are worksheets for Chapter 14 Electric Current and its Effects Class 7 Science available in multiple languages

Yes, worksheets for Chapter 14 Electric Current and its Effects Class 7 Science are available in multiple languages, including English, Hindi
