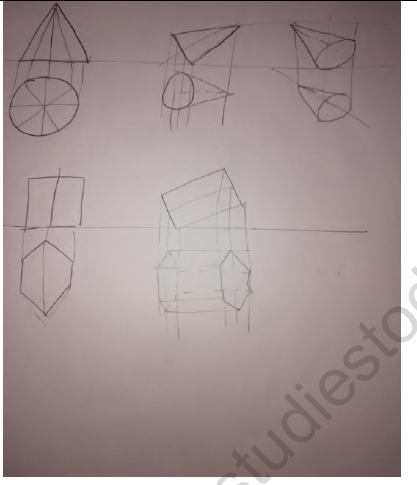

1. A right regular cone of base diameter 50mm and height 65 mm rests on its base on HP. The axis of the cone is inclined at 45 to HP and the top view of the axis is inclined at 30 to VP. Draw its orthographic projections.

2. A square prism (side 40 mm and height 80 mm) is resting on HP on one of its base edges. The rectangular face containing the resting edge is inclined at 60 to HP. Draw its orthographic projection


VALUE POINTS
