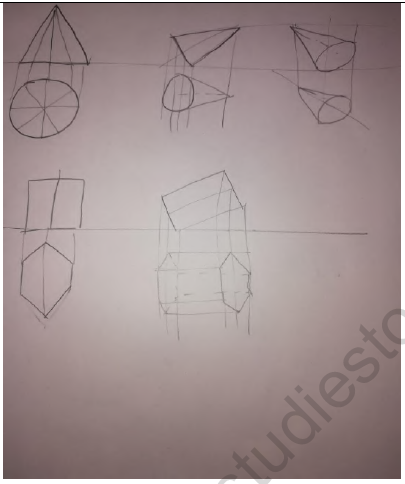

1. A cone (base diameter 50 mm and height 65 mm) is resting on HP on its base. The axis of the cone is inclined at 30 to HP and 45 to VP. Draw its orthographic projection.

2. A hexagonal prism (base= 30mm, height 60 mm) is resting on one of its corners in HP. The longer edge containing the resting corner is inclined at 45 to HP. Draw its projections.
