CBSE Class 10 Physics Electricity Worksheet Set D

Read and download free pdf of CBSE Class 10 Physics Electricity Worksheet Set D. Download printable Science Class 10 Worksheets in pdf format, CBSE Class 10 Science Chapter 12 Electricity Worksheet has been prepared as per the latest syllabus and exam pattern issued by CBSE, NCERT and KVS. Also download free pdf Science Class 10 Assignments and practice them daily to get better marks in tests and exams for Class 10. Free chapter wise worksheets with answers have been designed by Class 10 teachers as per latest examination pattern

Chapter 12 Electricity Science Worksheet for Class 10

Class 10 Science students should refer to the following printable worksheet in Pdf in Class 10. This test paper with questions and solutions for Class 10 Science will be very useful for tests and exams and help you to score better marks

Class 10 Science Chapter 12 Electricity Worksheet Pdf



CHAPTER – 1 (ELECTRICITY)

Short Answer Type Questions :

Question. What is electrical resistivity of a material? What is its unit? Describe an experiment to study the factors on which the resistance of conducting wire depends.
Answer : Resistivity quantifies the property of a conducting material due to which it opposes the flow of current. Electrical resistivity is also known as resistivity, specific electrical resistance, or volume resistivity.
The the SI unit of resistivity is Ωm.
CBSE Class 10 Physics Electricity Worksheet Set D_1
Take an ammeter, a cell, plug key, nichrome wire, wires of other metals, etc. Complete the circuit; as shown in the diagram.
Use nichrome wire of a particular length in the first case. Replace this with a nichrome wire of different length. Repeat the step with a third nichrome wire of different thickness. Finally, use a copper wire instead of nichrome wire.
Now replace the wire by a thicker nichrome wire, of the same length l [marked (3)]. A thicker wire has a larger cross-sectional area. Again note down the current through the circuit.
It is observed that resistance varies when the conducting material is changed. Resistance of the nichrome wire increases when its length is increased. Resistance of nichrome wire decreases when its thickness, i.e. area of cross-section is increased.
It can be said that resistance depends on the material, length and thickness of the conducting wire.

Question. A child has drawn the electric circuit to study ohm’s law as shown in following figure. His/Her teacher told that the circuit diagram needs correction. Study the circuit diagram and redraw it after making all corrections
Answer : The ammeter is connected in parallel and voltmeter is connected in series. While voltmeter is always connected in parallel in a circuit. Thus, the correct diagram is as follows.
CBSE Class 10 Physics Electricity Worksheet Set D_2

Question. Should the resistance of an ammeter be low or high? Give reason.
Answer : Ideally the resistance of an ammeter should be zero, but it is not possible, therefore, resistance of an ammeter is almost negligible. If it is high or low, it will affect the electric current flowing through the circuit.

Question. B1, B2 and B3 are three identical bulbs connected as shown in this figure. When all the three bulbs glow, a current of 3A is recorded by the ammeter A.
CBSE Class 10 Physics Electricity Worksheet Set D_3
(i) What happens to the glow of the other two bulbs when the bulb B1 gets fused?
(ii) What happens to the reading of A1, A2, A3 and A when the bulb B2 gets fused?
Answer : (i) Because there is no division of voltage in parallel circuit, thus glow of other two bulbs remain same.
(ii) Since, the total electric current is equal to the sum of electric current through each of the electrical components.
As all the three bulbs are identical, thus electric current draws from each of the individual bulb will be same.
The electric current through the electric circuit is equal to 3A when all the three bubs are functioning.
Thus, after getting fuse of B2, the total electric current through the circuit will be equal to 2A.
Therefore,
A will show 2A
A1 will show 1A
And A3 will show 1A

Question. How will you conclude that the same potential difference (voltage) exists across three resistors connected in a parallel arrangement to a battery?
Answer : Take three resistors R1, R2 and R3, a battery, an ammeter, a voltmeter and some wires. Complete the circuit; as shown in the diagram.
CBSE Class 10 Physics Electricity Worksheet Set D_4
Measure potential difference when all the three resistors are connected in parallel.
Remove one of the resistors and measure the potential difference for remaining two resistors in parallel.
Remove the second resistor and measure the potential difference for the remaining resistor.
It is observed that the voltmeter shows same reading in all these conditions. This shows, that same potential difference exists across three resistors which are connected in parallel combination.

Question. Why is parallel arrangement used in domestic wiring?
Answer : Parallel arrangement used in domestic connection because:
There is no division of voltage among the electrical component, thus all works in better way.
Individual electrical components can be switched off or on without disturbing other.
Any other electrical component does not affected because of breaking down of any one.

Question. How will you infer with the help of an experiment that the same current flows through every part of the circuit containing three resistances in series connected to a battery?
Answer : Take three resistors R1, R2 and R3, a battery, an ammeter, a voltmeter and some wires. Complete the circuit; as shown in the diagram.
CBSE Class 10 Physics Electricity Worksheet Set D_5
Measure the electric current, using the ammeter as shown in the circuit diagram.
Now, connect the ammeter between R1 and R2 and measure the electric current.
Now, connect the ammeter between R2 and R3 and measure the electric current.
It is observed that the ammeter reading is same in all the three cases. This shows, that the same current flows through every part of a circuit in which resistances are connected in series.

Question. Draw a circuit diagram of an electric circuit containing a cell, a key, an ammeter, a resistor of 2 Ω in series with a combination of two resistors (4 Ω each) in parallel and a voltmeter across the parallel combination. Will the potential difference across the 2 Ω resistor be the same as that across the parallel combination of 4Ω resistors? Give reason.
Answer :
CBSE Class 10 Physics Electricity Worksheet Set D_6
The total effective resistance because of the parallel connection of two resistors of 4Ω:
Let the total effective resistance because of parallel connection = R
Thus,1R = 14Ω + 14Ω = 24Ω = 12Ω 1R = 14Ω + 14Ω = 24Ω = 12Ω
Therefore, R = 2Ω R = 2Ω
The potential difference divided in the electric circuit when resistors are connected in series. In the given condition, the total effective resistance of the parallel connection is equal to 2Ω. Therefore two resistors of 2Ω each are connected in series.
Therefore, the potential difference across the 2Ω resistor be the same as that across the parallel combination of 4Ω resistor.

Long Answer Type Questions :

Question. Find out the following in the electric circuit given in following figure.
CBSE Class 10 Physics Electricity Worksheet Set D_7
(a) Effective resistance of two 8 Ω resistors in the combination
(b) Current flowing through 4 Ω resistor
(c) Potential difference across 4 Ω resistance
(d) Power dissipated in 4 Ω resistor
(e) Difference in ammeter readings, if any.
Answer : (a) Let the total effective resistance in the combination = R
Therefore, 1R = 18Ω + 18Ω = 1 + 18Ω 1R = 18Ω + 18Ω = 1 + 18Ω = 28Ω = 14Ω = 28Ω = 14Ω
Thus, R = 4Ω R = 4Ω
Therefore, effective resistance = 4Ω
(b) Given, potential difference through the circuit, V = 8V
The total effective resistance of the circuit, R = resistance in series + effective resistance in parallel combination
⇒ R = 4Ω + 4Ω = 8Ω
Thus, electric current,I through the circuit = VR = VR
⇒ I = 8V 8Ω = 1 AI = 8V 8Ω = 1A
Since, there is no division of electric current in series combination,
thus, electric current through the 4Ω resistor = 1A
(c) Since there is no division of electric current, in the case of series connection.
Thus, electric current through the 4Ω resistor = 1A
Since, potential difference,V across the 4Ω resistor=IR
Therefore,V = 1A × 4Ω = 4V
(d) Electric current, I = 1A
Potential difference, through 4Ω resistor = 4V
Thus, power, P = V x I
⇒ P = 4V x 1A = 4 watt
Thus, power dissipated in 4Ω resistor = 4W
(e) Since resistors are connected in series, thus there is no difference in ammeter readings



1. a) Why is electricity more useful than other forms of energy?

   b) How is static electricity different from current electricity?

   c) What are conductors? Give examples.

   d) What are insulators? Give examples.

2. a) What constitutes an electric current?

   b) Name the SI unit of electric charge.

   c) Which is bigger – c coulomb of charge or a charge of an electron?

   d) How much is the charge on an electron? Can a charge less than this value exist?

  e) What is the number of electrons constituting one coulomb of charge?

3. a) Define electric current.

    b) Name the SI unit of current.

    c) Define one ampere.

    d) Is electric current a scalar of vector quantity?

4. a) What does an electric circuit mean?

   b) When does the current flow in an electric circuit?

   c) How can the current be kept continuous in a conductor?

   d) Which particles constitute current in a metallic conductor?

5. a) Define potential difference.

   b) Name the SI unit of potential difference.

   c) What is meant by saying that a potential difference between two points in 1volt?

   d) What is the relationship between work done, potential difference and charge moved?

ORAL QUESTIONS

1. Which unit is equivalent of joule / coulomb?

2. How does the resistance of a wire depend on its length?

3. How does the resistance of a wire depend on its area of cross – section?

4. When are resistors said to be connected in series?

5. When are resistors said to be connected in parallel?

6. Why is tungsten suitable for making the filament of a bulb?

7. Why is tungsten not used as a fuse wire?

8. Alloys are preferred over metals for making the heating elements of heaters. Why?

9. How is the direction of electric current related to the direction of flow of electrons in a wire?

10. Should the heating element of an electric iron be made of iron, silver or nichrome wire?

QUIZ – WHO AM I

1. I am equal to the charge carried by 6.25 x 1018 electrons.

2. I am the rate of flow of charge through any section of a conductor.

3. I am same as coulomb/second.

4. I am closed path along which electric charges can flow.

5. I am equal to the work done per unit charge from point to another.

6. I am same as joule/coulomb.

7. I oppose the flow of charges through any conductor.

8. I am same as volt/ampere.

9. I relate potential difference with current for a given resistance.

10. I am used to measure potential difference between two points of a circuit.

CBSE_Class_10_Physics_Electricity_1

Across                                                                                                                                                                       Down

7. Unit of electrical power, named after the Scottish inventor of the steam engine                       1. Elementary particle that carries a positive charge

8. a rotating machine that transforms electrical energy into mechanical energy                           2. Electromagnetic radiation in the wavelength

9. The kind of electricity you create by rubbing a balloon on your head                                            range including infrared, visible, ultraviolet, and X-rays

13. Atom or group of atoms that carries a positive or negative electric charge as a result            3. Device for making, breaking, or changing the

    of having lost or gained one or more electrons                                                                               connections in an electrical circuit

14. Emission of radiant energy in the form of waves or particles                                                  4. Flash produced by a discharge of atmospheric electricity

15. It transmits electricity, like copper                                                                                            5. Complete path of an electric current including

16. Opposition to the passage of an electric current                                                                          the source of electric energy

19. Elementary particle consisting of a charge of negative electricity                                          6. Inventor of the electric light bulb

20. Smallest particle of an element that can exist either                                                             10. Force acting on particles of matter, tending to draw them together

      alone or in combination                                                                                                         11. Electrical charge with more protons than electrons

21. Uncharged elementary particle                                                                                             12. Electrical charge with more electrons than protons

22. Electric potential or potential difference                                                                              15. Electrical flow through a conductor

                                                                                                                                                   17. Definite quantity of electricity

                                                                                                                                                   18. Unit of electrical resistance

CBSE_Class_10_Physics_Electricity_2

SUGGESTED PROJECT / ACTIVITIES

1. Make a study of electrical conductivity of different materials or components.
2. Study the factors on which the resistance of a conducting wire depends.
3. Show experimentally that current thought each resistor when connected in series is same.

SEMINAR

1. Why in domestic electric circuits, electric appliances are connected in parallel and not it series? Explain.
2. Precautions to be taken while handling electrical appliances.
3. Working of lightning conductor in tall buildings.
4. Describe the practical applications of heating effect of current.

ACTION PLAN
From newspapers find out the accidents caused by electricity of lightening and suggest some preventions to be taken.

HAVE FUN THROUGH RESEARCH
Surf the internet and write the life story of the great scientist Thomas Alva Edison who invented electric bulb.


CBSE Class 10 Physics Chapter 12 Electricity MCQs

Question. What is immaterial for an electric fuse wire?
(a) Its specific resistance
(b) Its radius
(c) Its length
(d) Current flowing through it
Answer. C

Question. The amount of heat produced in a conductor is
(a) directly proportional to the current flowing through it
(b) inversely proportional to the current flowing through it
(c) directly proportional to the square of the current flowing through it
(d) inversely proportional to the square of current flowing through it.
Answer. C

Question. Specific resistance is numerically equal to the resistance offered by
(a) 1 cm length of a conductor
(b) a conductor of unit cross-section
(c) 1 cm length of conductor of 1 cm2 of crosssection
Answer. C

Question. Calculate the length of aluminium wire of area of cross-section 1 mm2 whose resistance is 1.56 × 10–2 W. Given, resistivity of aluminium is 2.6 × 10–8 W m.
(a) 60 mm
(b) 60 cm
(c) 60 m
(d) 6 m
Answer. B

Question. If current through a resistance is increased by 100%, simultaneously reducing resistance value to 25%, the new power dissipated will be
(a) same
(b) increased by 100%
(c) decreased by 400%
(d) increased by 400%.
Answer. A

Question. Suppose five resistances, each of 10 ohm, are provided to you. You are free to get the desired value by combining them. The desired value will lie in between
(a) 2 ohm to 50 ohm
(b) 20 ohm to 40 ohm
(c) 12 ohm to 50 ohm
(d) 10 ohm to 60 ohm
Answer. A

Question. A current of 4.8 A is flowing in a conductor.
The number of electrons passing per second through the conductor will be
(a) 3 × 1020
(b) 76.8 × 1020
(c) 7.68 × 10–19
(d) 3 × 1019
Answer. D

Question. In order to distribute a high potential, we connect a number of resistors
(a) in series
(b) in parallel
(c) some in series and some in parallel
(d) It is not possible to distribute potential.
Answer. A



CBSE Class 10 Physics Chapter 12 Electricity Case Based MCQs

Case I : Read the passage given below and answer the following questions.

Two or more resistances are connected in series or in parallel or both, depending upon whether we want to increase or decrease the circuit resistance.


The two or more resistances are said to be connected in series if the current flowing through each resistor is same. The equivalent resistance in the series combination is given by
RS = R1 + R2 + R3

Question. When three resistors are connected in series with a battery of voltage V and voltage drop across resistors is V1, V2 and V3, which of the relation is correct?
(a) V = V1 = V2 = V3
(b) V = V1 + V2 + V3
(c) V1 + V2 + V3 = 3V
(d) V > V1 + V2 + V3
Answer. B

Question. When the three resistors each of resistance R ohm, connected in series, the equivalent resistance is
(a) R/2
(b) > R
(c) < R/2
(d) < R
Answer. B

Question. There is a wire of length 20 cm and having resistance 20 W cut into 4 equal pieces and then joined in series. The equivalent resistance is
(a) 20 W
(b) 4 W
(c) 5 W
(d) 10 W
Answer. A

Question. In the following circuit, find the equivalent resistance between A and B is (R = 2 W)


(a) 10 Ω
(b) 5 Ω
(c) 2 Ω
(d) 4 Ω
Answer. A

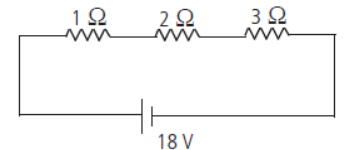

Question. In the given circuit, the current in each resistor is


(a) 3 A
(b) 6 A
(c) 9 A
(d) 18 A
Answer. A


CBSE Class 10 Physics Chapter 12 Electricity Assertion & Reasoning Based MCQs

For question numbers 46-55, a statement of assertion followed by a statement of reason is given. Choose the correct answer out of the following choices.
(a) Both assertion and reason are true, and reason is correct explanation of the assertion.
(b) Both assertion and reason are true, but reason is not the correct explanation of the assertion.
(c) Assertion is true, but reason is false.
(d) Assertion is false, but reason is true.

Question. Assertion : The connecting wires are made of copper.
Reason : The electrical conductivity of copper is high.
Answer. A

Question. Assertion : A bird perches on a high power line and nothing happens to the bird.
Reason : The circuit is incomplete for the bird sitting on high power line.
Answer. A

Question. Assertion : The coil of a heater is cut into two equal halves and only one of them is used into heater. The heater will now require half the time to produce the same amount of heat.
Reason : The heat produced is directly proportional to square of current.
Answer. B

Question. Assertion : A current carrying wire should be charged.
Reason : The current in a wire is due to flow of free electrons in a definite direction.
Answer. D

Question. Assertion : Electrons always move from a region of lower potential to a region of higher potential.
Reason : Electron has a negative charge.
Answer. A

Chapter 06 Life Processes
CBSE Class 10 Biology Excretion Set A
CBSE Class 10 Biology Excretion Set B
CBSE Class 10 Biology Excretion Set C
CBSE Class 10 Biology Heterotrophic Nutrition Worksheet Set A
CBSE Class 10 Biology Heterotrophic Nutrition Worksheet Set B
CBSE Class 10 Biology Life Processes Nutrition In Animals Worksheet
CBSE Class 10 Biology Life Processes Nutrition In Plants Worksheet
CBSE Class 10 Biology Life Processes Nutrition Worksheet Set A
CBSE Class 10 Biology Life Processes Nutrition Worksheet Set B
CBSE Class 10 Biology Life Processes Nutrition Worksheet Set C
CBSE Class 10 Biology Life Processes Nutrition Worksheet Set D
CBSE Class 10 Biology Life Processes Reference Materials Worksheet
CBSE Class 10 Biology Life Processes Respiration In Animals Worksheet
CBSE Class 10 Biology Life Processes Respiration Worksheet Set A
CBSE Class 10 Biology Life Processes Respiration Worksheet Set B
CBSE Class 10 Biology Life Processes Respiration Worksheet Set C
CBSE Class 10 Biology Life Processes Respiration Worksheet Set D
CBSE Class 10 Biology Life Processes Transporation Worksheet Set A
CBSE Class 10 Biology Life Processes Transporation Worksheet Set B
CBSE Class 10 Biology Life Processes Transporation Worksheet Set C
CBSE Class 10 Biology Life Processes Transporation Worksheet Set D
CBSE Class 10 Biology Life Processes Worksheet
CBSE Class 10 Biology Life Processes Worksheet Set A
CBSE Class 10 Biology Life Processes Worksheet Set B
CBSE Class 10 Biology Life Processes Worksheet Set C
CBSE Class 10 Biology Life Processes Worksheet Set D
CBSE Class 10 Biology Life Processes Worksheet Set E
Chapter 09 Heredity and Evolution
CBSE Class 10 Biology Heredity And Evolution Set D
Chapter 13 Magnetic Effects of Electric Current
CBSE Class 10 Physics Magnetic Effects of Electric Current Worksheet Set E

More Study Material

CBSE Class 10 Science Chapter 12 Electricity Worksheet

The above practice worksheet for Chapter 12 Electricity has been designed as per the current syllabus for Class 10 Science released by CBSE. Students studying in Class 10 can easily download in Pdf format and practice the questions and answers given in the above practice worksheet for Class 10 Science on a daily basis. All the latest practice worksheets with solutions have been developed for Science by referring to the most important and regularly asked topics that the students should learn and practice to get better scores in their examinations. Studiestoday is the best portal for Printable Worksheets for Class 10 Science students to get all the latest study material free of cost.

Worksheet for Science CBSE Class 10 Chapter 12 Electricity

Teachers of studiestoday have referred to the NCERT book for Class 10 Science to develop the Science Class 10 worksheet. If you download the practice worksheet for the above chapter daily, you will get better scores in Class 10 exams this year as you will have stronger concepts. Daily questions practice of Science printable worksheet and its study material will help students to have a stronger understanding of all concepts and also make them experts on all scoring topics. You can easily download and save all revision Worksheets for Class 10 Science also from www.studiestoday.com without paying anything in Pdf format. After solving the questions given in the practice sheet which have been developed as per the latest course books also refer to the NCERT solutions for Class 10 Science designed by our teachers

Chapter 12 Electricity worksheet Science CBSE Class 10

All practice paper sheet given above for Class 10 Science have been made as per the latest syllabus and books issued for the current academic year. The students of Class 10 can be assured that the answers have been also provided by our teachers for all test paper of Science so that you are able to solve the problems and then compare your answers with the solutions provided by us. We have also provided a lot of MCQ questions for Class 10 Science in the worksheet so that you can solve questions relating to all topics given in each chapter. All study material for Class 10 Science students have been given on studiestoday.

Chapter 12 Electricity CBSE Class 10 Science Worksheet

Regular printable worksheet practice helps to gain more practice in solving questions to obtain a more comprehensive understanding of Chapter 12 Electricity concepts. Practice worksheets play an important role in developing an understanding of Chapter 12 Electricity in CBSE Class 10. Students can download and save or print all the printable worksheets, assignments, and practice sheets of the above chapter in Class 10 Science in Pdf format from studiestoday. You can print or read them online on your computer or mobile or any other device. After solving these you should also refer to Class 10 Science MCQ Test for the same chapter.

Worksheet for CBSE Science Class 10 Chapter 12 Electricity

CBSE Class 10 Science best textbooks have been used for writing the problems given in the above worksheet. If you have tests coming up then you should revise all concepts relating to Chapter 12 Electricity and then take out a print of the above practice sheet and attempt all problems. We have also provided a lot of other Worksheets for Class 10 Science which you can use to further make yourself better in Science

Where can I download latest CBSE Practice worksheets for Class 10 Science Chapter 12 Electricity

You can download the CBSE Practice worksheets for Class 10 Science Chapter 12 Electricity for the latest session from StudiesToday.com

Can I download the Practice worksheets of Class 10 Science Chapter 12 Electricity in Pdf

Yes, you can click on the links above and download chapter-wise Practice worksheets in PDFs for Class 10 for Science Chapter 12 Electricity

Are the Class 10 Science Chapter 12 Electricity Practice worksheets available for the latest session

Yes, the Practice worksheets issued for Chapter 12 Electricity Class 10 Science have been made available here for the latest academic session

How can I download the Chapter 12 Electricity Class 10 Science Practice worksheets

You can easily access the links above and download the Class 10 Practice worksheets Science for Chapter 12 Electricity

Is there any charge for the Practice worksheets for Class 10 Science Chapter 12 Electricity

There is no charge for the Practice worksheets for Class 10 CBSE Science Chapter 12 Electricity you can download everything free

How can I improve my scores by solving questions given in Practice worksheets in Chapter 12 Electricity Class 10 Science

Regular revision of practice worksheets given on studiestoday for Class 10 subject Science Chapter 12 Electricity can help you to score better marks in exams

Are there any websites that offer free Practice test papers for Class 10 Science Chapter 12 Electricity

Yes, studiestoday.com provides all the latest Class 10 Science Chapter 12 Electricity test practice sheets with answers based on the latest books for the current academic session

Can test sheet papers for Chapter 12 Electricity Class 10 Science be accessed on mobile devices

Yes, studiestoday provides worksheets in Pdf for Chapter 12 Electricity Class 10 Science in mobile-friendly format and can be accessed on smartphones and tablets.

Are practice worksheets for Class 10 Science Chapter 12 Electricity available in multiple languages

Yes, practice worksheets for Class 10 Science Chapter 12 Electricity are available in multiple languages, including English, Hindi
